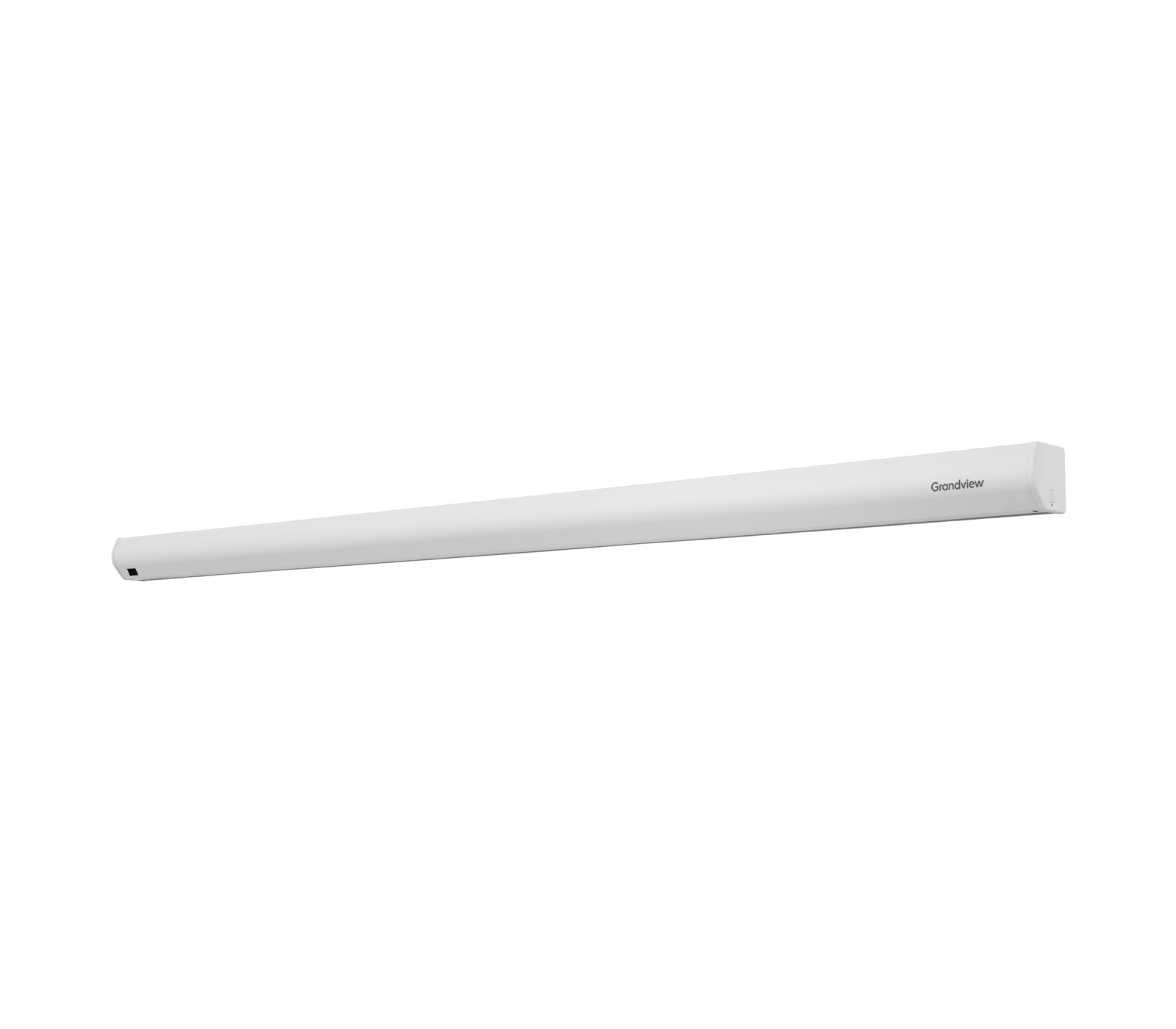

Legacy Series

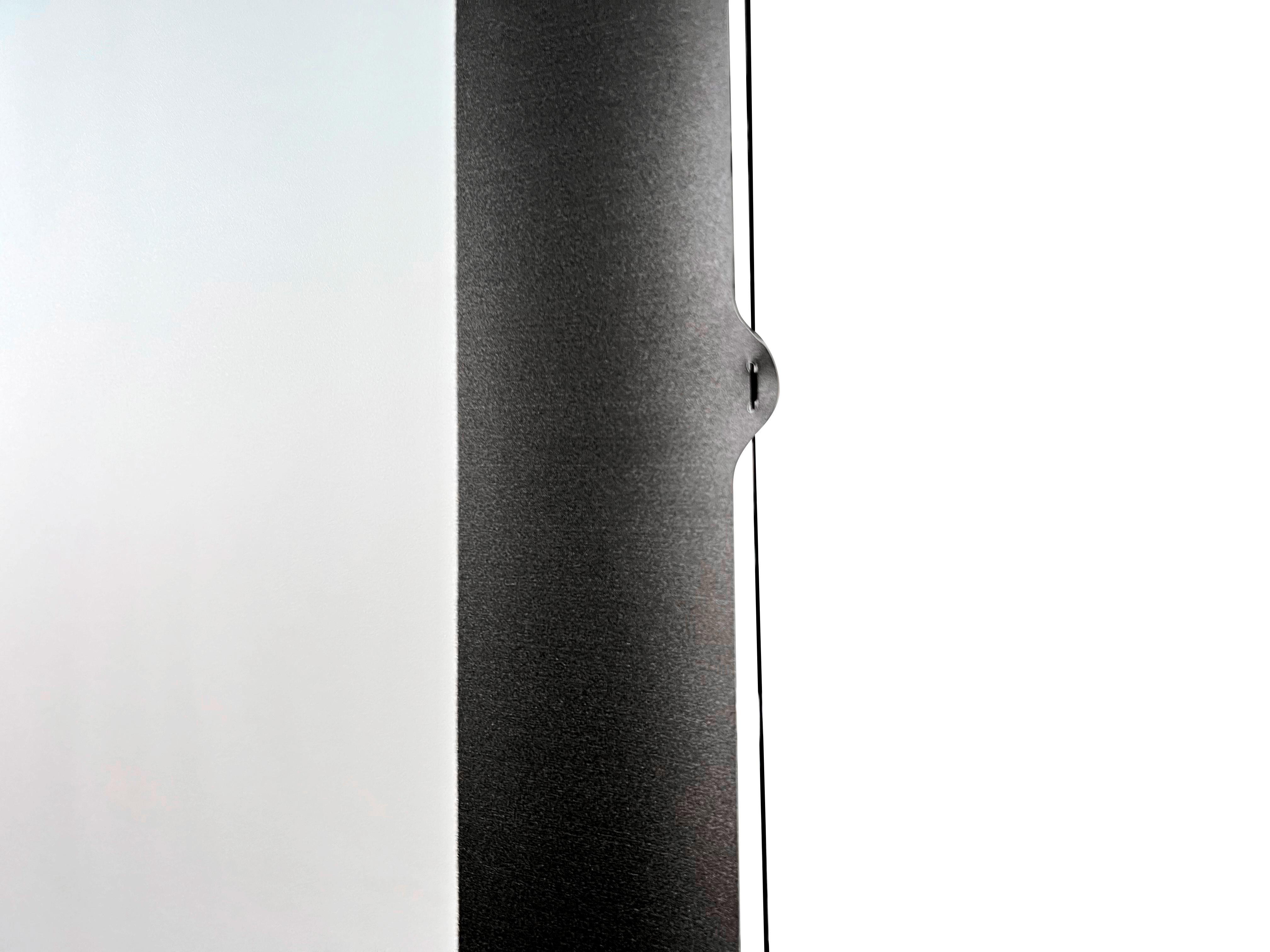

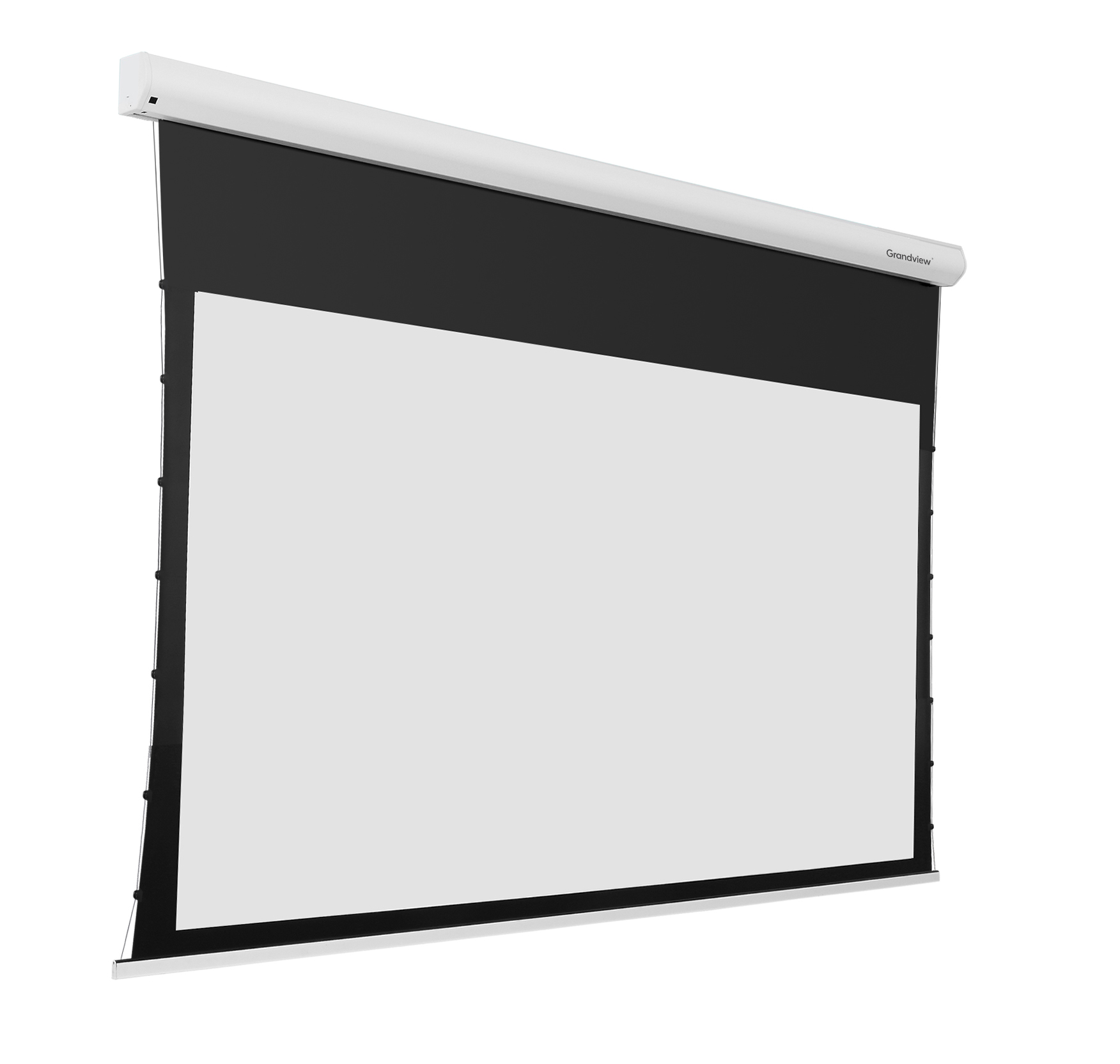

Tab-Tension Motorized Screen

  • The Fancy Series is designed based on the benchmarks of the Fantasy Series, which is similar in performance and options as the Cyber Series. New design elements include the screw-free endcap design, and patented Spring-Sealed Mechanism that ensures a smooth and enclosed finish. The Grandview Fancy Series is designed to seamlessly integrate with any type of decor.


  • • Sizes: Model A ( 150"-200" ) ; Model B ( 92"-150")
  • • Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount
  • • Control Options: RF/IR Remote Control ; Dry Contact , IP Control(LE-MP Model Only); Central Control etc.
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Standard Control Options

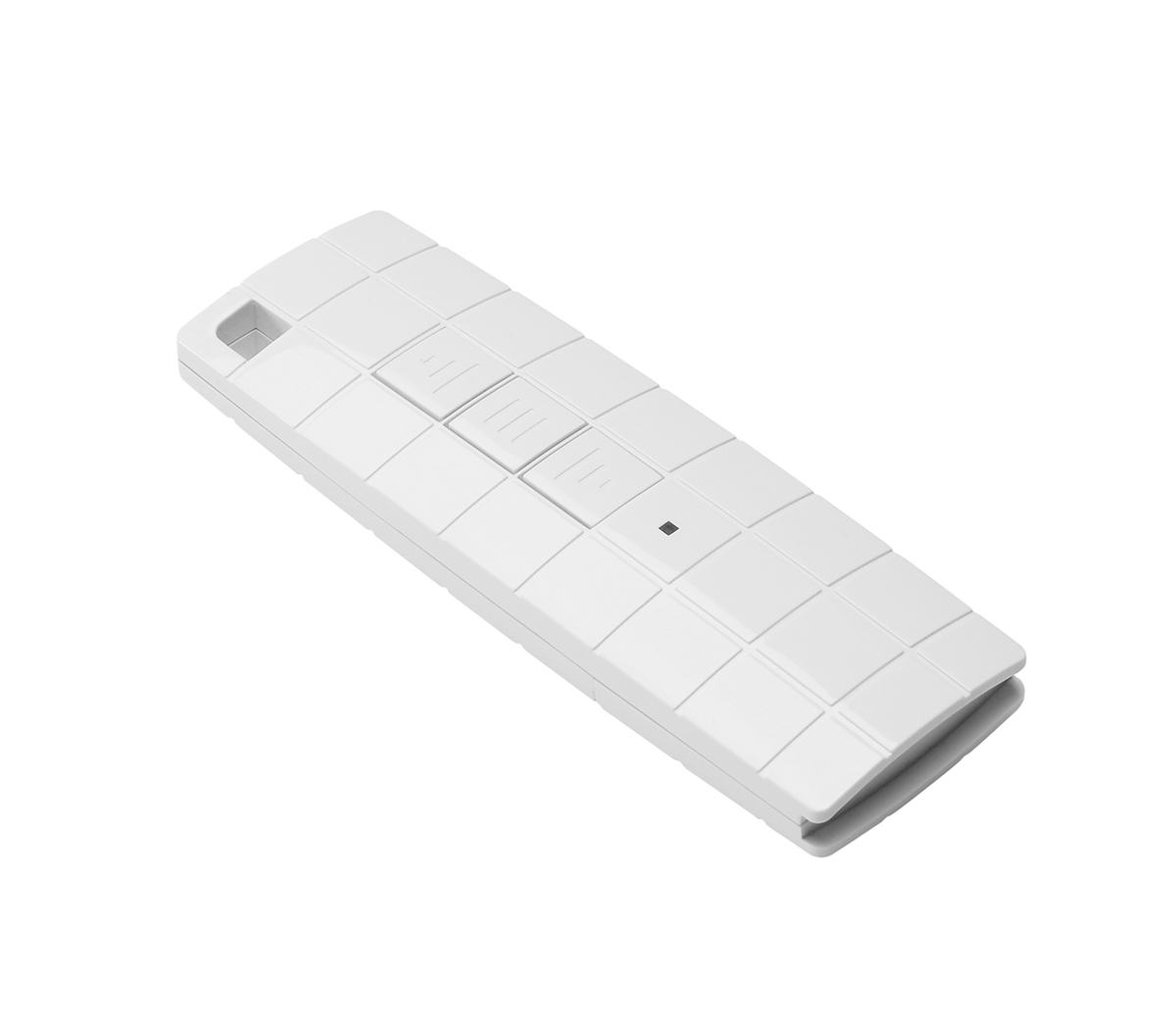

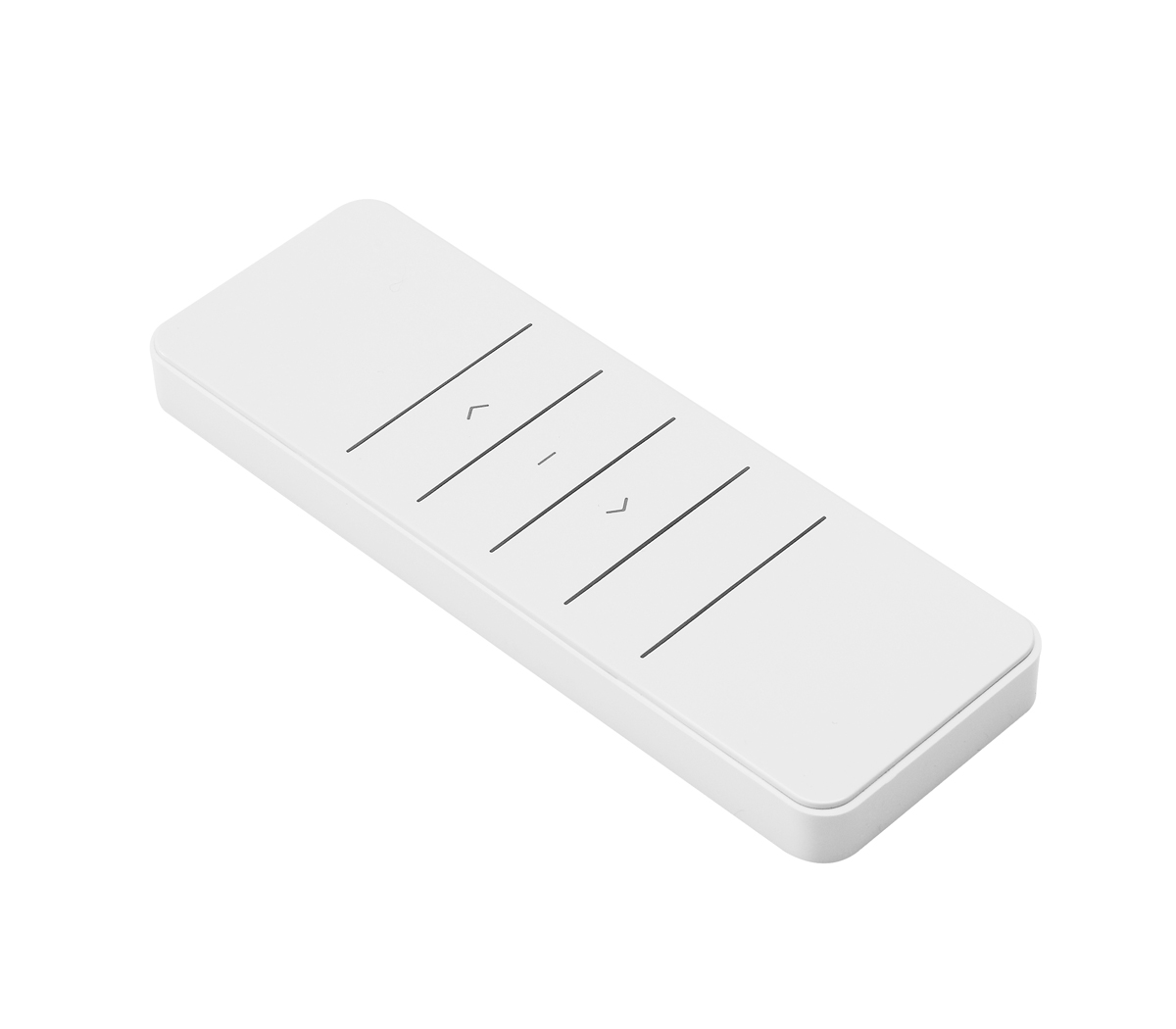

    • RF Remote Control
    • IR Remote Control

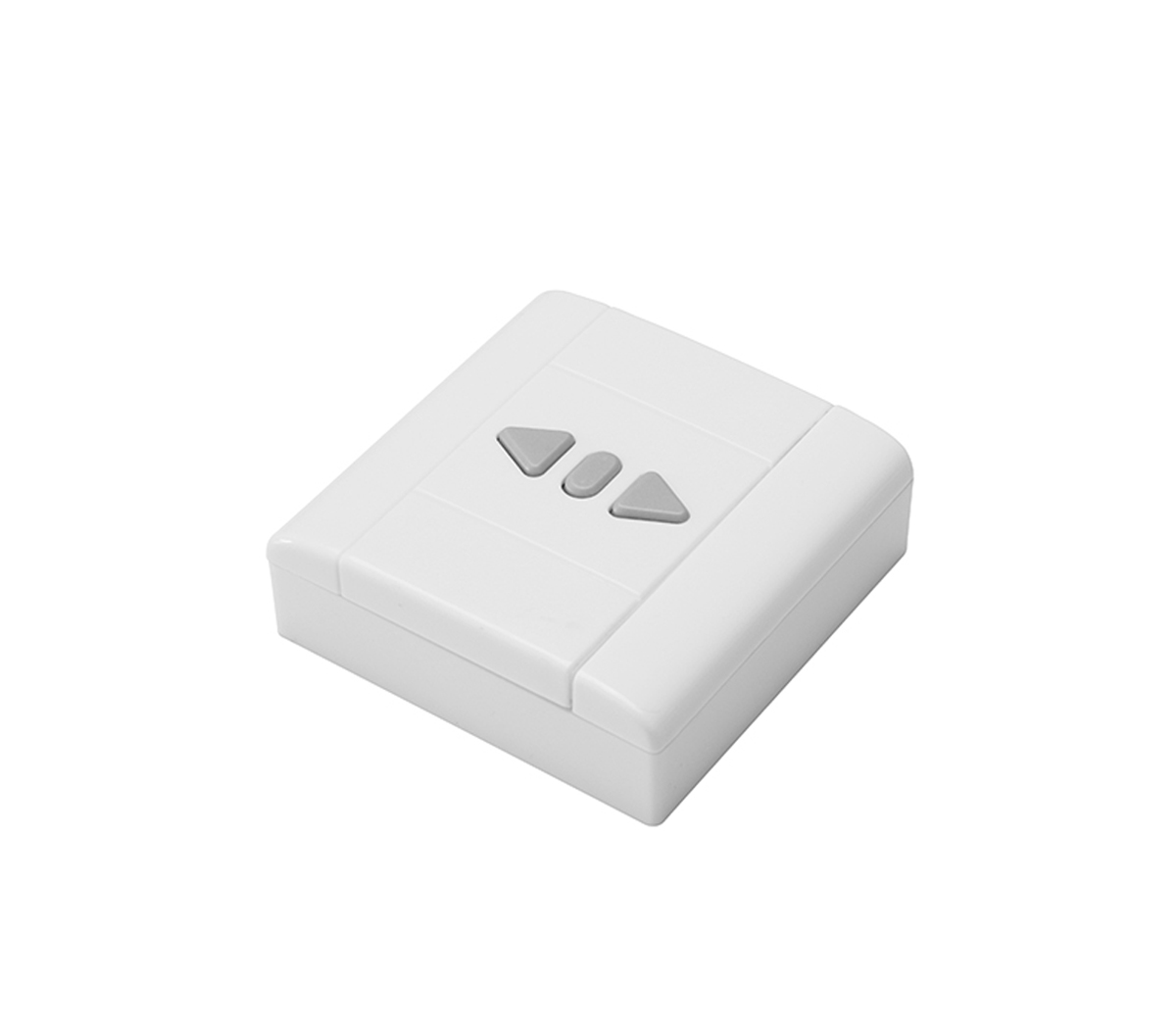

    • Wall Swtich

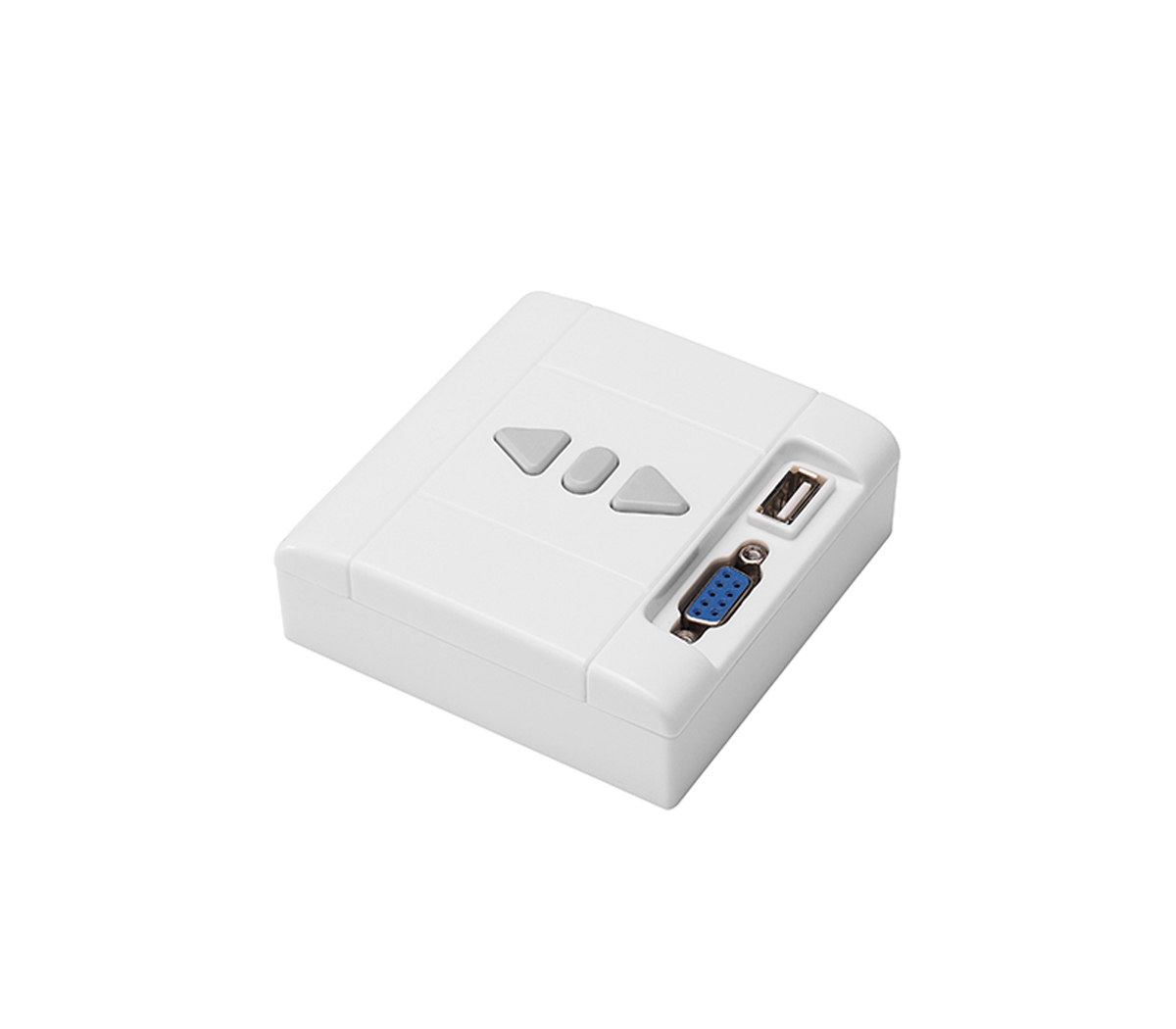

    • Smart Wall Switch

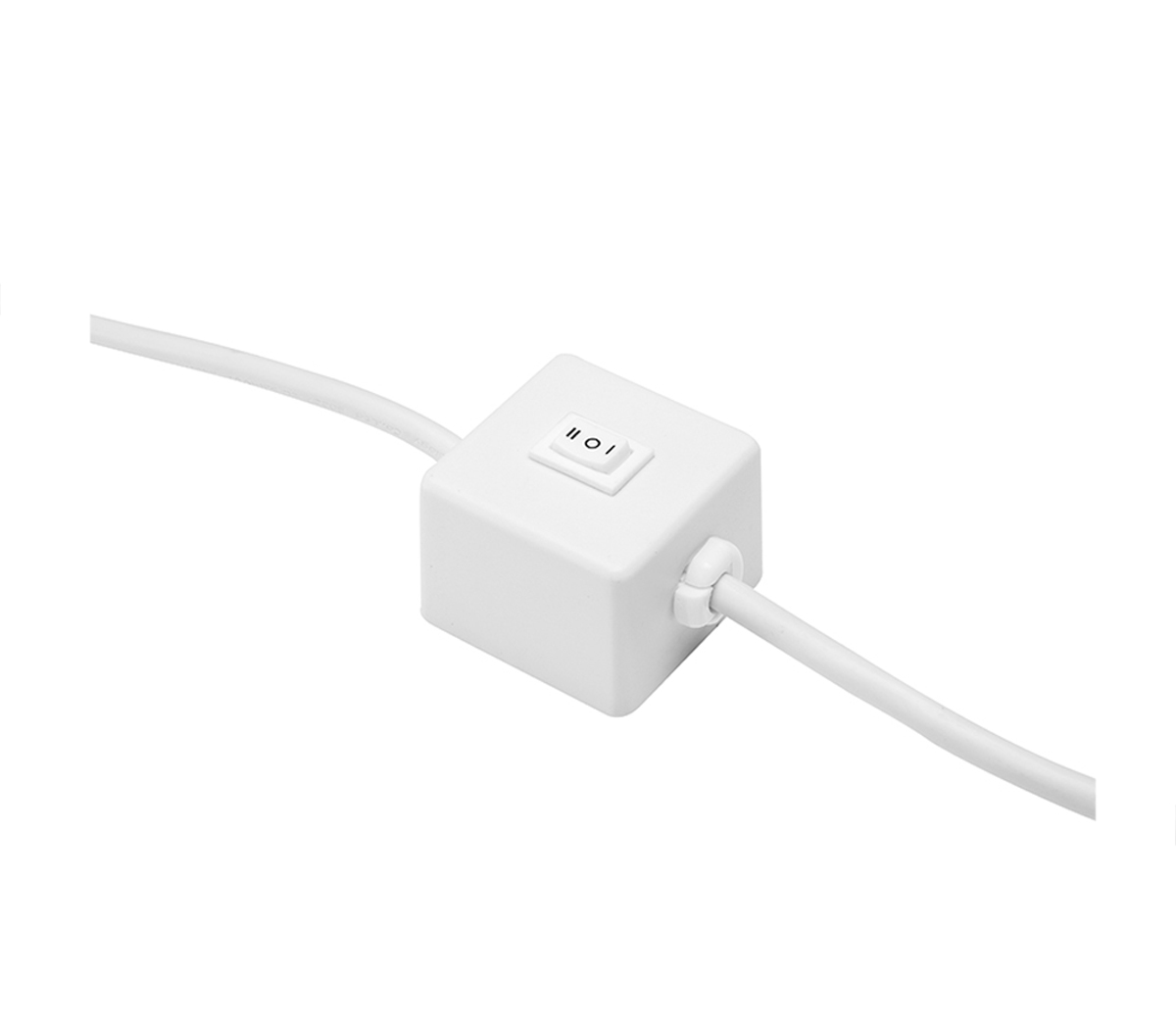

    • In-Line Switch
    Standard Accessories

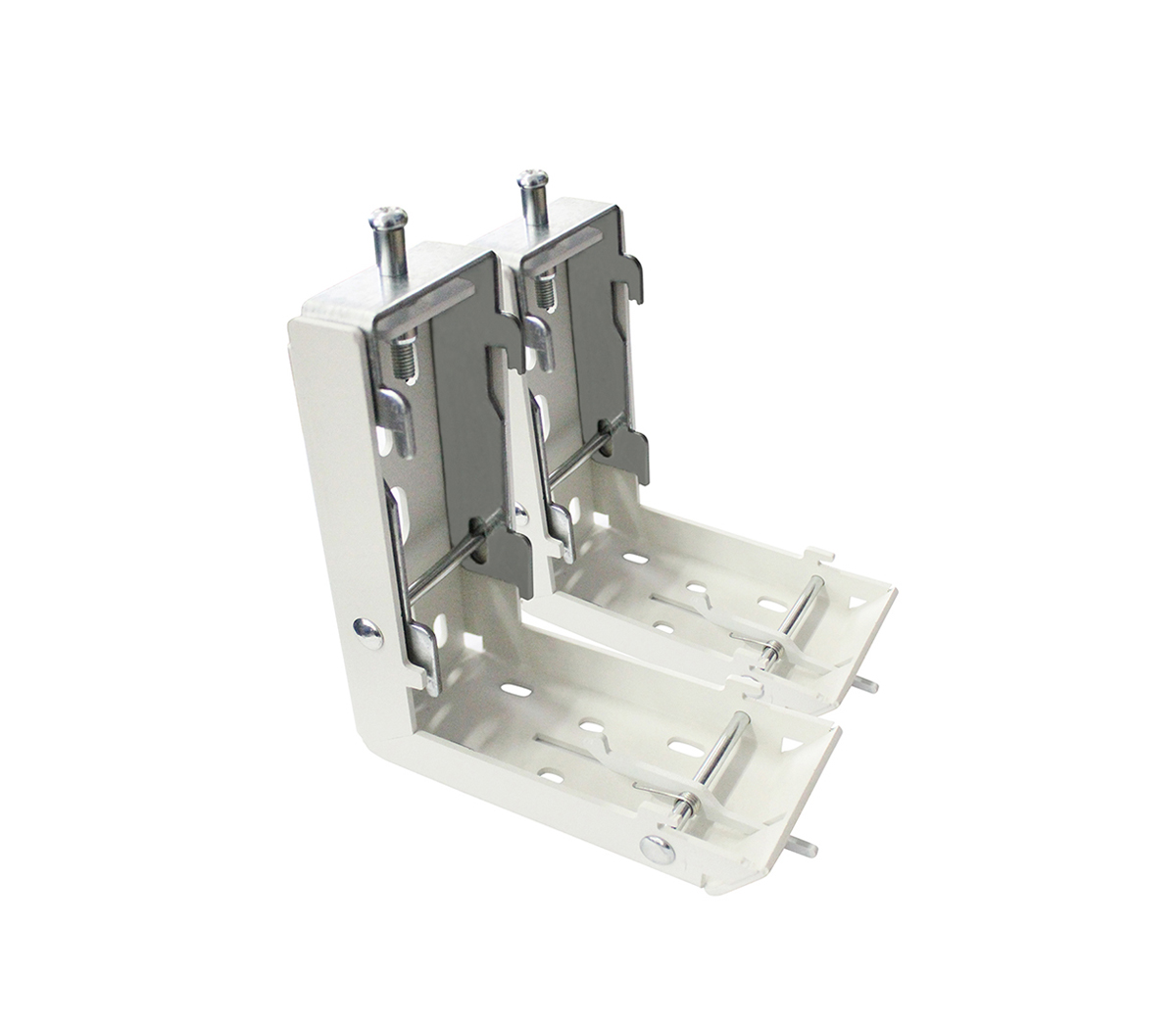

    • Floating Installation Brackets

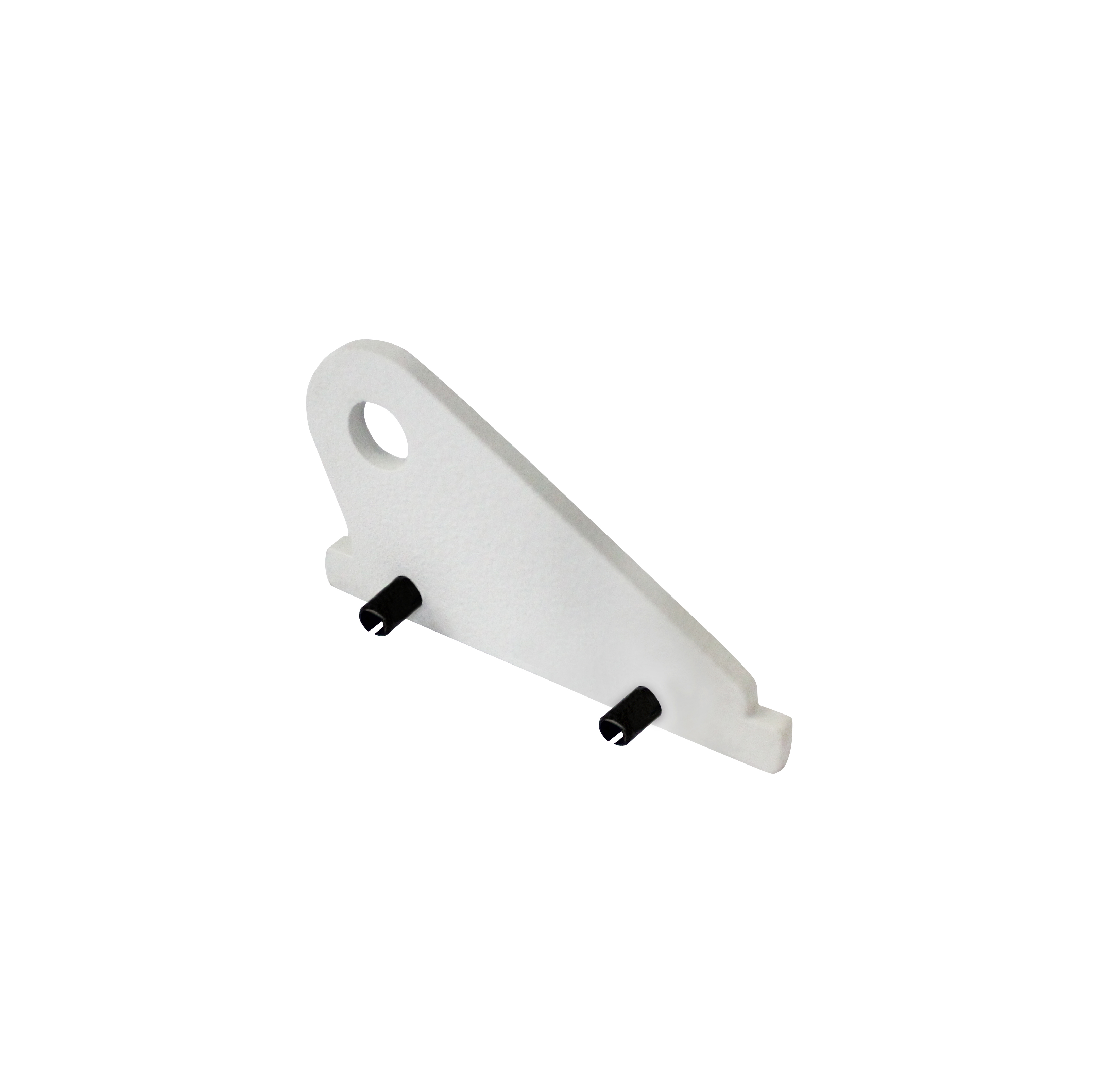

    • Hanging Brackets

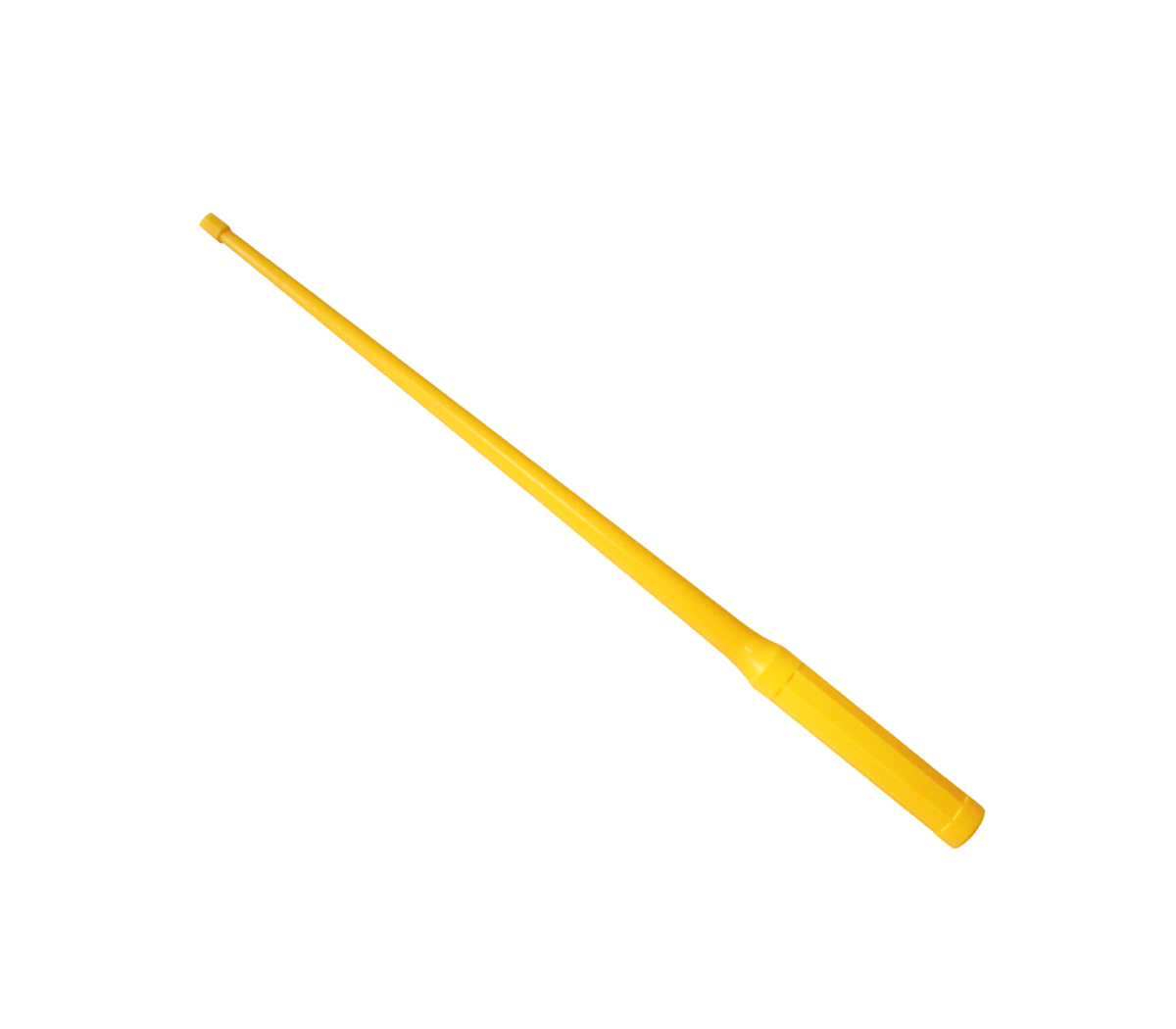

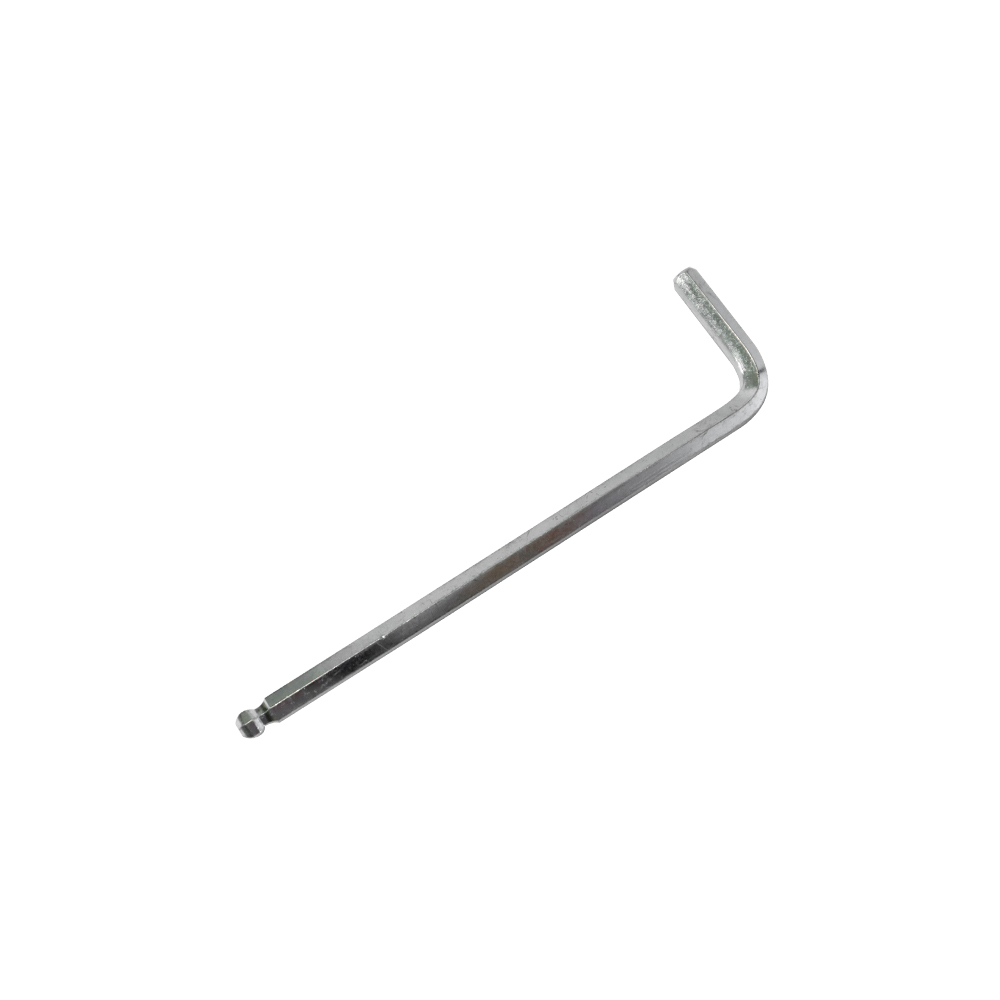

    • Limit Adjustment Tool
    External Control Options

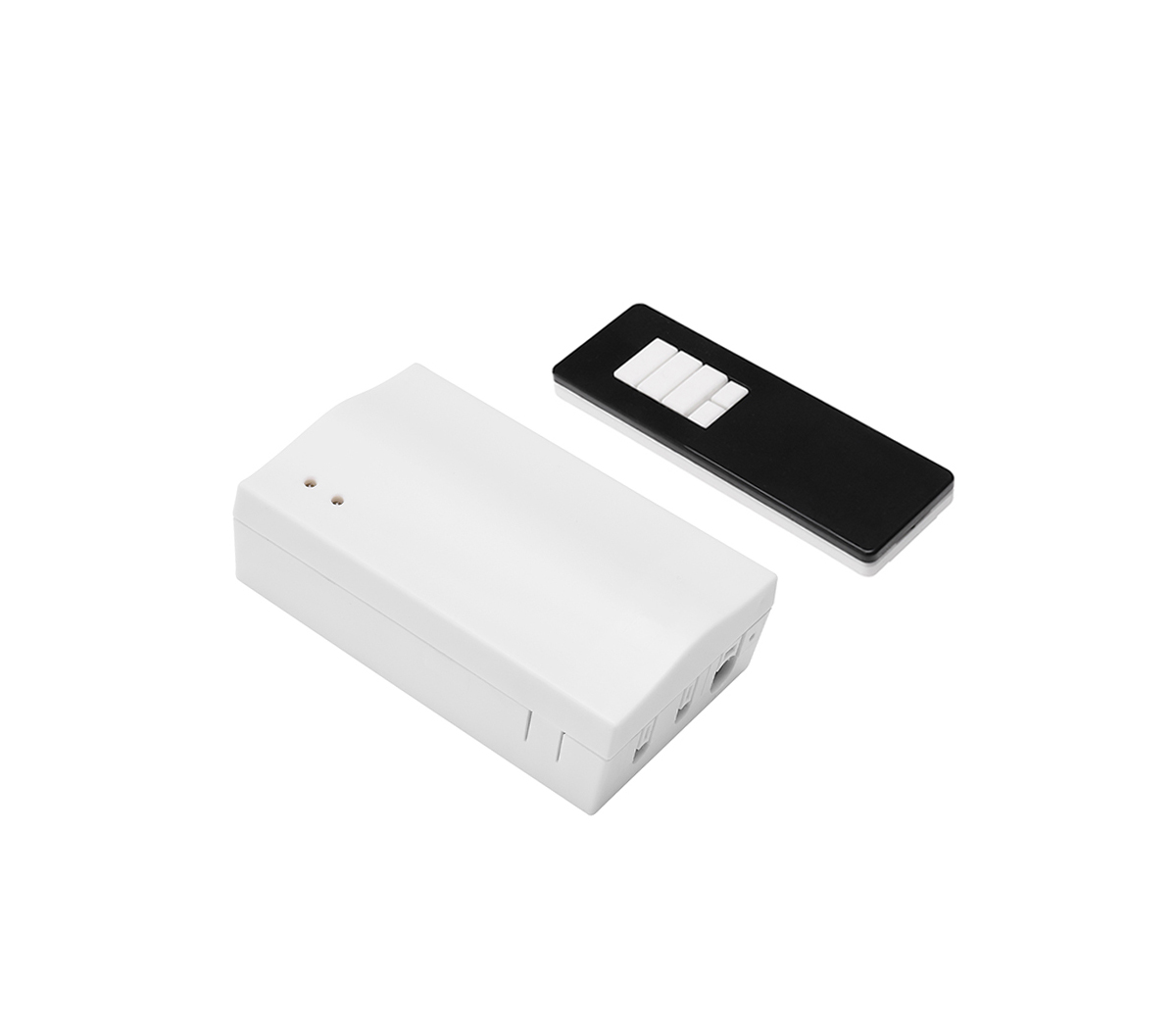

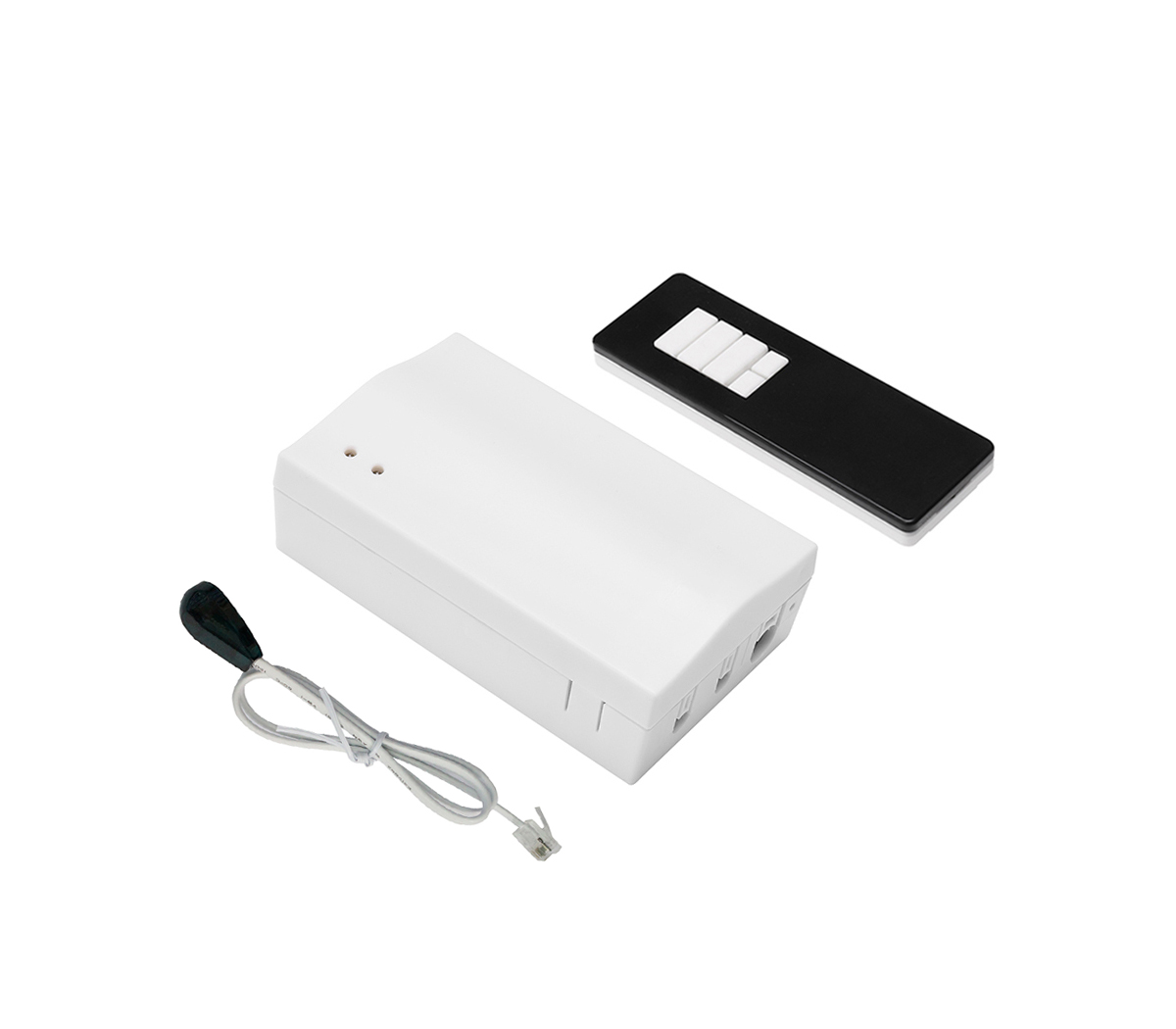

    • External RF Control System
    • External IR Control System

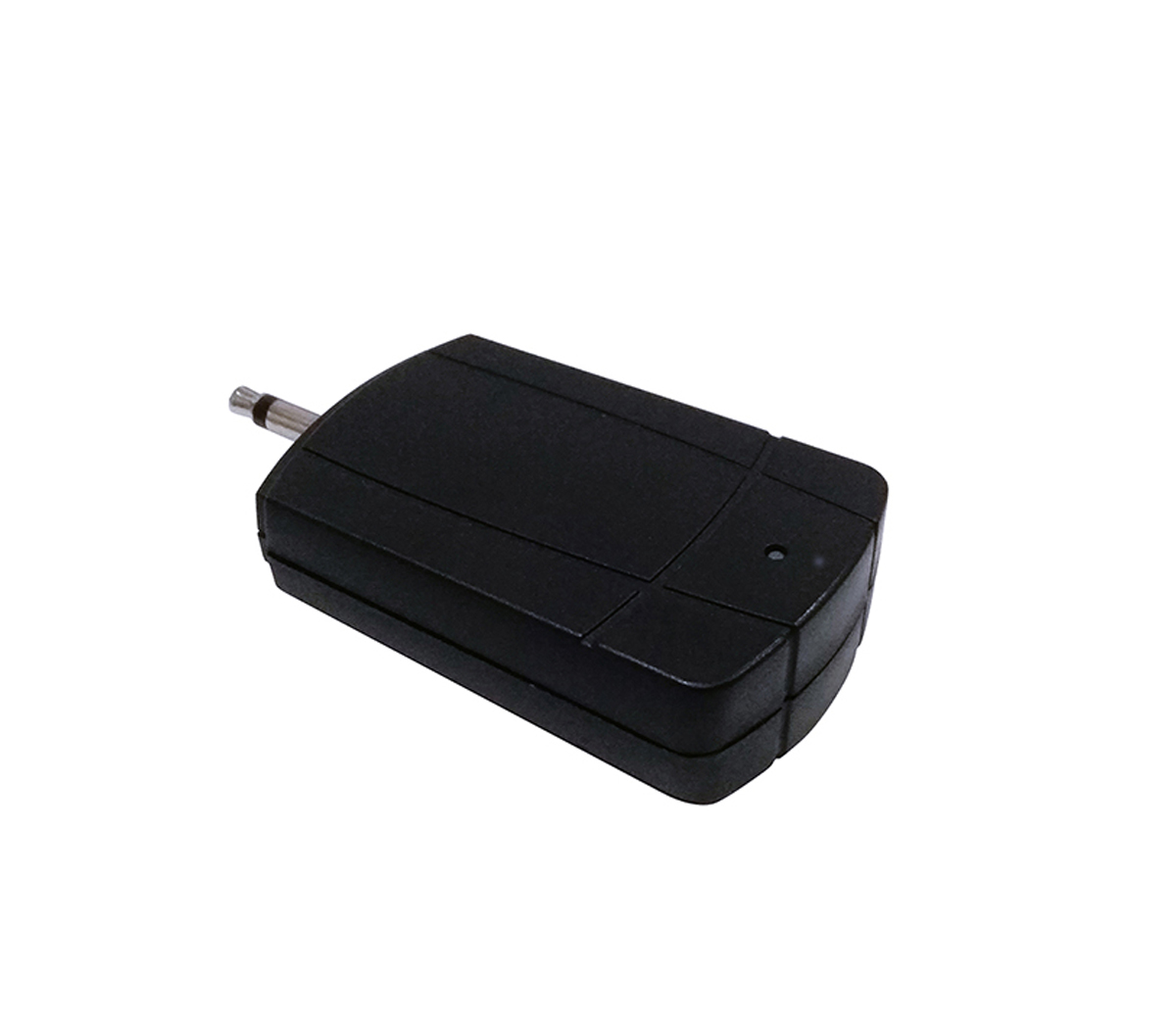

    • RF Wireless Trigger
  • Fabrics
    • UHD130
      • Viewing
        Angle
        130°
      • Gain
        1.3
    • WW5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GG3
      • Viewing
        Angle
        160°
      • Gain
        0.8
    • RE3
      • Viewing
        Angle
        160°
      • Gain
        1.8
    • WB2
      • Viewing
        Angle
        160
      • Gain
        1.0
  • Specs

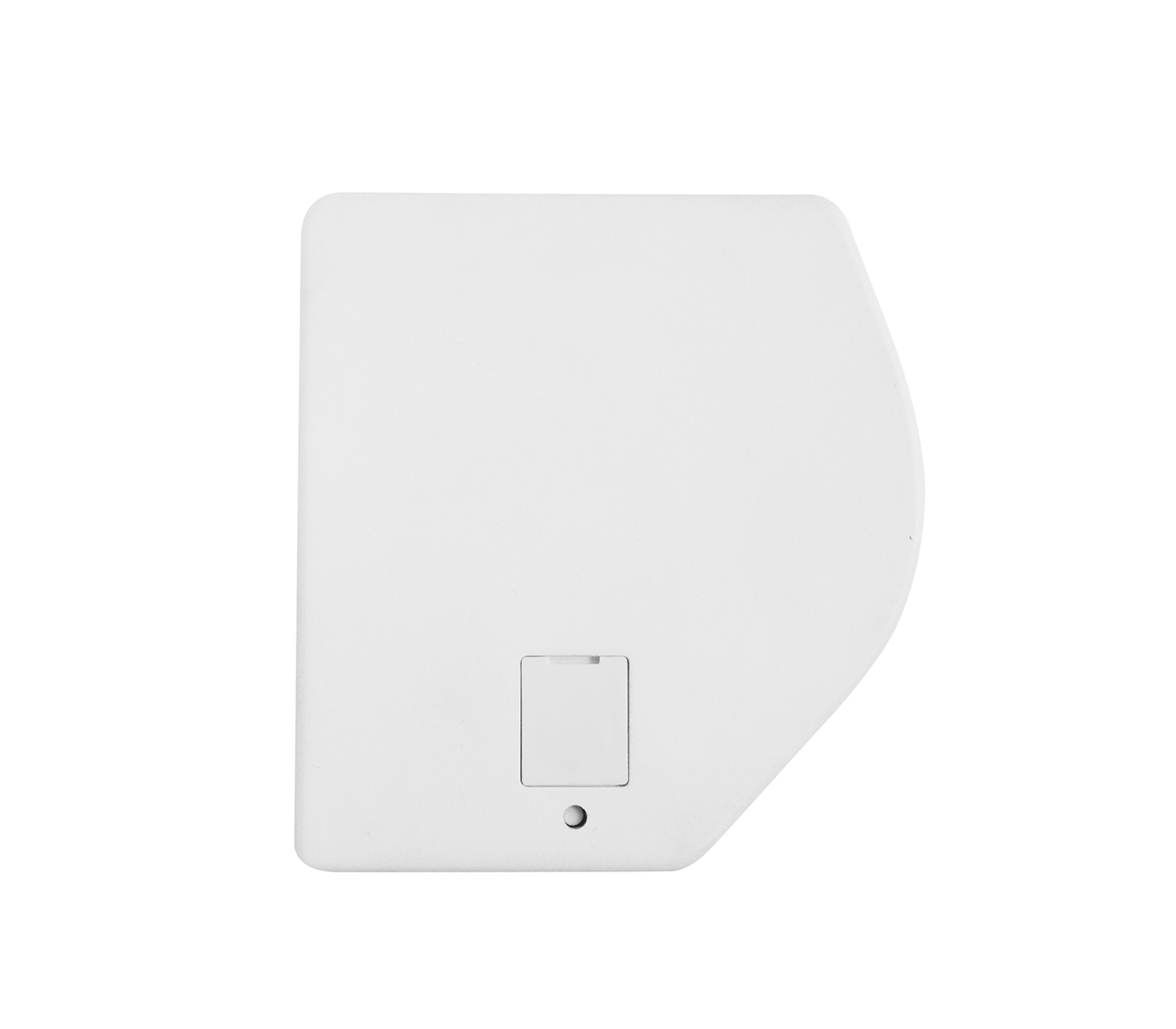

    • Intelligent Motorized

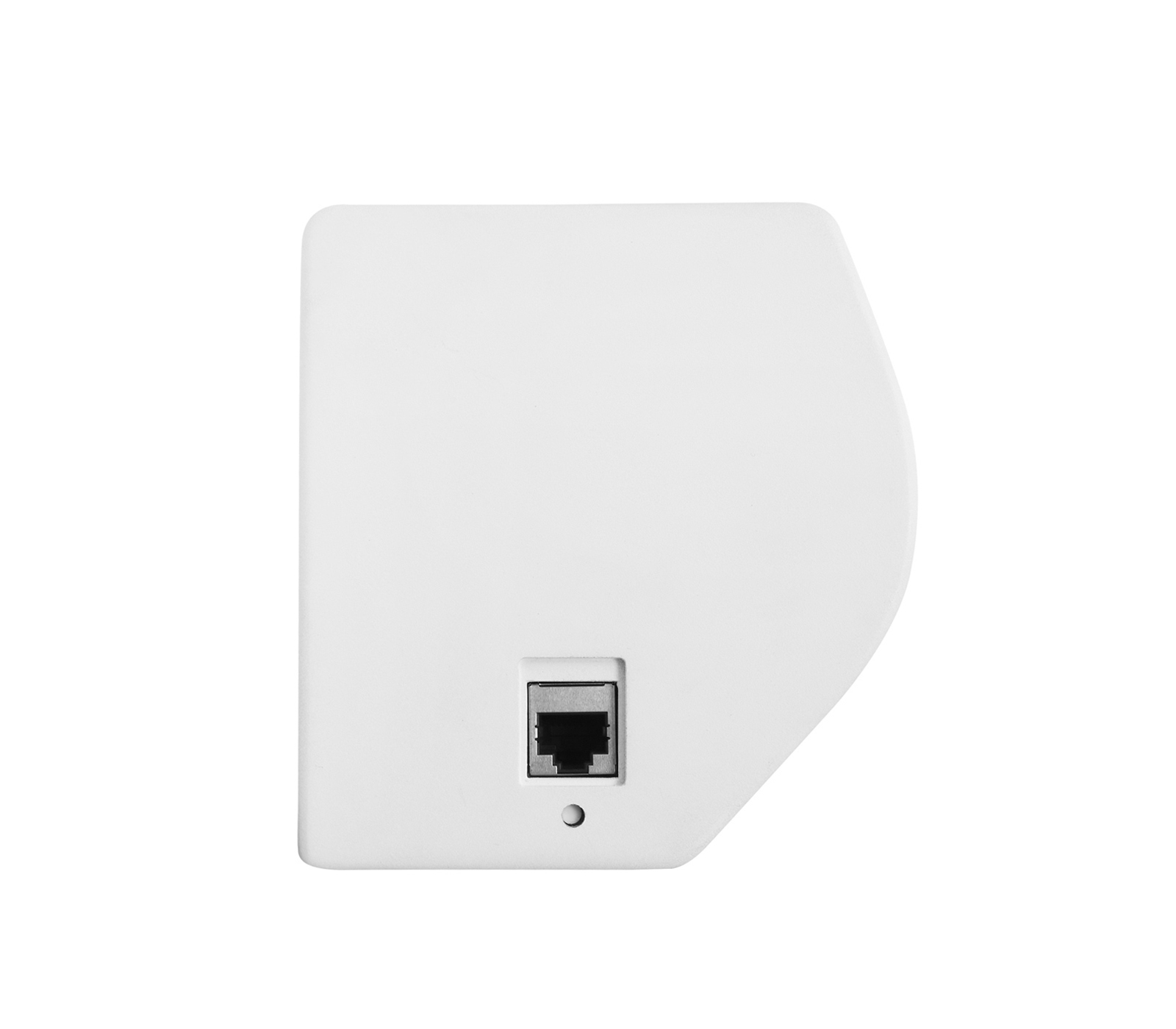

    • Intelligent IP
    • Model
      • 4:3
      • 16:9
      • 16:10
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1869 × 1402
        2028
        400
        65
        80
        2252
        150
        141
        100"
        2032 × 1524
        2150
        400
        65
        80
        2415
        150
        141
        120"
        2438 × 1829
        2455
        400
        65
        80
        2821
        150
        141
        145"
        2944 × 2208
        2860
        400
        65
        80
        3287
        150
        141
        150"
        3048 × 2286
        2938
        400
        65
        80
        3391
        150
        141
        165"
        3320 × 2490
        3142
        400
        65
        80
        3663
        150
        141
        180"
        3658 × 2743
        3395
        400
        65
        80
        4001
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2037 × 1146
        1772
        400
        65
        80
        2415
        150
        141
        100"
        2214 × 1245
        1871
        400
        65
        80
        2597
        150
        141
        106"
        2346 × 1320
        1946
        400
        65
        80
        2729
        150
        141
        110"
        2435 × 1370
        1996
        400
        65
        80
        2821
        150
        141
        120"
        2656 × 1494
        2120
        400
        65
        80
        3039
        150
        141
        133"
        2944 × 1656
        2308
        400
        65
        80
        3287
        150
        141
        138"
        3048 × 1715
        2367
        400
        65
        80
        3391
        150
        141
        150"
        3320 × 1867
        2519
        400
        65
        80
        3663
        150
        141
        165"
        3620 × 2036
        2688
        400
        65
        80
        3963
        150
        141
        180"
        3985 × 2241
        2893
        400
        65
        80
        4328
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1982 × 1239
        1865
        400
        65
        80
        2365
        150
        141
        100"
        2154 × 1346
        1972
        400
        65
        80
        2537
        150
        141
        106"
        2283 × 1427
        2053
        400
        65
        80
        2666
        150
        141
        110"
        2369 × 1481
        2107
        400
        65
        80
        2752
        150
        141
        120"
        2585 × 1615
        2241
        400
        65
        80
        2968
        150
        141
        138"
        2944 × 1840
        2492
        400
        65
        80
        3287
        150
        141
        142"
        3048 × 1905
        2557
        400
        65
        80
        3391
        150
        141
        150"
        3231 × 2019
        2671
        400
        65
        80
        3574
        150
        141
        168"
        3620 × 2263
        2915
        400
        65
        80
        3963
        150
        141
        180"
        3877 × 2423
        3075
        400
        65
        80
        4220
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2150 × 915
        1741
        600
        65
        80
        2533
        150
        141
        100"
        2337 × 995
        1821
        600
        65
        80
        2729
        150
        141
        104"
        2438 × 1037
        1863
        600
        65
        80
        2821
        150
        141
        110"
        2570 × 1095
        1921
        600
        65
        80
        2953
        150
        141
        120"
        2804 × 1194
        2020
        600
        65
        80
        3187
        150
        141
        130"
        3038 × 1293
        2145
        600
        65
        80
        3381
        150
        141
        142"
        3320 × 1413
        2265
        600
        65
        80
        3663
        150
        141
    • Model
      • 4:3
      • 16:9
      • 16:10
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1869 × 1402
        2028
        400
        65
        80
        2263
        150
        141
        100"
        2032 × 1524
        2150
        400
        65
        80
        2426
        150
        141
        120"
        2438 × 1829
        2455
        400
        65
        80
        2832
        150
        141
        145"
        2944 × 2208
        2860
        400
        65
        80
        3287
        150
        141
        150"
        3048 × 2286
        2938
        400
        65
        80
        3391
        150
        141
        165"
        3320 × 2490
        3142
        400
        65
        80
        3663
        150
        141
        180"
        3658 × 2743
        3395
        400
        65
        80
        4001
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2037 × 1146
        1772
        400
        65
        80
        2426
        150
        141
        100"
        2214 × 1245
        1871
        400
        65
        80
        2608
        150
        141
        106"
        2346 × 1320
        1946
        400
        65
        80
        2740
        150
        141
        110"
        2435 × 1370
        1996
        400
        65
        80
        2832
        150
        141
        120"
        2656 × 1494
        2120
        400
        65
        80
        3050
        150
        141
        133"
        2944 × 1656
        2308
        400
        65
        80
        3287
        150
        141
        138"
        3048 × 1715
        2367
        400
        65
        80
        3391
        150
        141
        150"
        3320 × 1867
        2519
        400
        65
        80
        3663
        150
        141
        165"
        3620 × 2036
        2688
        400
        65
        80
        3963
        150
        141
        180"
        3985 × 2241
        2893
        400
        65
        80
        4328
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1982 × 1239
        1865
        400
        65
        80
        2376
        150
        141
        100"
        2154 × 1346
        1972
        400
        65
        80
        2548
        150
        141
        106"
        2283 × 1427
        2053
        400
        65
        80
        2677
        150
        141
        110"
        2369 × 1481
        2107
        400
        65
        80
        2763
        150
        141
        120"
        2585 × 1615
        2241
        400
        65
        80
        2979
        150
        141
        138"
        2944 × 1840
        2492
        400
        65
        80
        3287
        150
        141
        142"
        3048 × 1905
        2557
        400
        65
        80
        3391
        150
        141
        150"
        3231 × 2019
        2671
        400
        65
        80
        3574
        150
        141
        168"
        3620 × 2263
        2915
        400
        65
        80
        3963
        150
        141
        180"
        3877 × 2423
        3075
        400
        65
        80
        4220
        150
        141
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2150 × 915
        1741
        600
        65
        80
        2544
        150
        141
        100"
        2337 × 995
        1821
        600
        65
        80
        2740
        150
        141
        104"
        2438 × 1037
        1863
        600
        65
        80
        2832
        150
        141
        110"
        2570 × 1095
        1921
        600
        65
        80
        2964
        150
        141
        120"
        2804 × 1194
        2020
        600
        65
        80
        3198
        150
        141
        130"
        3038 × 1293
        2145
        600
        65
        80
        3381
        150
        141
        142"
        3320 × 1413
        2265
        600
        65
        80
        3663
        150
        141
