EDGE SERIES

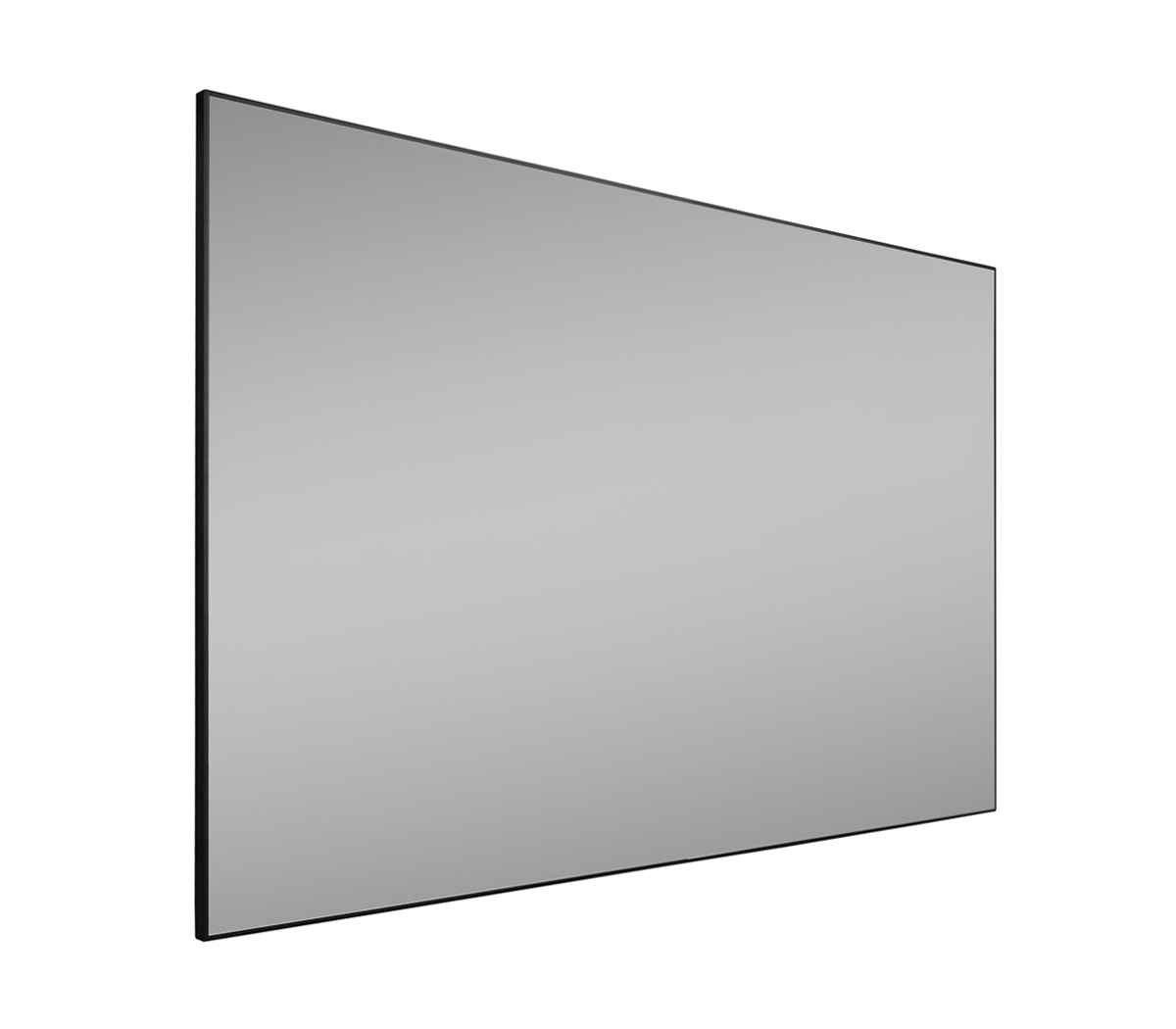

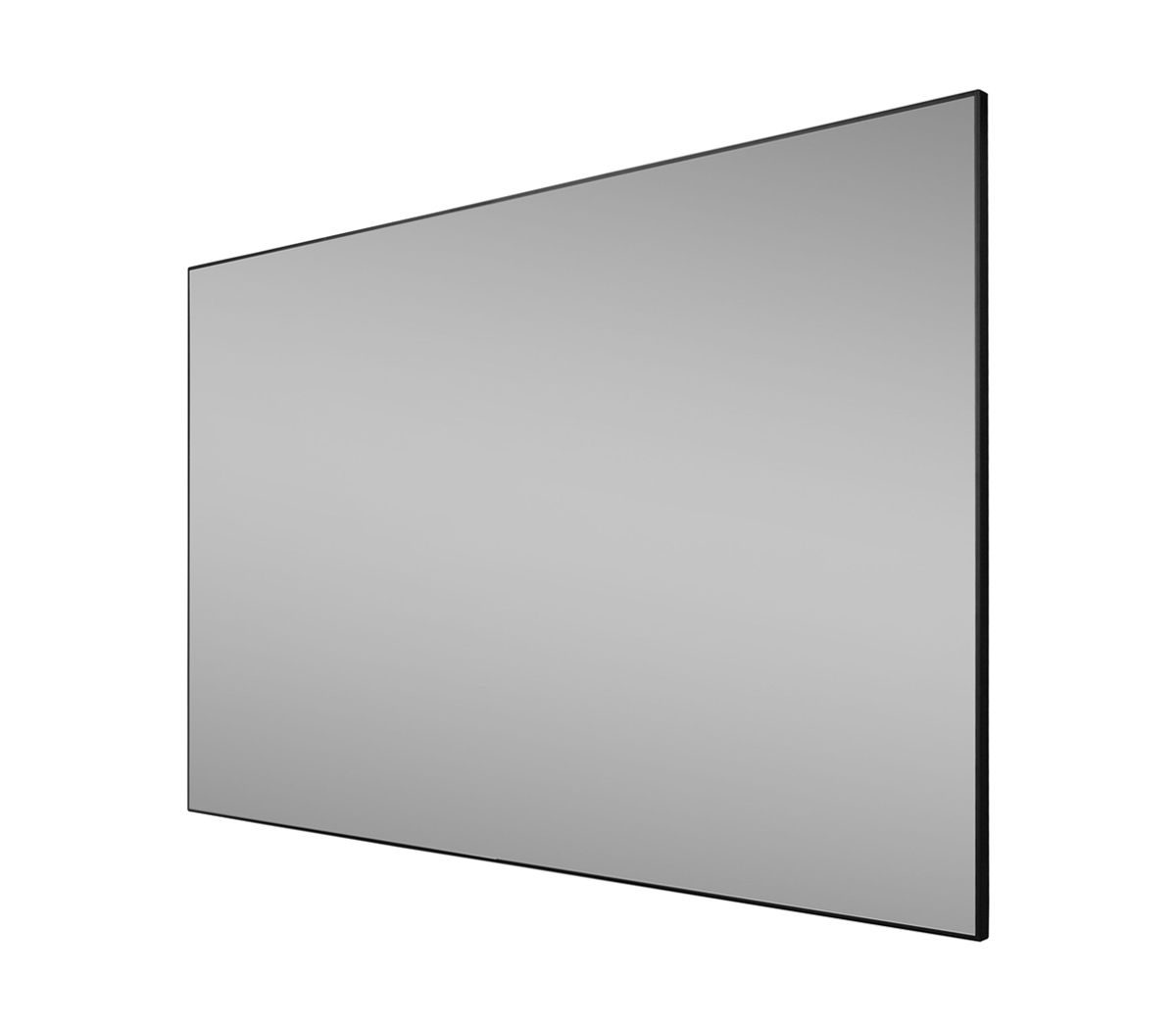

ALR FIXED FRAME SCREEN

  • Grandvew’s Dynamique Series Ambient Light Rejection (ALR) screen features deep black levels, high contrast, excellent color saturation, and wide viewing angle. The Dynamique Series is a perfect pair with any ultra-short throw projectors on the market. You will be able to watch your favorite show even with ambient light on a big screen.
  • The ALR fabric can only be used with ultra-short throw projectors


  • • Sizes: /100”/ 120” 16:9
  • • Installation Options: Wall Mount

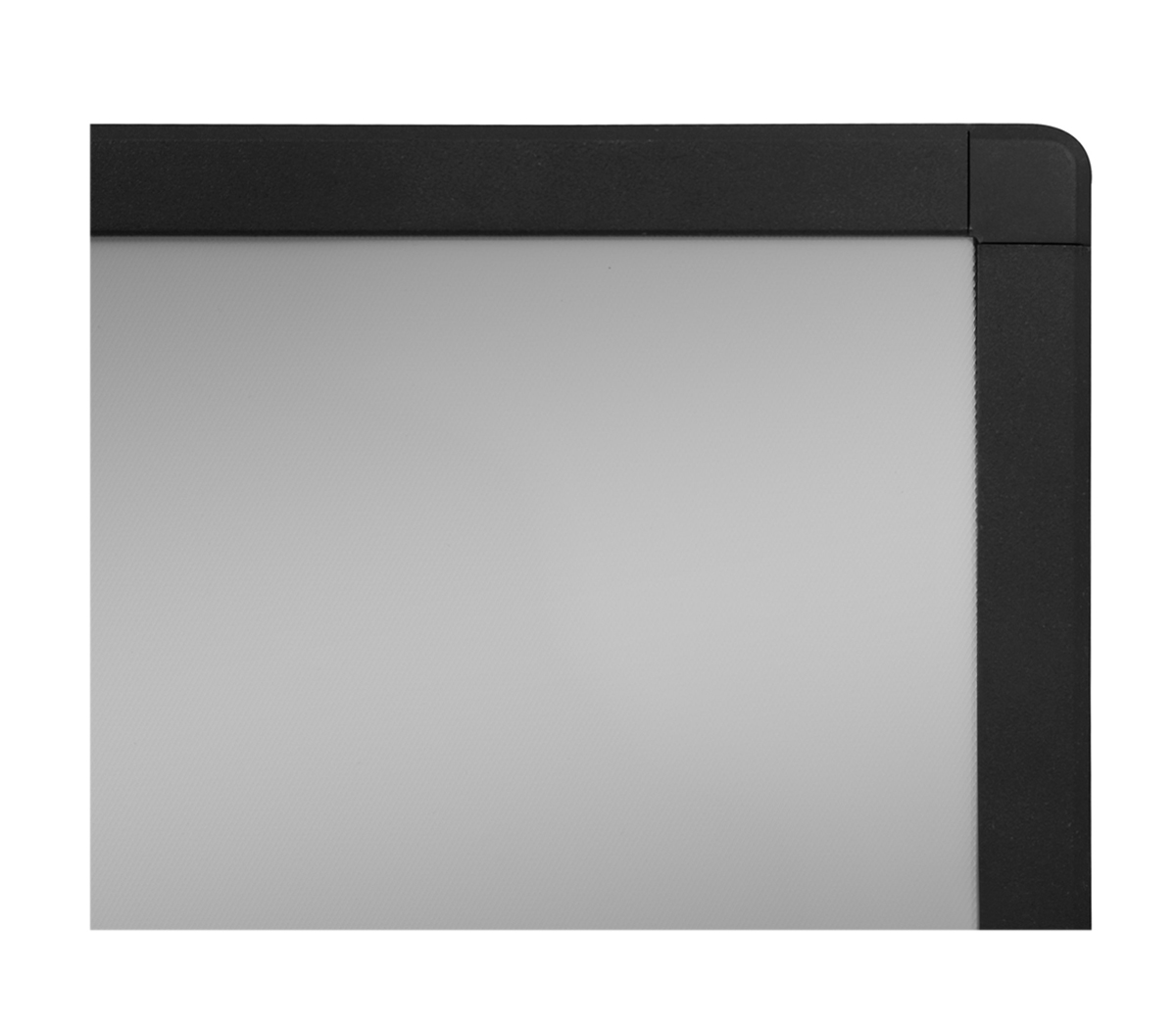

  • • 15mm bezel
  • • Multi-Point Tension Design
  • • Aluminum Frame
  • • Easy Installation
  • • Lightweight design
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Fabrics
    • Black Grid (DY3)
      • Viewing
        Angle
        140°
      • Gain
        0.5
    • Dynamique Fabric(DY4)
      • Viewing
        Angle
        90°
      • Gain
        0.6
    • Black Grid(DY5)
      • Viewing
        Angle
        140°
      • Gain
        0.6
    • DY1C
      • Viewing
        Angle
        >56°
      • Gain
        1.2
    • Black Grid(DY3T)
      • Viewing
        Angle
        140°
      • Gain
        0.5
  • Specs
    • Model
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        100"
        2215 × 1245
        1269
        12
        12
        12
        2239
        N/A
        N/A
        120"
        2657 × 1494
        1518
        12
        12
        12
        2681
        N/A
        N/A
