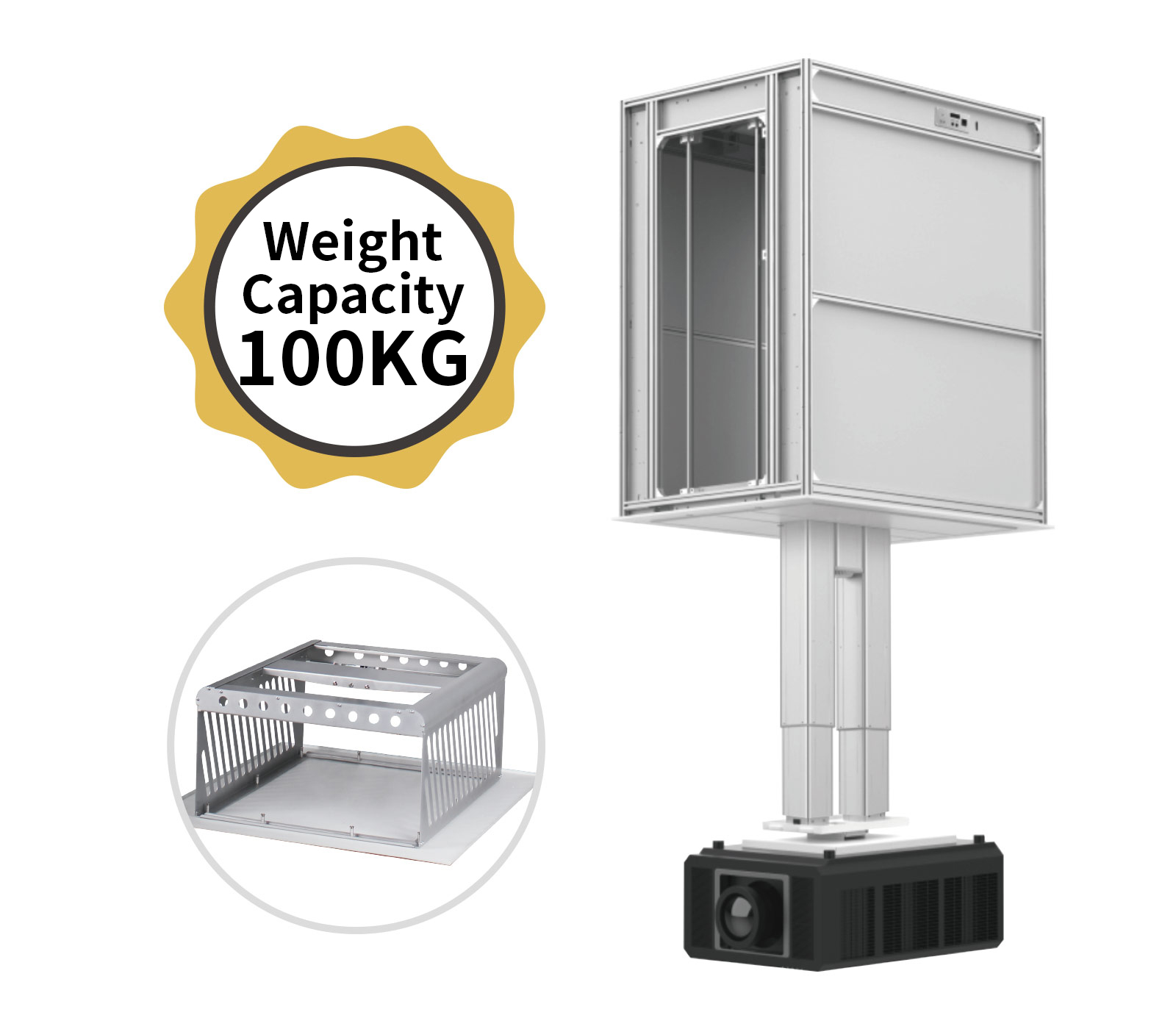

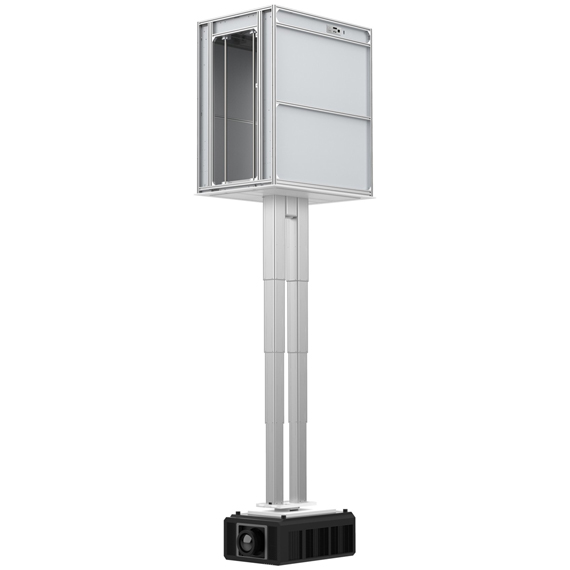

GPAD/AC 76 Series

Telescopic Projector Lift

  • GPAD/ AC76 series telescopic rod projector ceiling lifter, with double pole telescopic design, can carry heavy engineering projector, simple lines, and various decoration styles.
  • Major Function:
  • . guide pillar lifting, stable operation, built-in force precision screw connection, multi-point lifting
  • The patent of line finance can be lifted and lowered without weight-bearing;
  • Multi protection anti falling device, fully enclosed aluminum alloy frame structure, strong and durable; industrial long-running motor;
  • Multi section aluminum alloy square tube, double open type inner door; stable operation; high precision encoder, positioning accuracy ≤ 1mm
  • . built in cable: projector power cable × 1, hdmi2.0 × 1, category 6 network cable × 2; (other requirements can be customized)
  • . projector universal mounting claw, multi angle adjustable
  • . positioning mode: RF positioning and 485 positioning

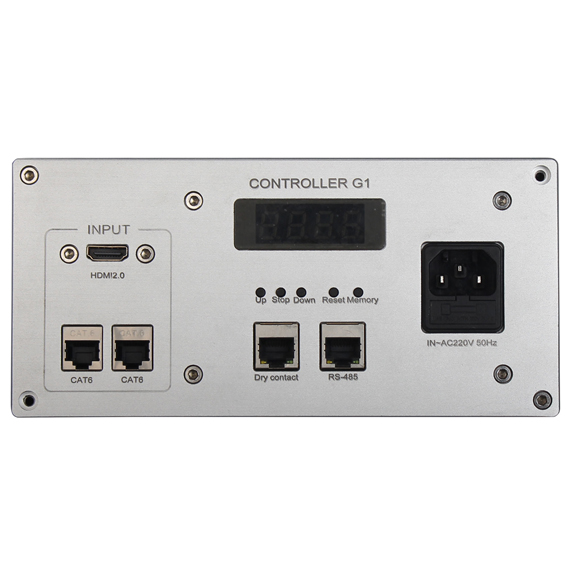

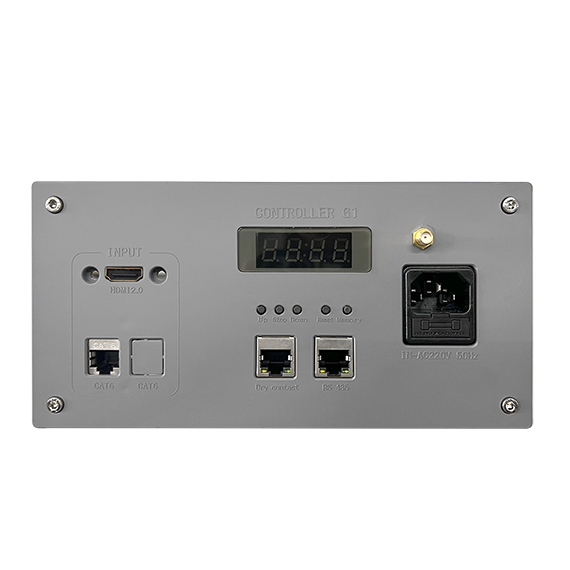

  • Control mode: RF, weak current dry contact and RS485 code
  • *The size of the installation projector is recommended for reference only. The actual size shall prevail.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPAD/AC 7650(Ⅱ)
    • GPAD/AC 7635
    • GPAD/AC 7627
    • GPAD/AC 7615
      • Product Dimensions(mm)

        1290×960×1780
      • Net Weight(kg)

        226
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        750x400x1080
      • Max Load(kg)

        100
      • Power(w)

        150
      • Max Travel(mm)
        5000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        615x1260
      • Decorative Plate
        Dimensions(mm)
        1000x1330
      • Ceiling Opening
        Dimensions(mm)
        980x1310
      • Required Ceiling
        Opening Height(mm)
        >H+100
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        2
      • HDMI 2.0

        1
      • Power Cord

        1
      • Packing Dimensions
        (D×W×H)mm
        1080x1900x1410
      • Product Dimensions(mm)

        1290×960×1660
      • Net Weight(kg)

        203
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        750x400x1080
      • Max Load(kg)

        100
      • Power(w)

        150
      • Max Travel(mm)
        3500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        615x1260
      • Decorative Plate
        Dimensions(mm)
        1000x1330
      • Ceiling Opening
        Dimensions(mm)
        980x1310
      • Required Ceiling
        Opening Height(mm)
        >H+100
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        2
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        248
      • Packing Dimensions
        (D×W×H)mm
        1080x1775x1410
      • Product Dimensions(mm)

        1290×960×1460
      • Net Weight(kg)

        199
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        750x400x1080
      • Max Load(kg)

        100
      • Power(w)

        150
      • Max Travel(mm)
        2700
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        615x1260
      • Decorative Plate
        Dimensions(mm)
        1000x1330
      • Ceiling Opening
        Dimensions(mm)
        980x1310
      • Required Ceiling
        Opening Height(mm)
        >H+100
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        2
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        239
      • Packing Dimensions
        (D×W×H)mm
        1080x1575x1410
      • Product Dimensions(mm)

        1290×960×1160
      • Net Weight(kg)

        180
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        750x400x1080
      • Max Load(kg)

        100
      • Power(w)

        150
      • Max Travel(mm)
        1500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        615x1260
      • Decorative Plate
        Dimensions(mm)
        1000x1330
      • Ceiling Opening
        Dimensions(mm)
        980x1310
      • Required Ceiling
        Opening Height(mm)
        >H+100
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        2
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        215
      • Packing Dimensions
        (D×W×H)mm
        1080x1275x1410
  • Sketch
  • Standard Accessories

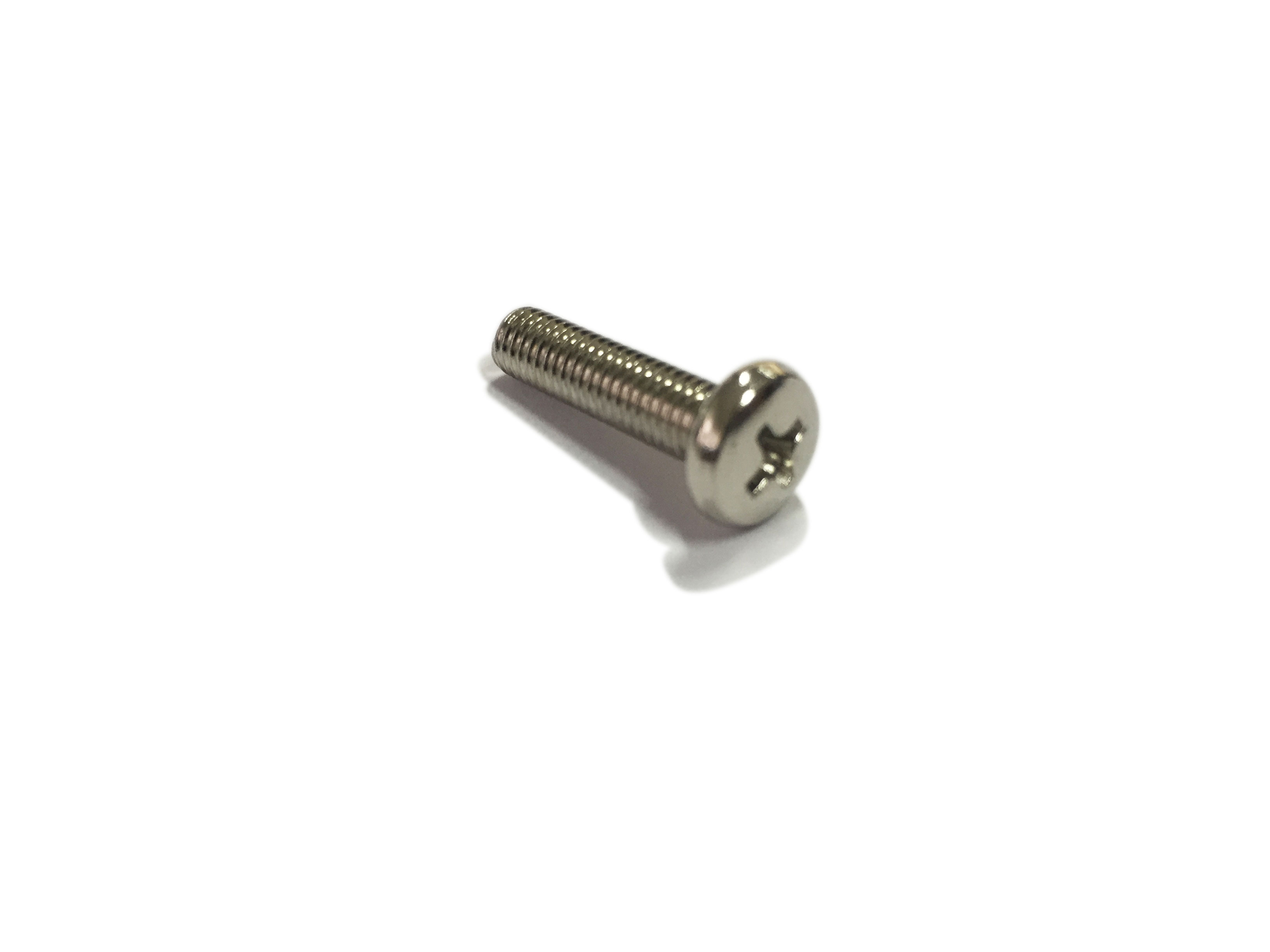

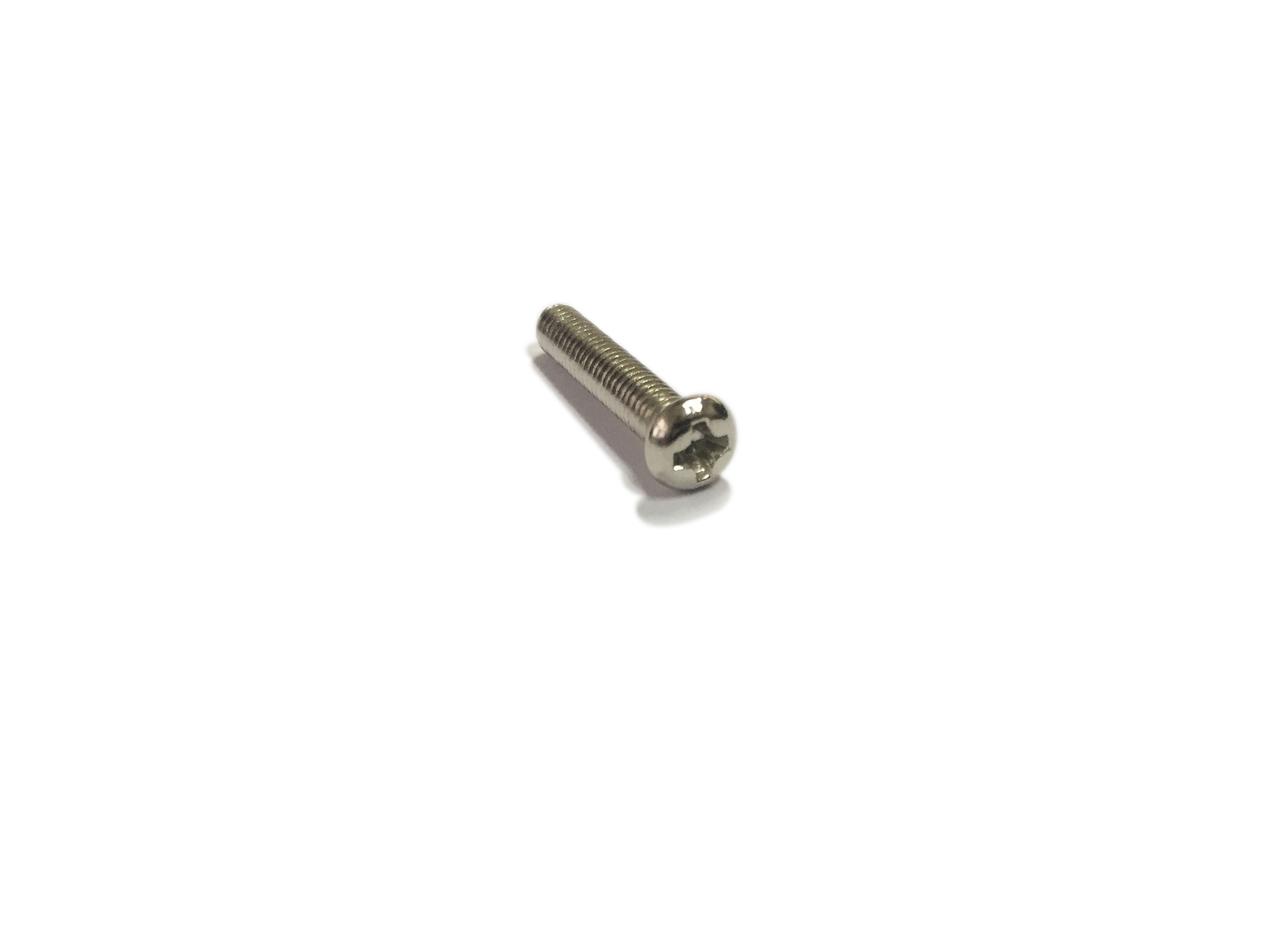

    • 4x25 screw(4pcs)
    • 5x25 screw(4pcs)
    • 6x25 screw(4pcs)

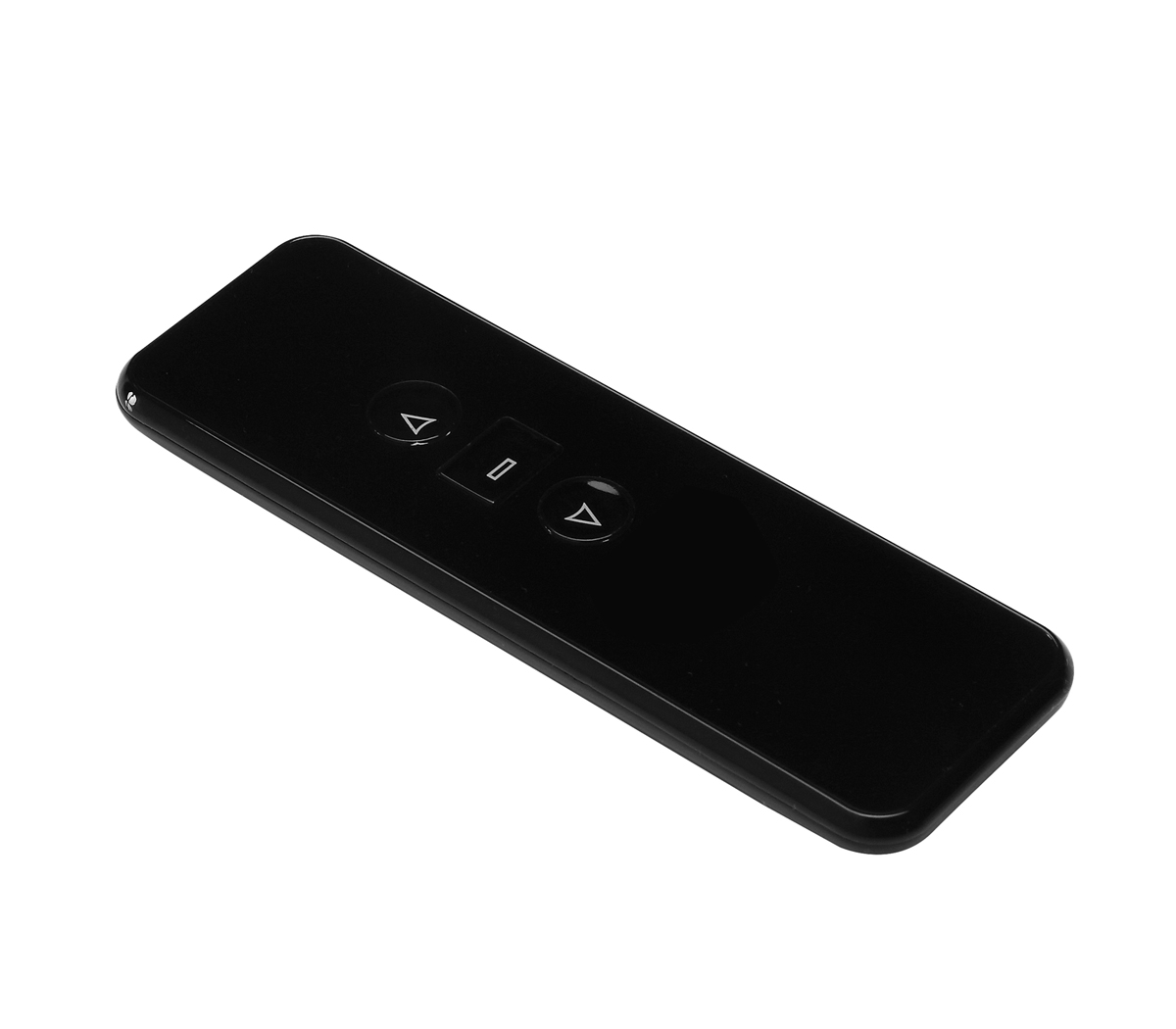

    • RF Remote Control

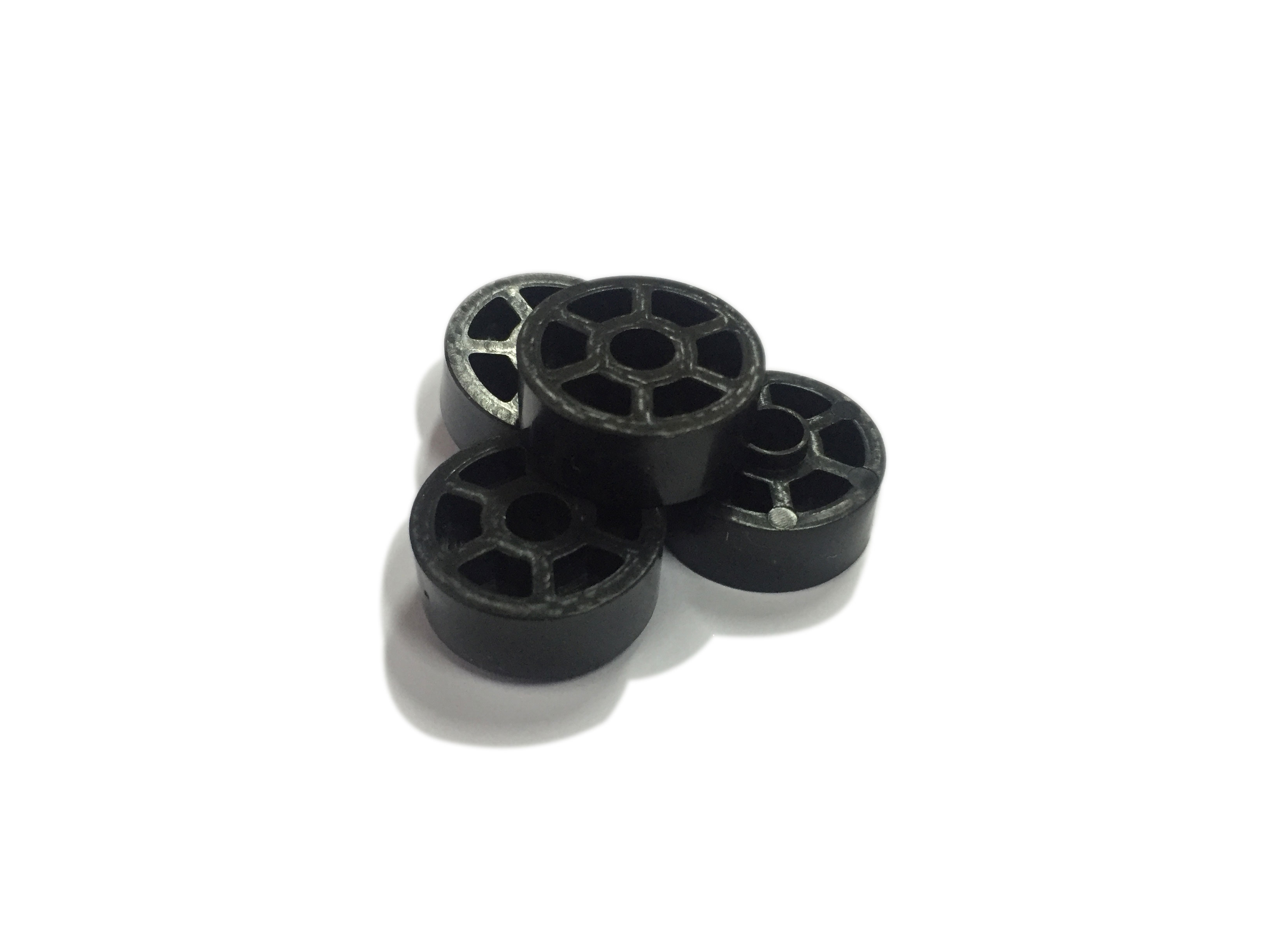

    • gasket

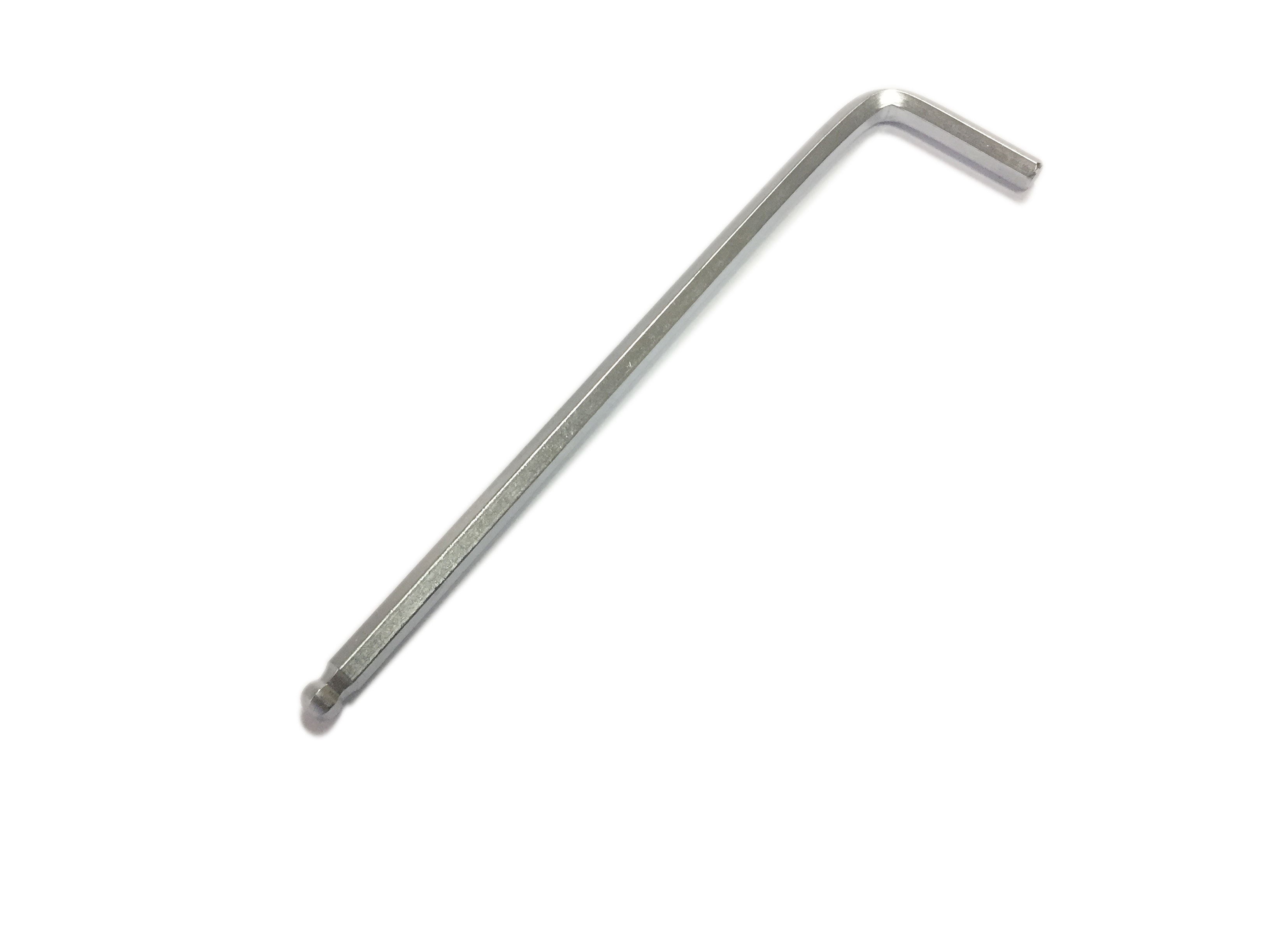

    • Limit Adjustment Tool

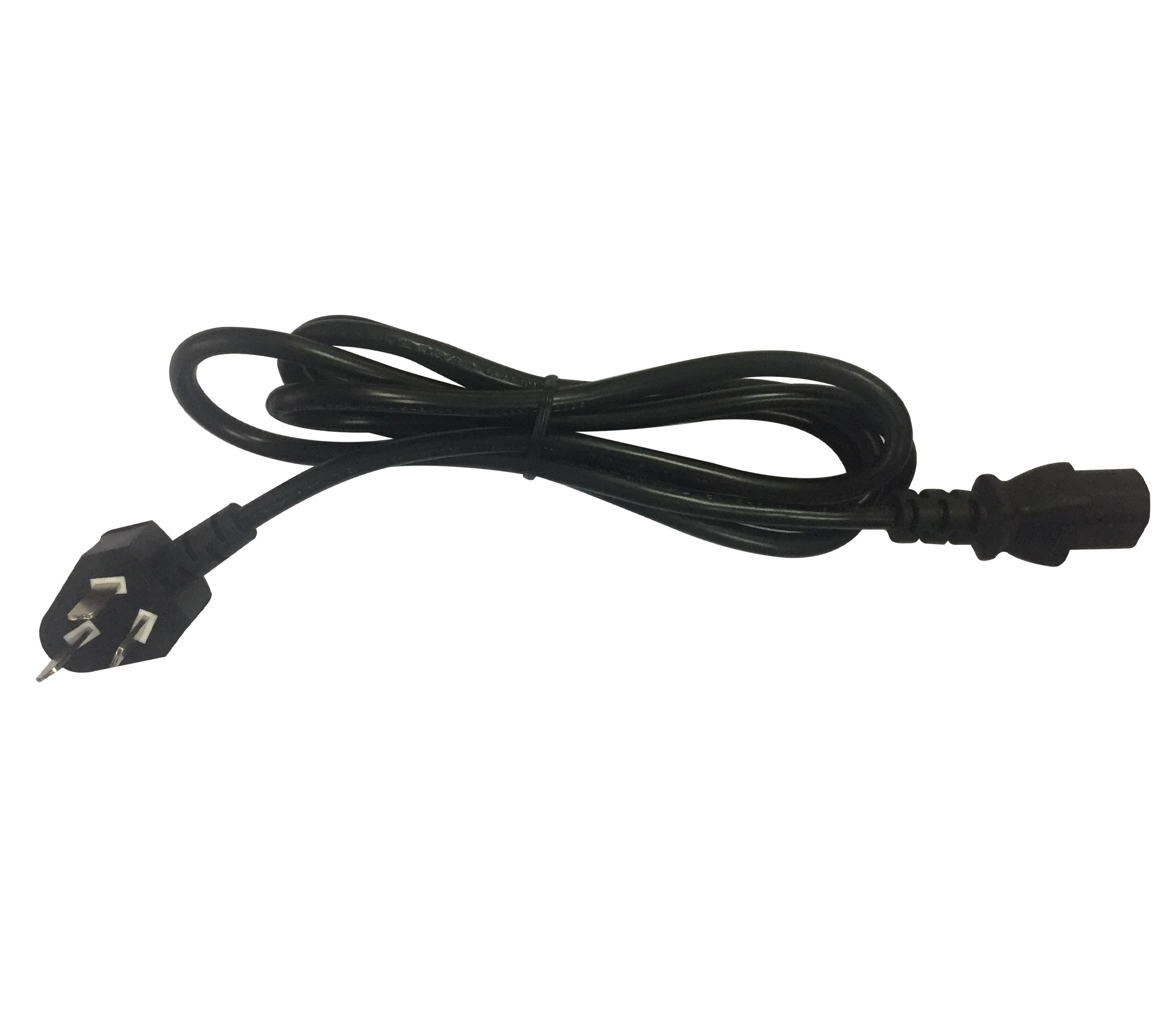

    • power line
    Control Options
    • RS485

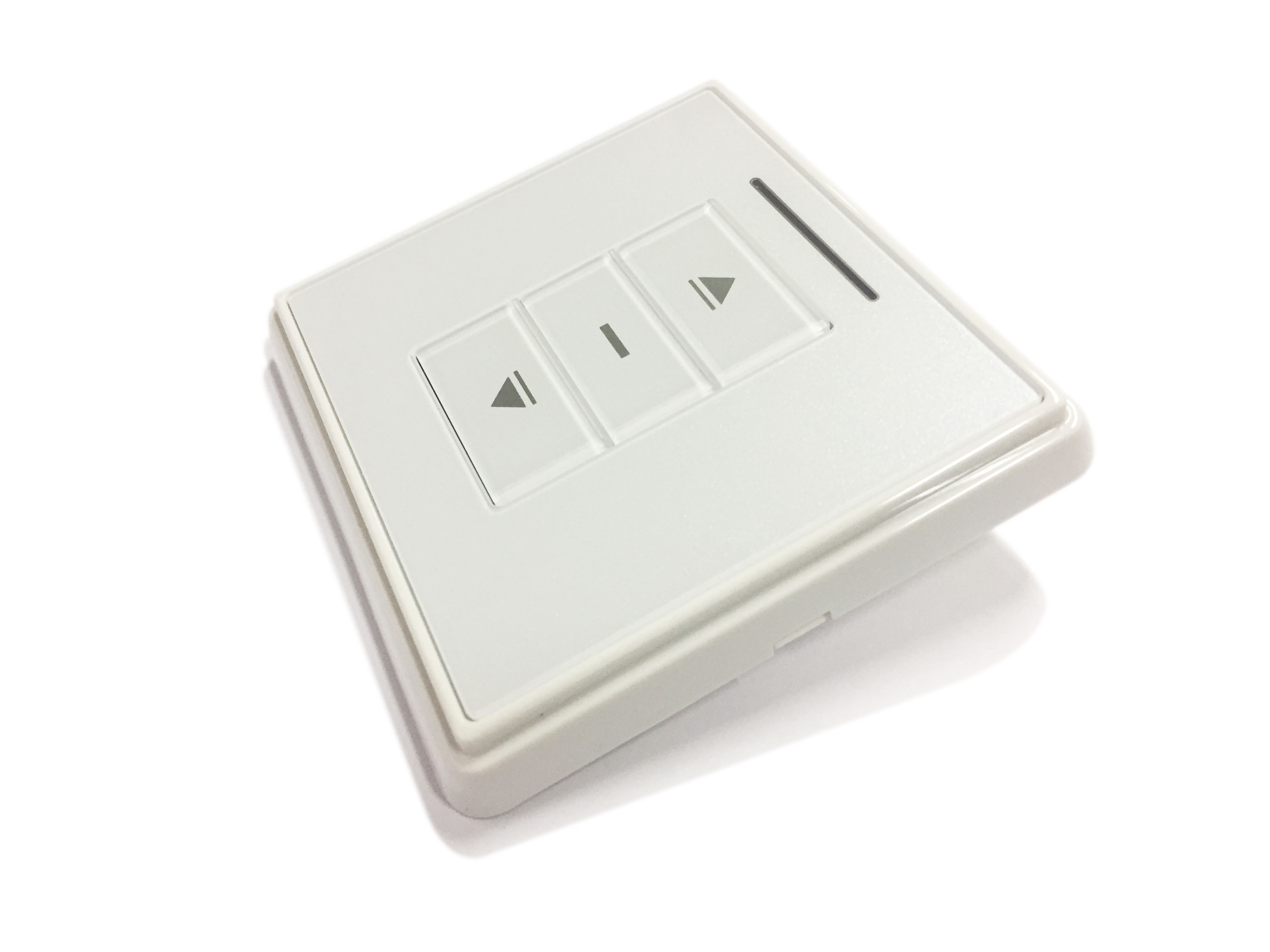

    • Wall Swtich
    • Wireless RF
  • Download
    GPAD/AC 76 Series Instructions.pdf
    GPAD/AC 76 Toptu
