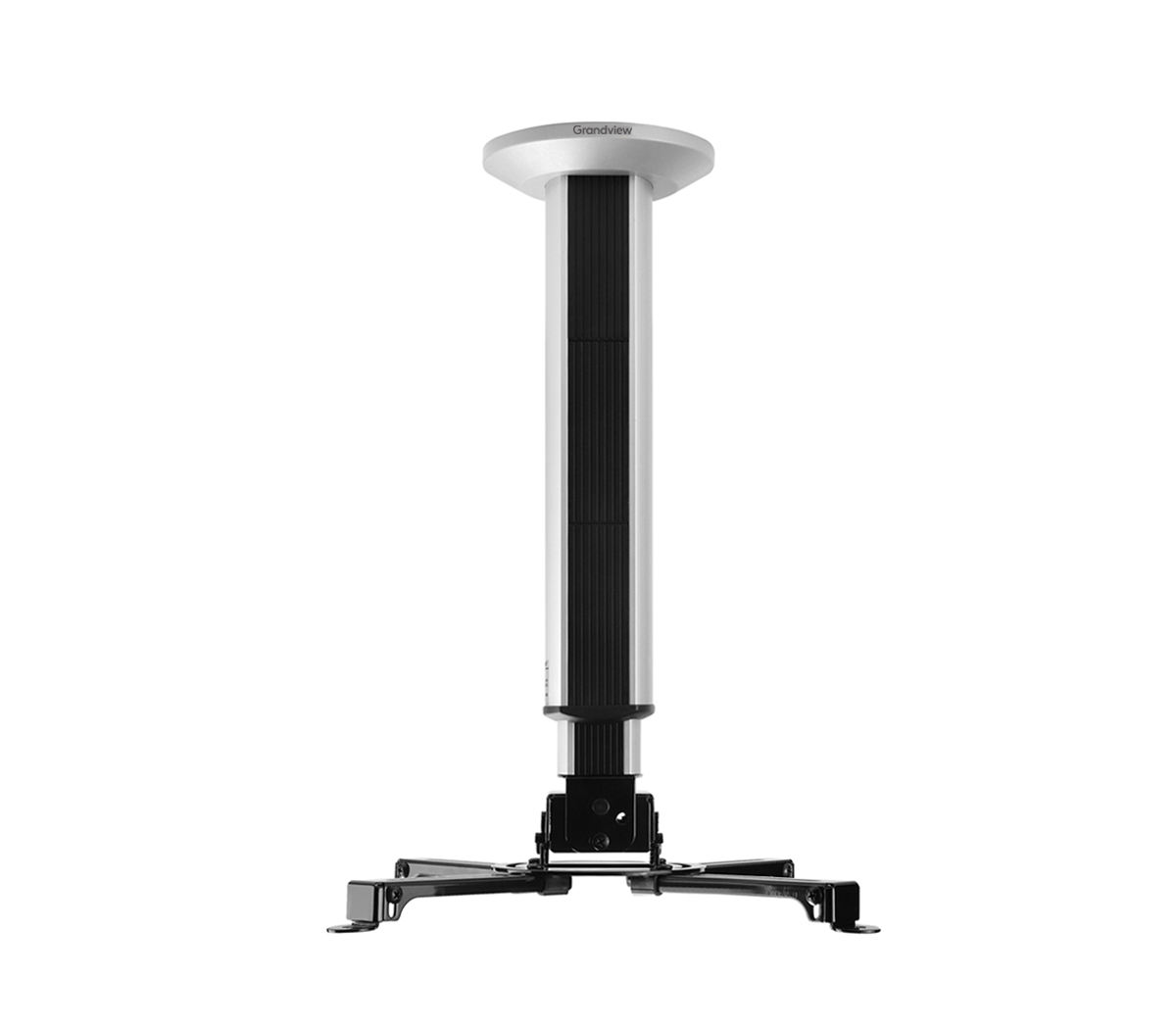

GPCM-D Series

Fixed Ceiling Mount

  • .Wire storage

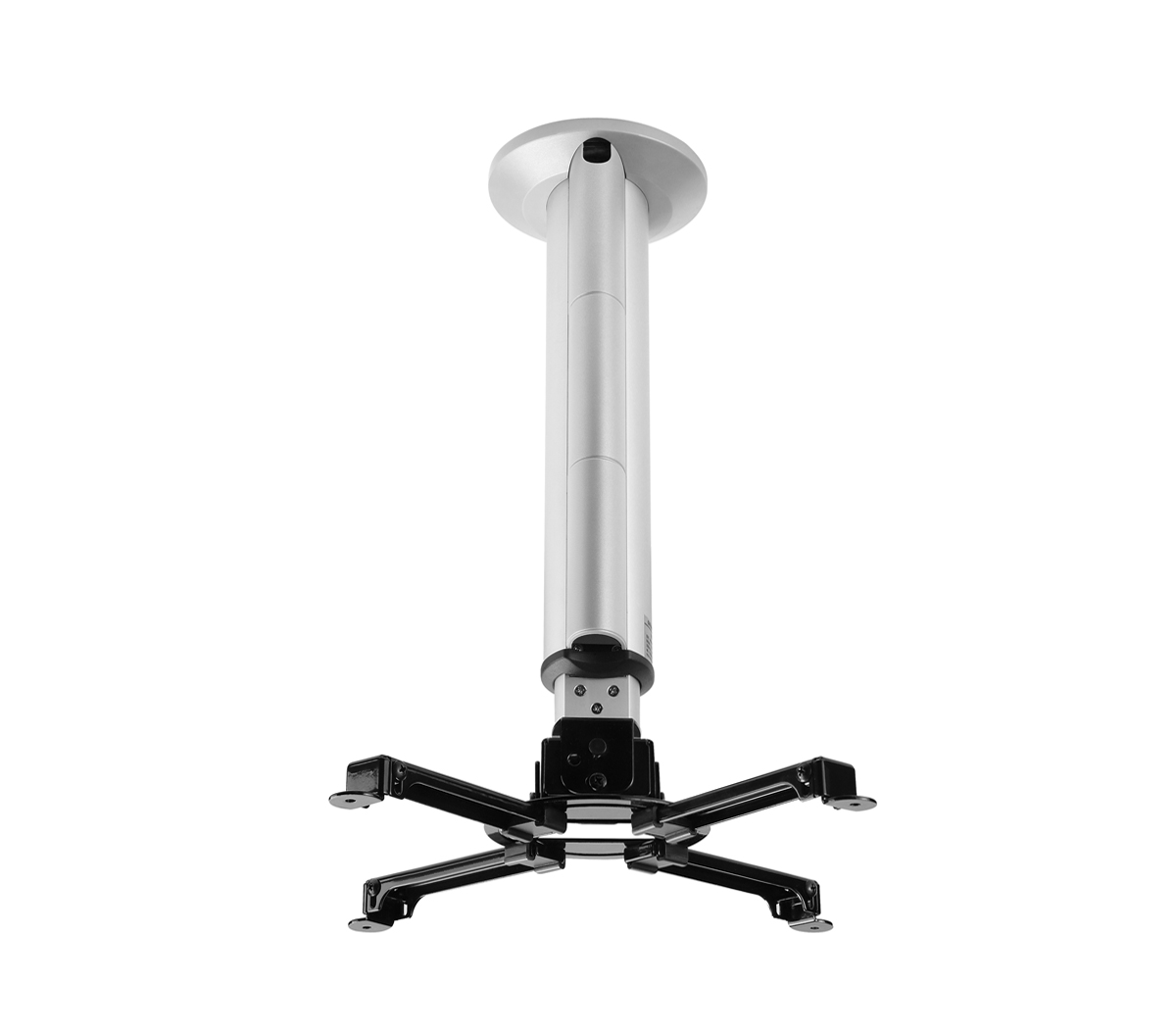

  • .Retractable pole

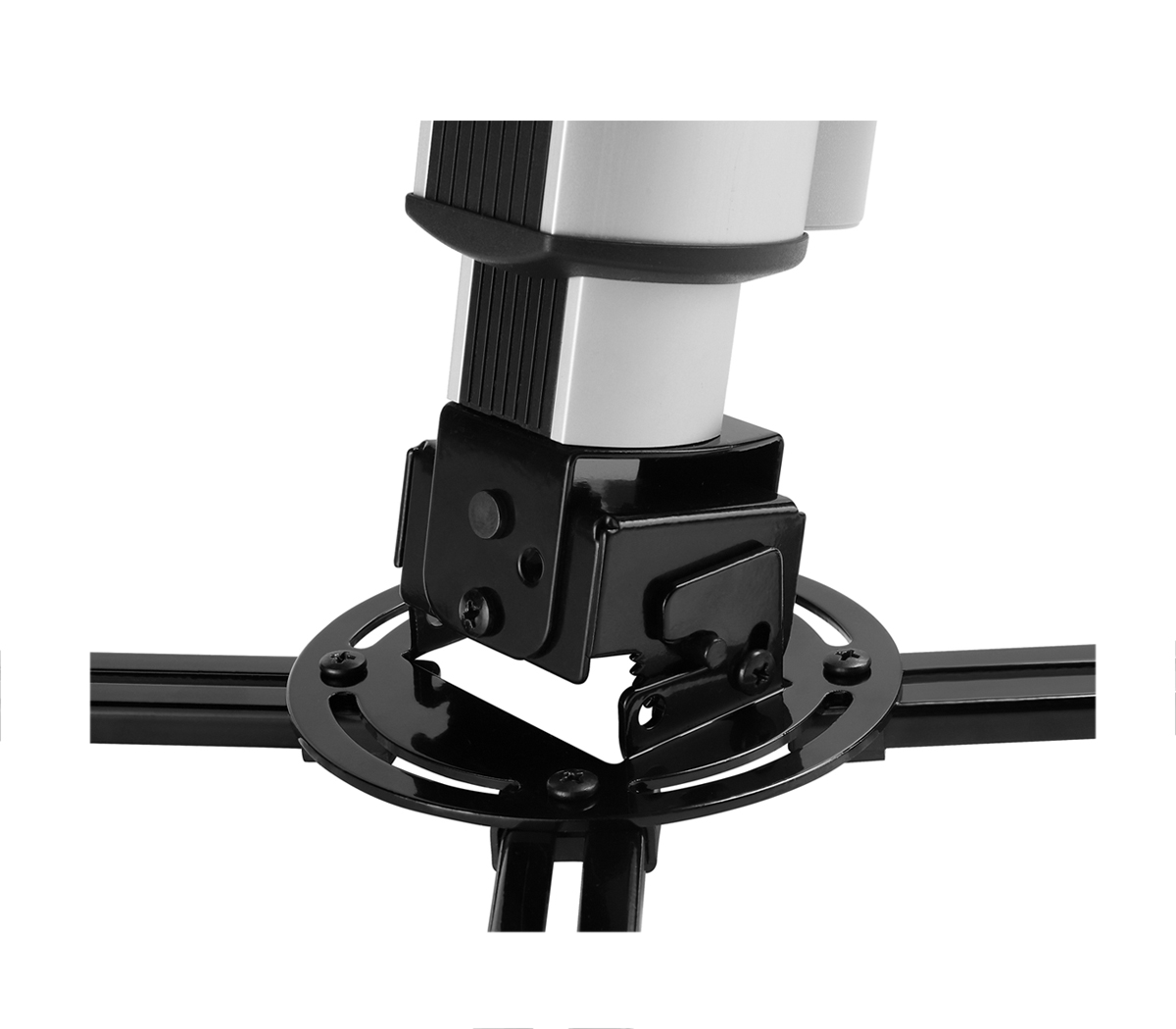

  • .Adjustable angle: front and rear direction, tilt forward 30°, backward 3°, Left and right 3°
  • .360°Horizontal rotation: 360°
  • Specs
  • Drawing
  • Video
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCM-D4060II
    • GPCM-D3040II
    • GPCM-D4060
    • GPCM-D3040
      • Product Dimensions(mm)

        270×270×430
      • Net Weight(kg)

        1.96
      • Max Load(kg)

        20
      • Max Travel(mm)
        430-605
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Applicable Hole
        Distance Of Projector(mm)
        φ50-φ360
      • Product Dimensions(mm)

        270×270×325
      • Net Weight(kg)

        1.79
      • Max Load(kg)

        20
      • Max Travel(mm)
        325-405
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Applicable Hole
        Distance Of Projector(mm)
        φ50-φ360
      • Product Dimensions(mm)

        265×265×430
      • Net Weight(kg)

        1.96
      • Max Load(kg)

        20
      • Max Travel(mm)
        430-625
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Applicable Hole
        Distance Of Projector(mm)
        φ50-φ360
      • Product Dimensions(mm)

        265×265×325
      • Net Weight(kg)

        1.79
      • Max Load(kg)

        20
      • Max Travel(mm)
        325-405
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Applicable Hole
        Distance Of Projector(mm)
        φ50-φ360
  • Sketch
  • Video
  • Download
    GPCM-D Instructions
    GPCM-D II Instructions
