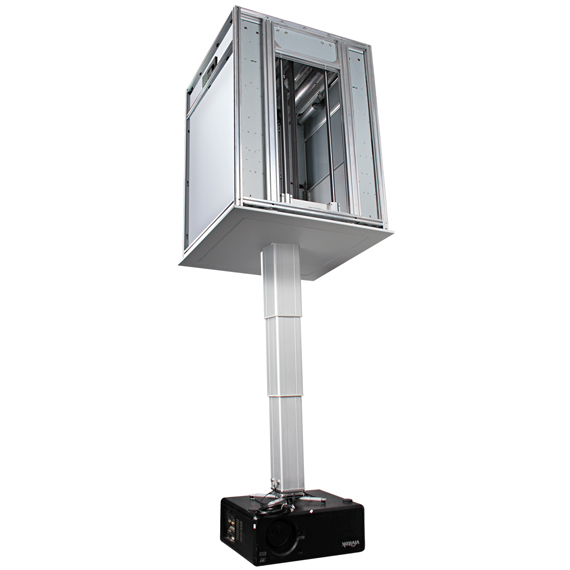

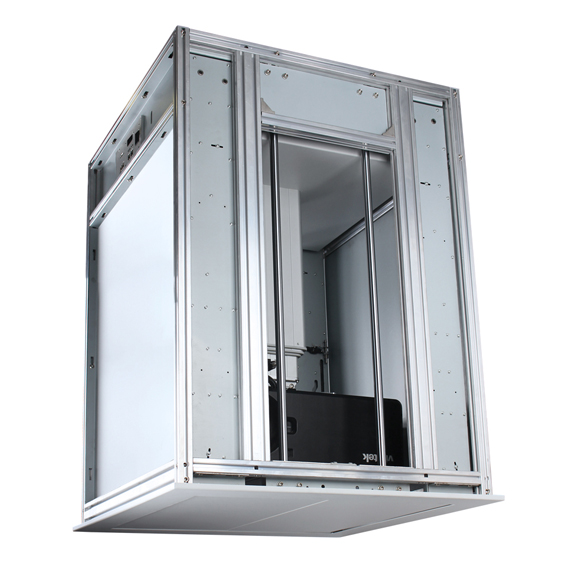

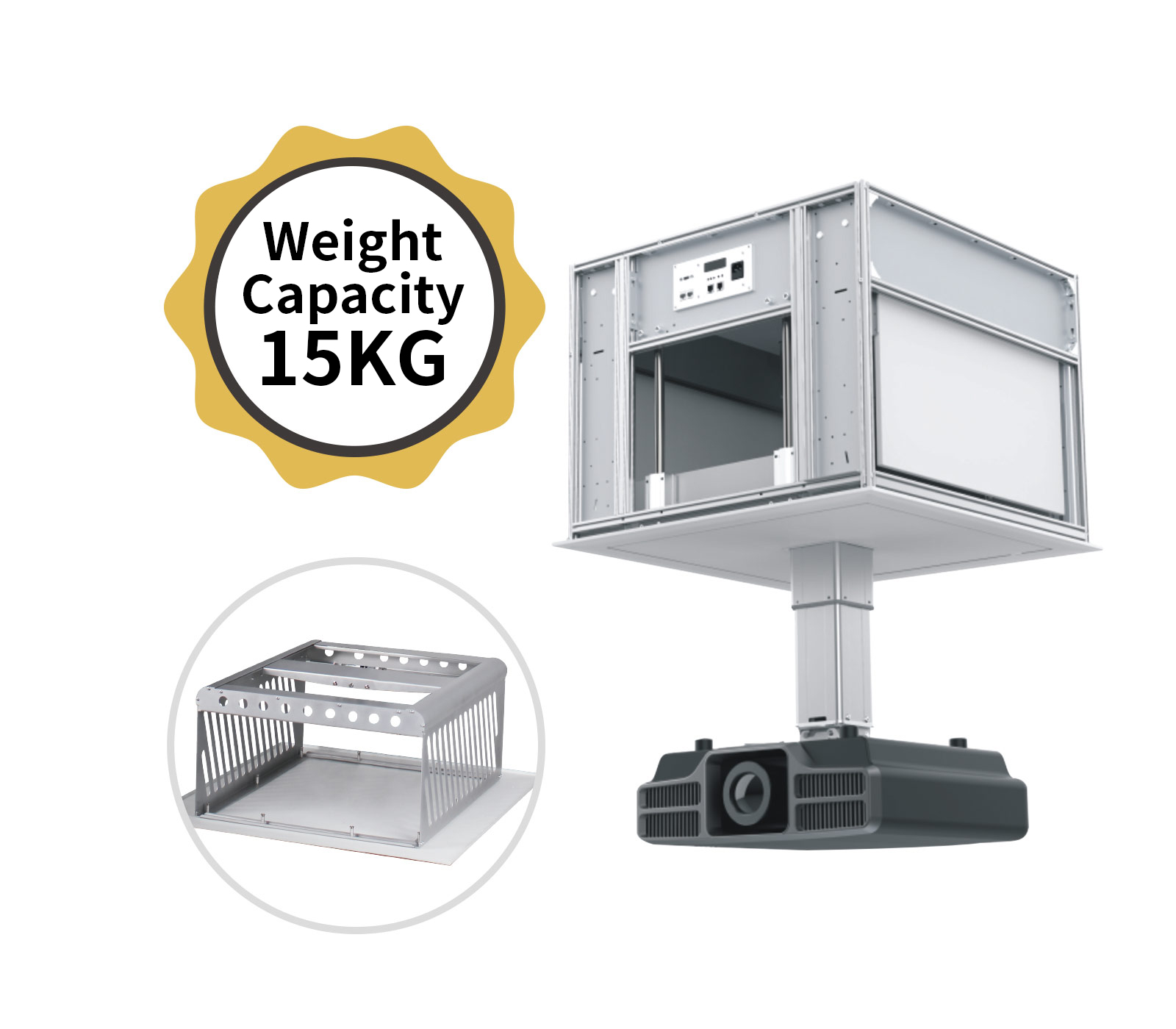

GPAD/AC 50 Series

Telescopic Projector Lift

  • Mitv GPAD/AC50 series compact telescopic rod projector lifter is specially designed for the low-ceiling place with only 60cm in the ceiling, which is suitable for home cinema and enterprise conference room with fine decoration, multiple single rod telescopic, delicate and introverted, rated load of 20kg.
  • Guide column type lifting, smooth operation, built-in force precision screw connection, multi-point bearing.
  • Major Function:
  • .Advanced guided load column design with builtin multipoint precision screw mechanism ensures stable operation
  • .The patented cable management system can be operated even without load
  • .Incorporated with various safety measures include multiple antidrop mechanism,fully enclosed aluminum alloy structure and industrial grade long-lasting motor
  • . Featuring multisection aluminum alloy square tube and inverted automatic twin doors allow stable operation; Highprecision digital encoder offers high positioning accuracy ≤ 1mm

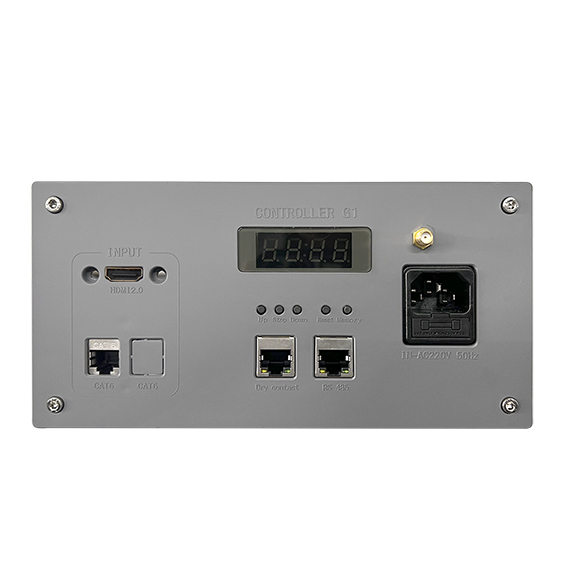

  • . Built-in cable: projector power cord × 1, HDMI2.0 × 1, 6 network cable × 2; (Customizable)
  • . Universal projector mounting claws, multiple angles adjustable

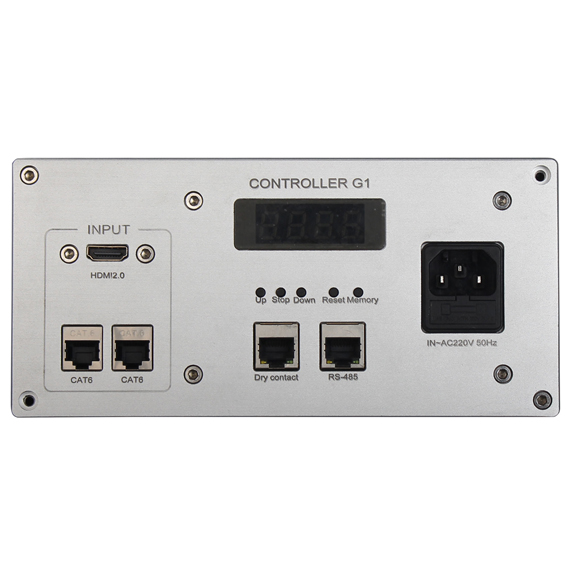

  • . Positioning methods: RF positioning and RS485 positioning
  • . Control modes: RF, dry contact and RS485 code
  • . the size of the projector is the recommended size for reference only. The actual size shall prevail.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPAD/AC 5010
    • GPAD/AC 5005
      • Product Dimensions(mm)

        640×640×787
      • Net Weight(kg)

        70
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        490x180x490
      • Max Load(kg)

        15
      • Power(w)

        100
      • Max Travel(mm)
        1000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        333x620
      • Decorative Plate
        Dimensions(mm)
        680x680
      • Ceiling Opening
        Dimensions(mm)
        655x655
      • Required Ceiling
        Opening Height(mm)
        >837
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        85
      • Packing Dimensions
        (D×W×H)mm
        760x937x760
      • Product Dimensions(mm)

        640×640×662
      • Net Weight(kg)

        60
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        490x180x490
      • Max Load(kg)

        15
      • Power(w)

        100
      • Max Travel(mm)
        500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        333x620
      • Decorative Plate
        Dimensions(mm)
        680x680
      • Ceiling Opening
        Dimensions(mm)
        655x655
      • Required Ceiling
        Opening Height(mm)
        >712
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        75
      • Packing Dimensions
        (D×W×H)mm
        760x812x760
  • Sketch
  • Standard Accessories

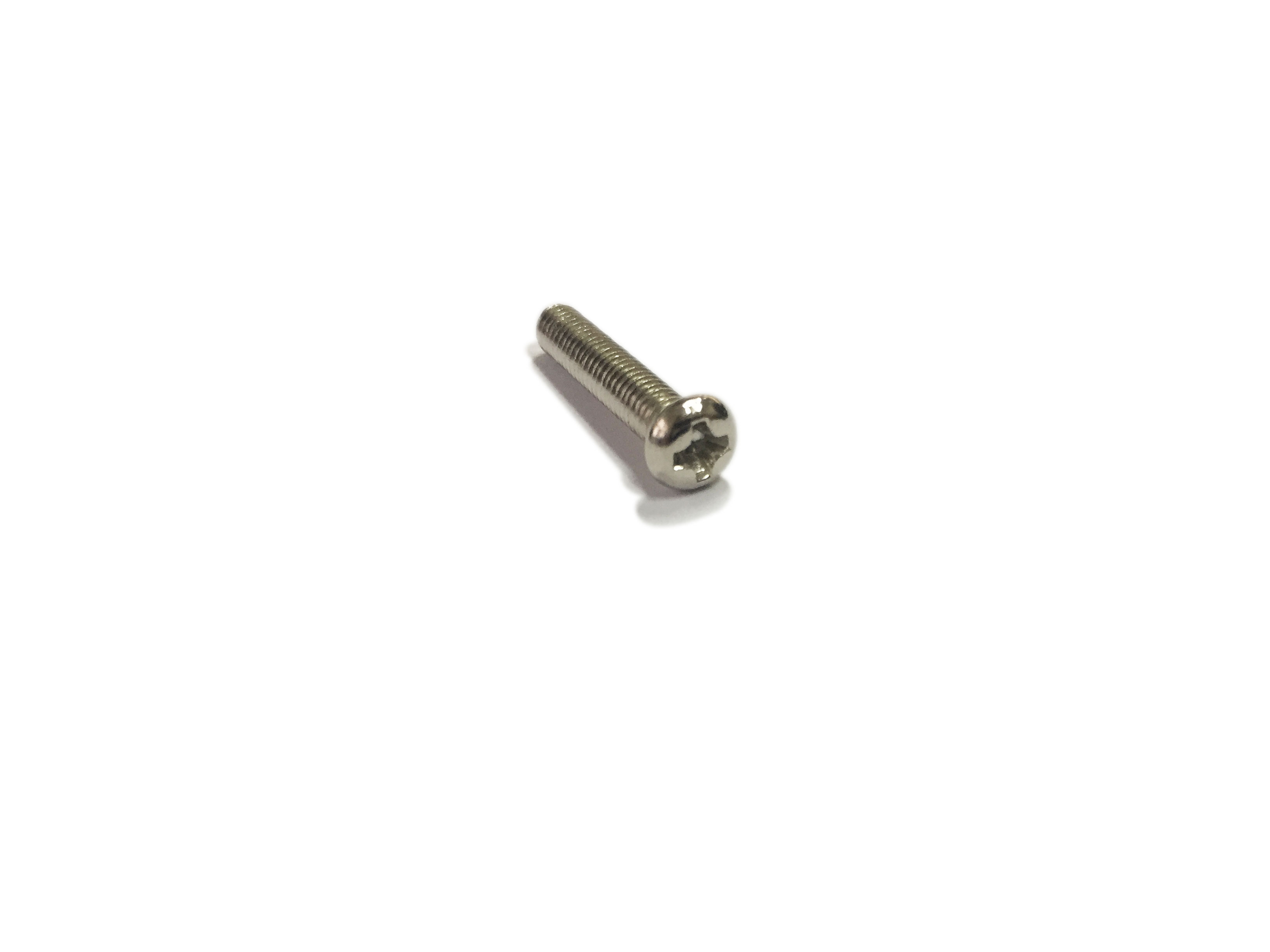

    • 4x25 screw(4pcs)

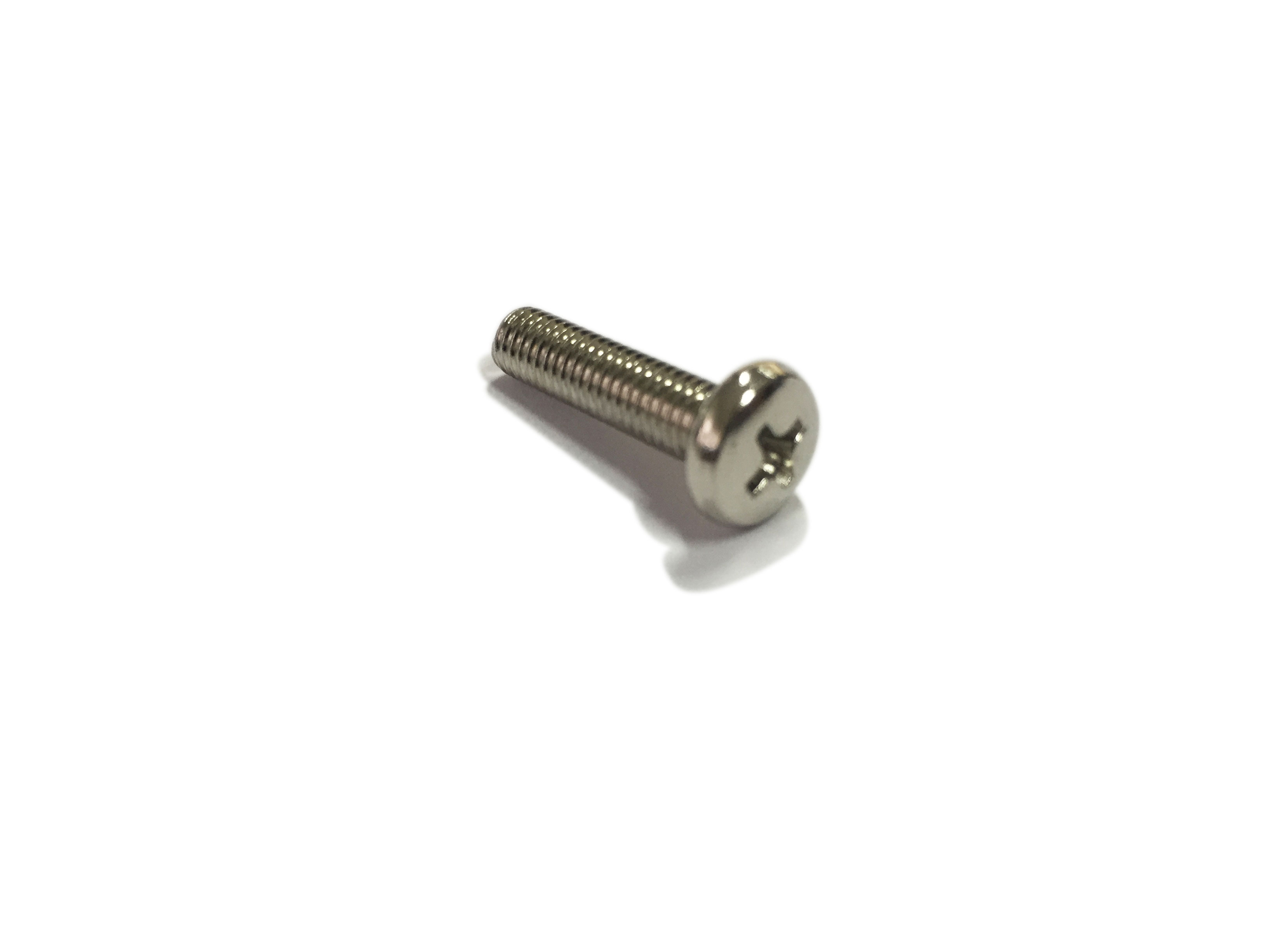

    • 6x25 screw(4pcs)
    • 5x25 screw(4pcs)

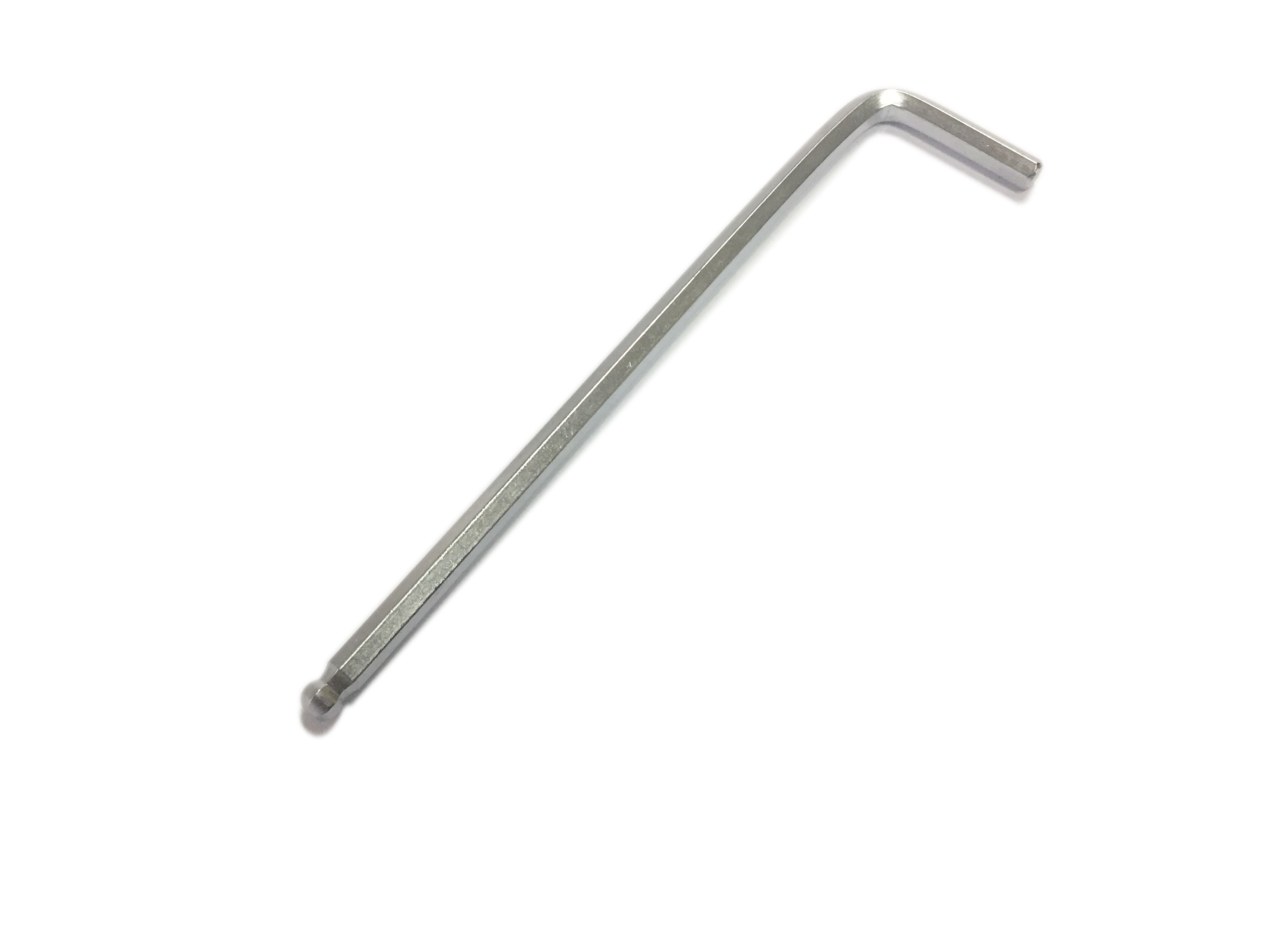

    • Limit Adjustment Tool

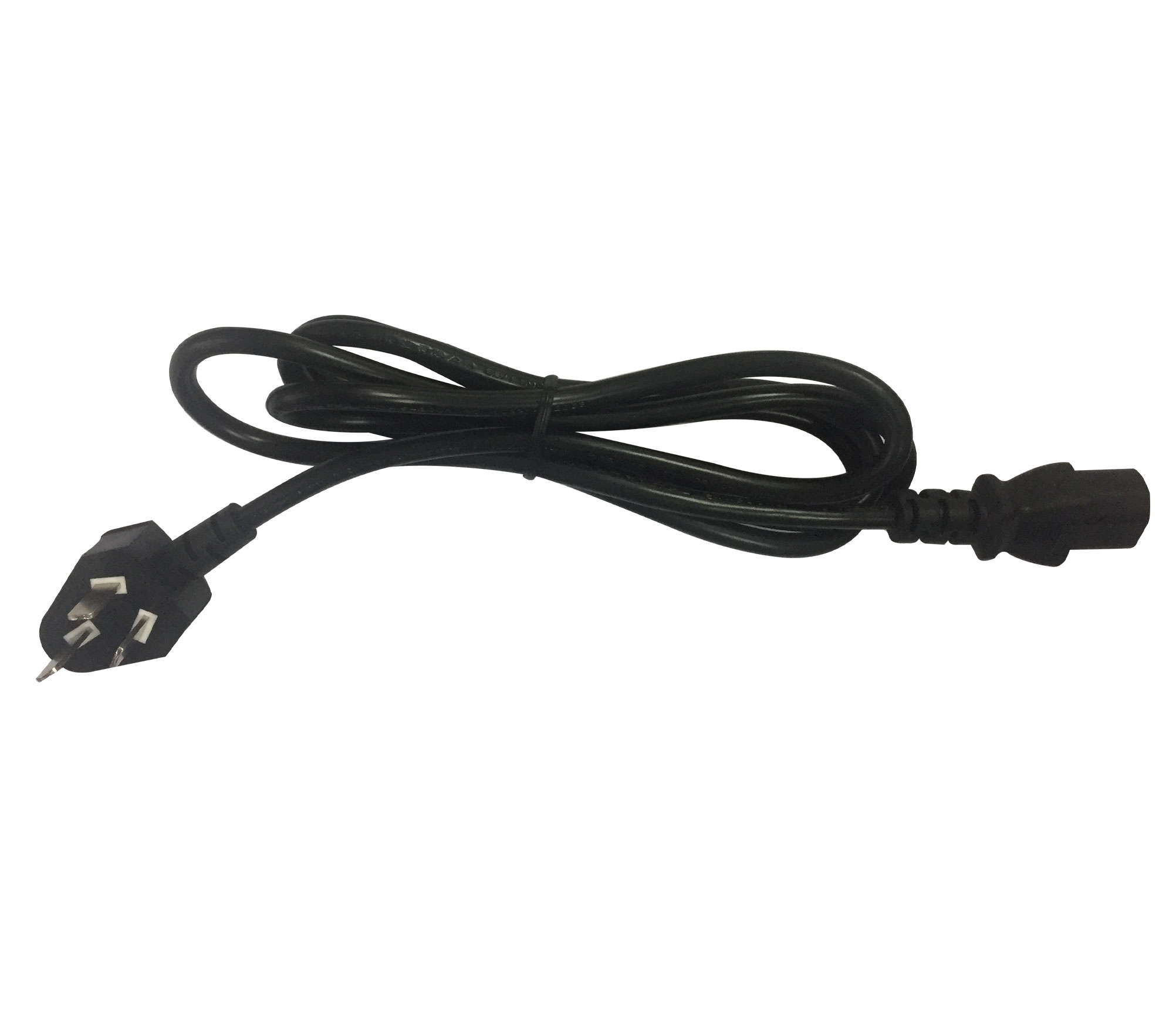

    • power line

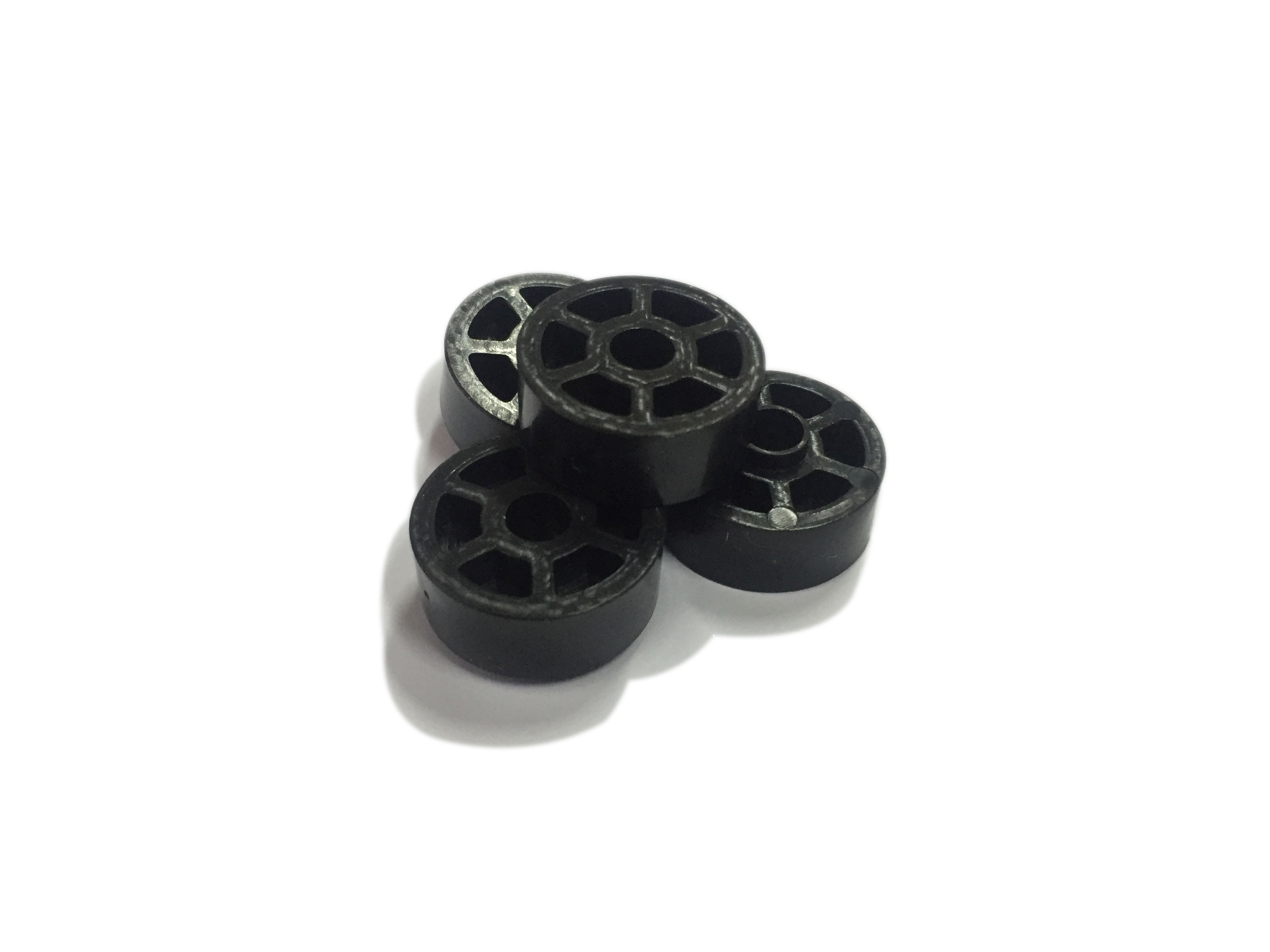

    • gasket

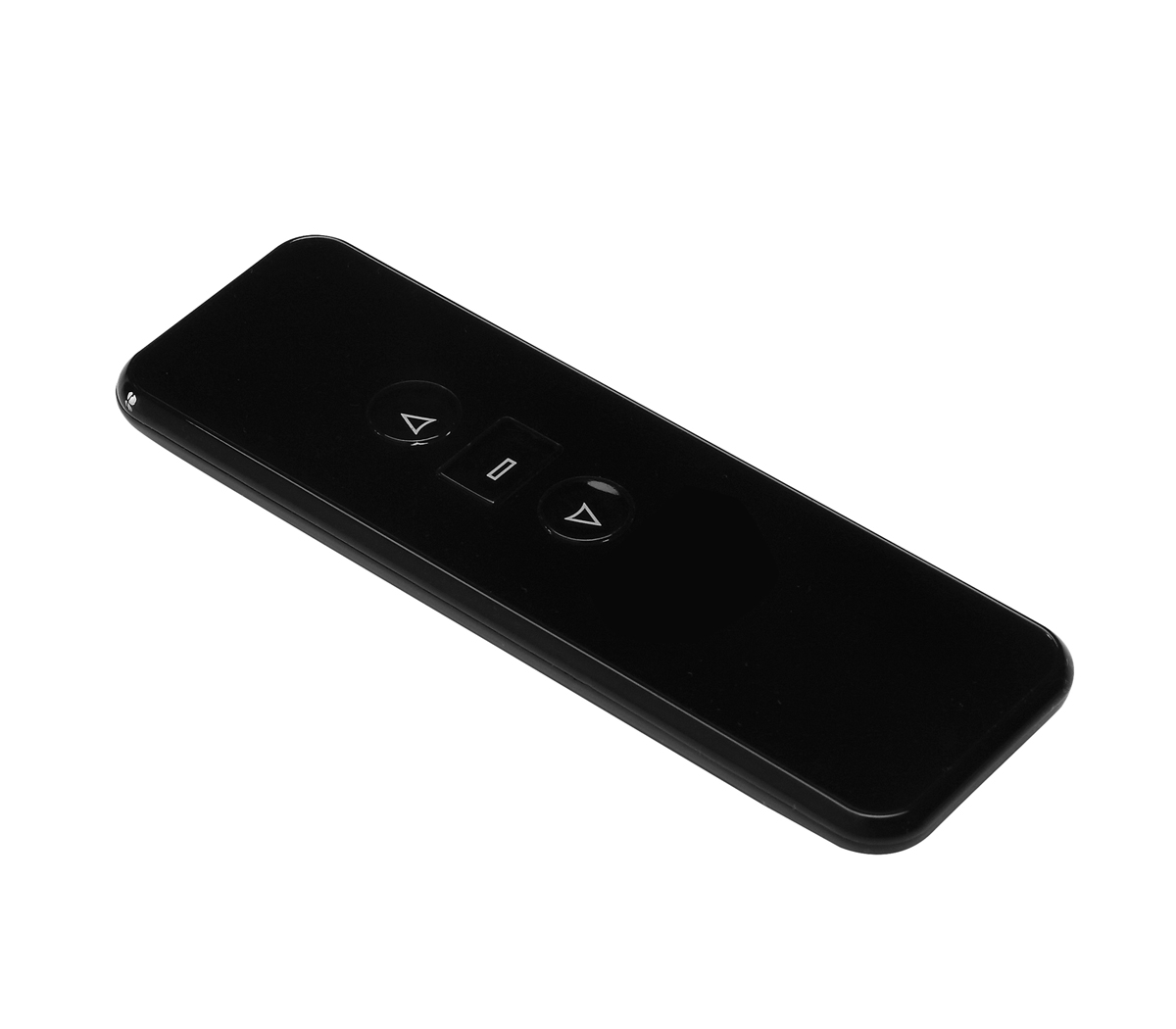

    • RF Remote Control
    Control Options
    • Wireless RF
    • RS485

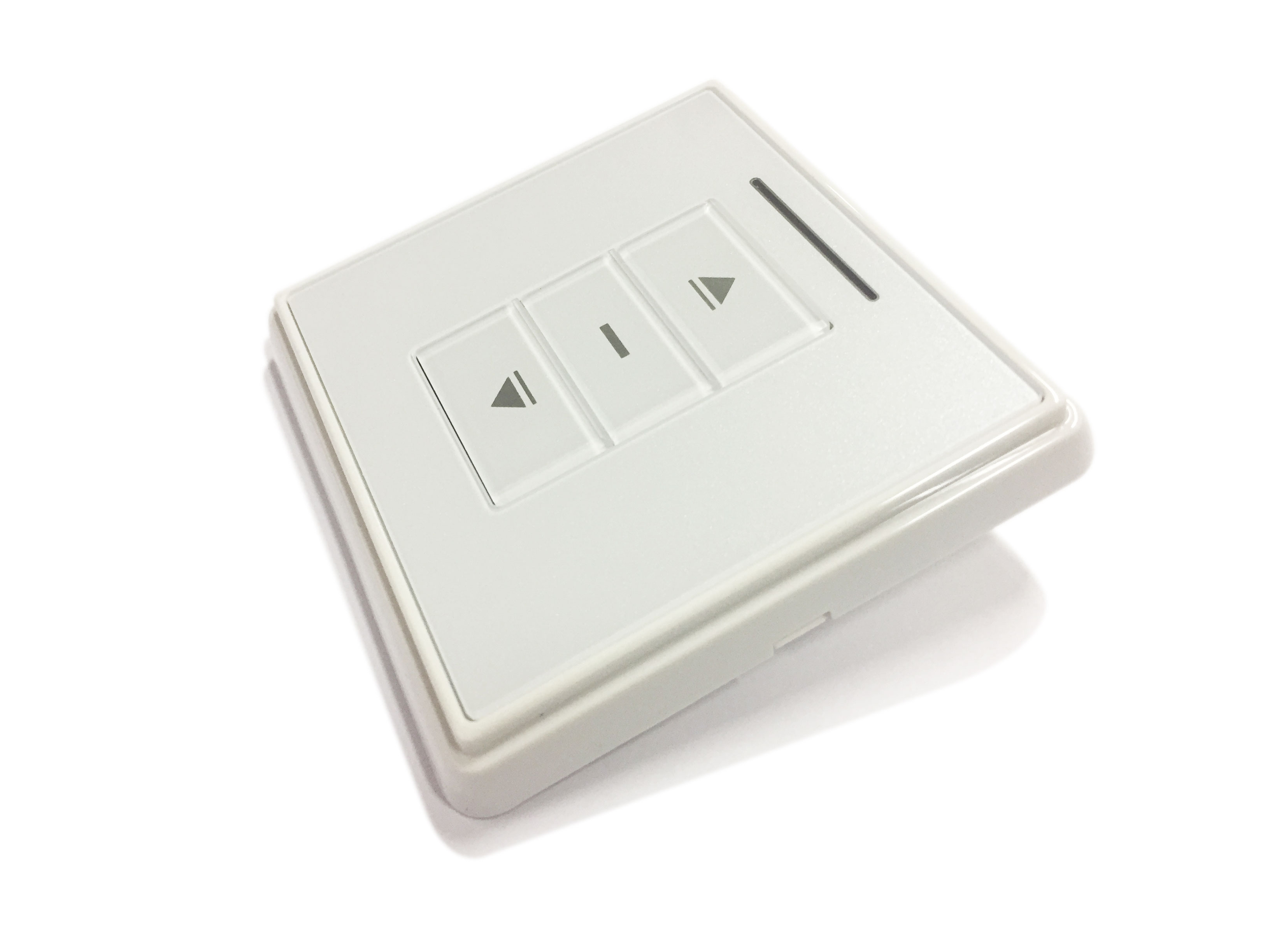

    • Wall Swtich
  • Download
    GPAD/AC 50 Series Instructions
    GPAD/AC 50 Toptu
