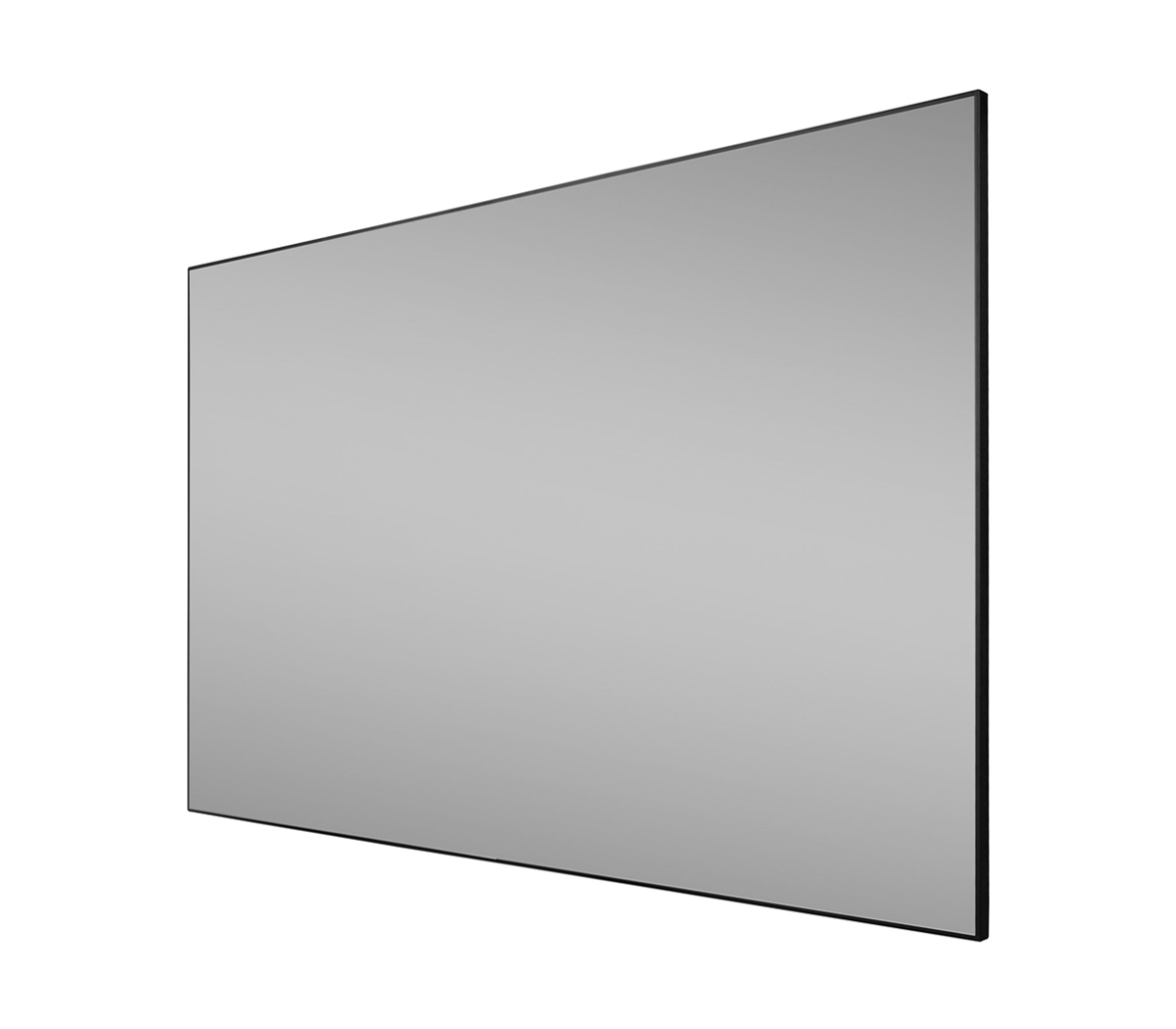

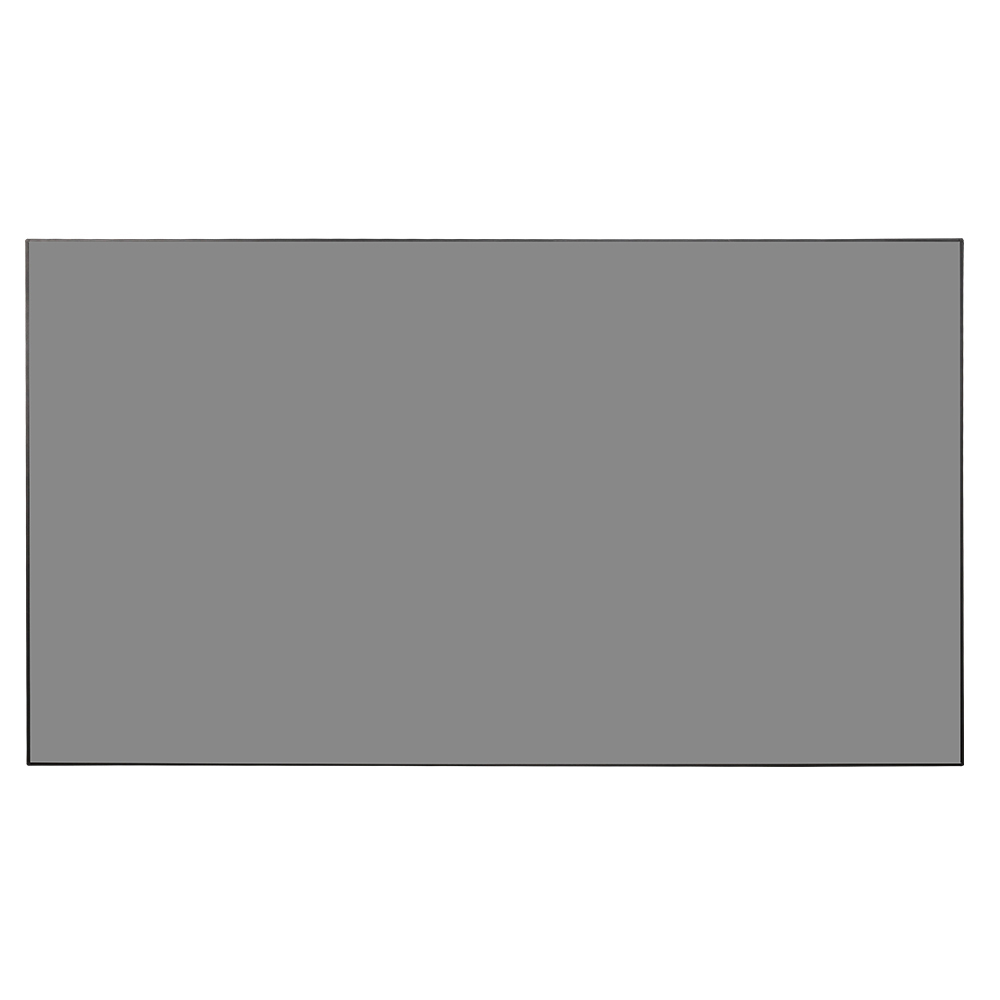

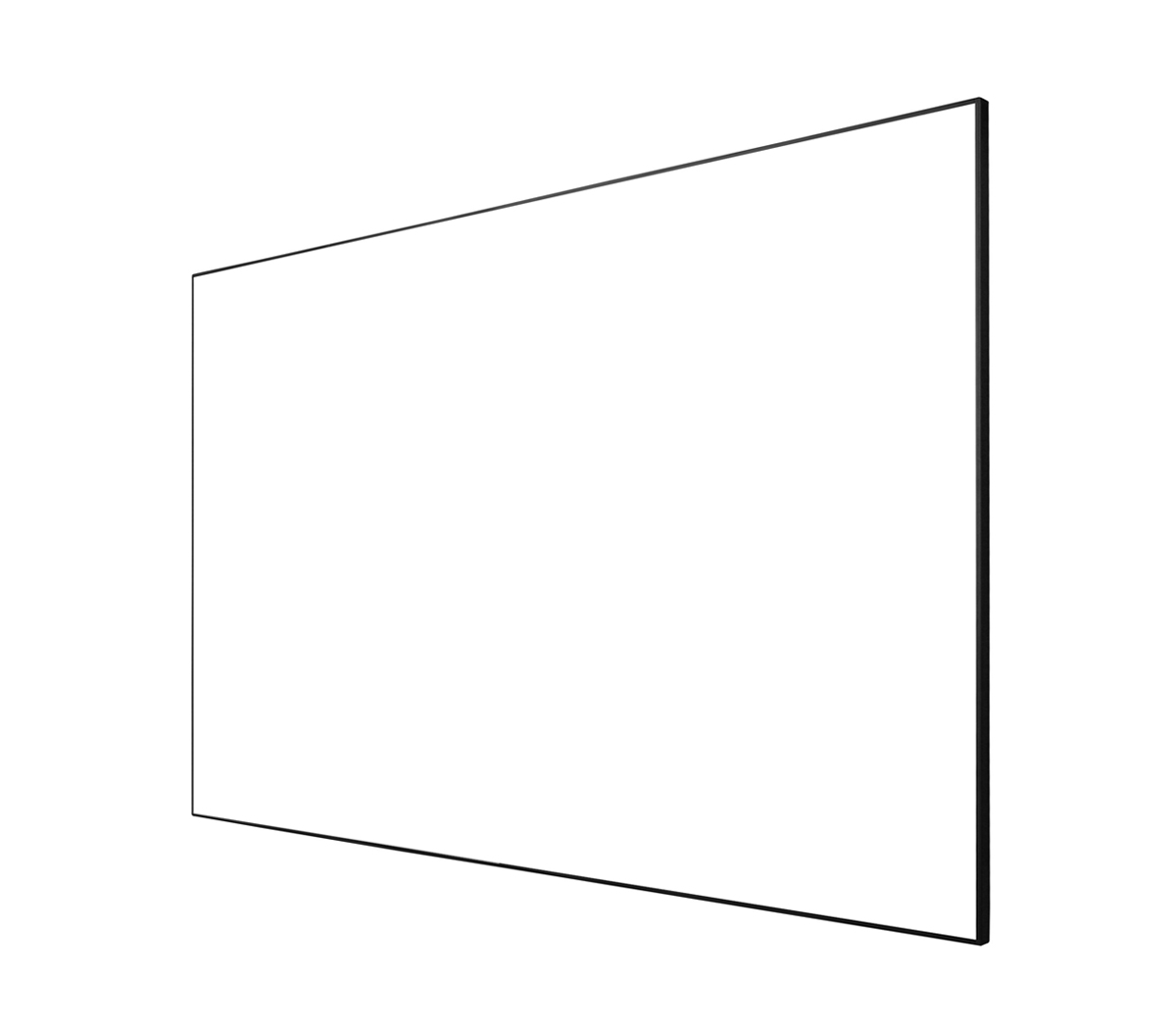

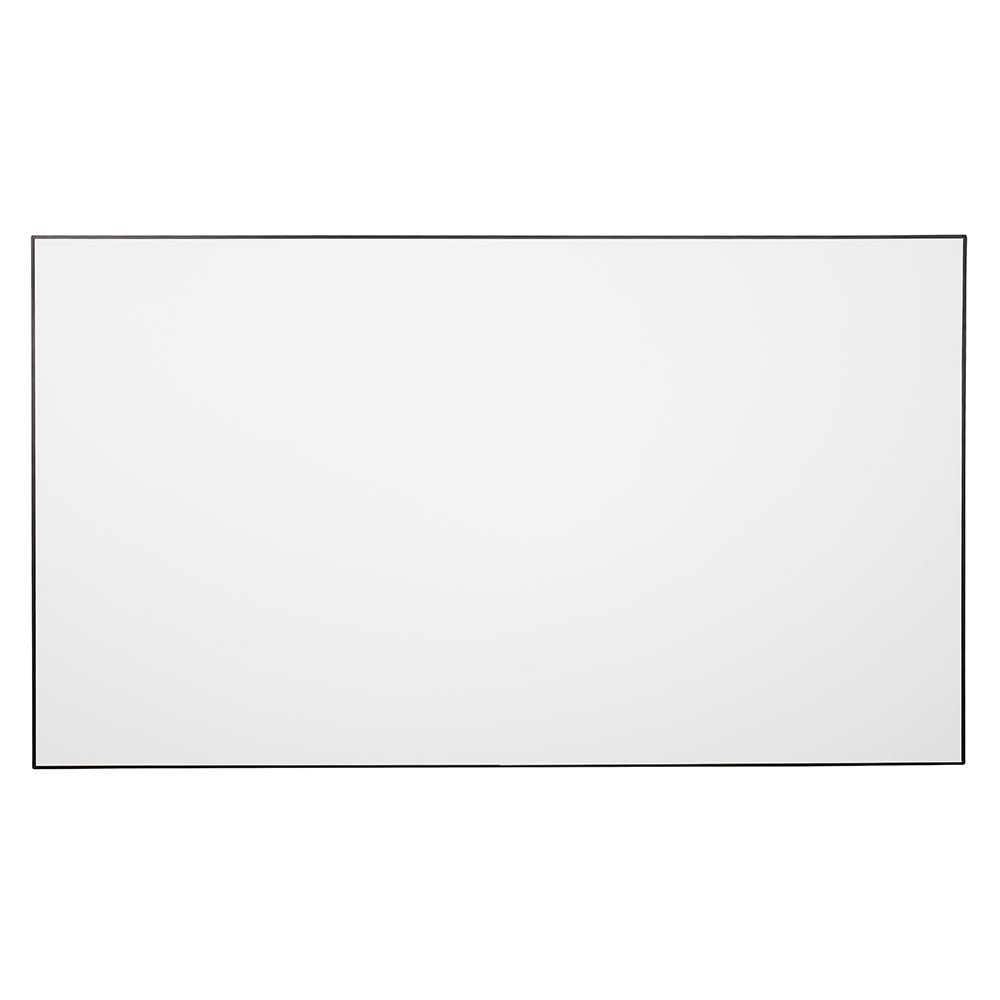

Edge Series Fixed Frame Screen - R4

  • As projection technology has advanced, the ability to project into a precise space has become the norm. Thus, it is no longer mandatory for a wider frame to be used to absorb offset projections. With that, Grandview's Edge Series Fixed-Frame screens offer another beautifully designed option to its collection. With a frame that only measures 15mm in width, it's designed to maximize your viewing experience while minimizing installation space.

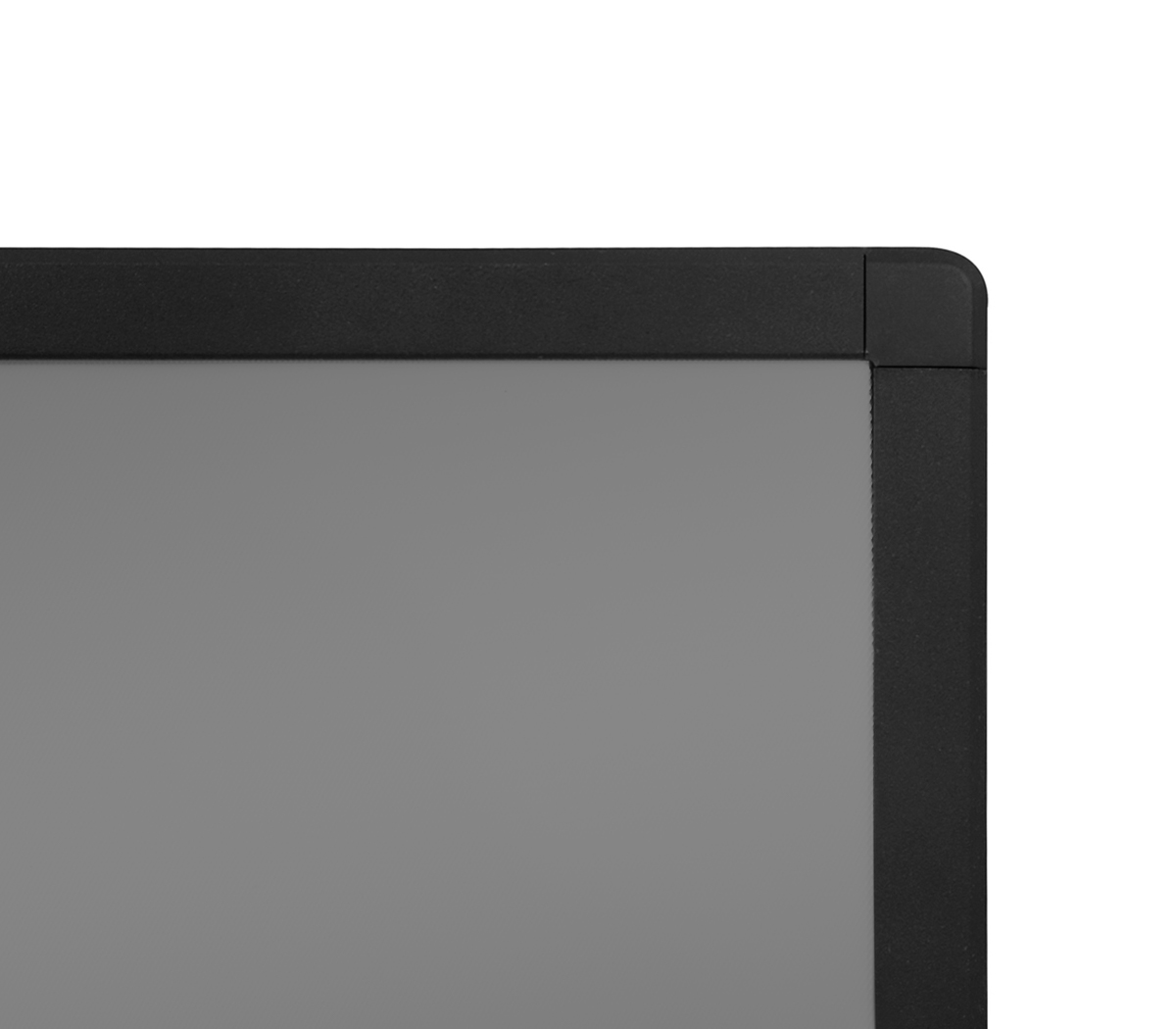

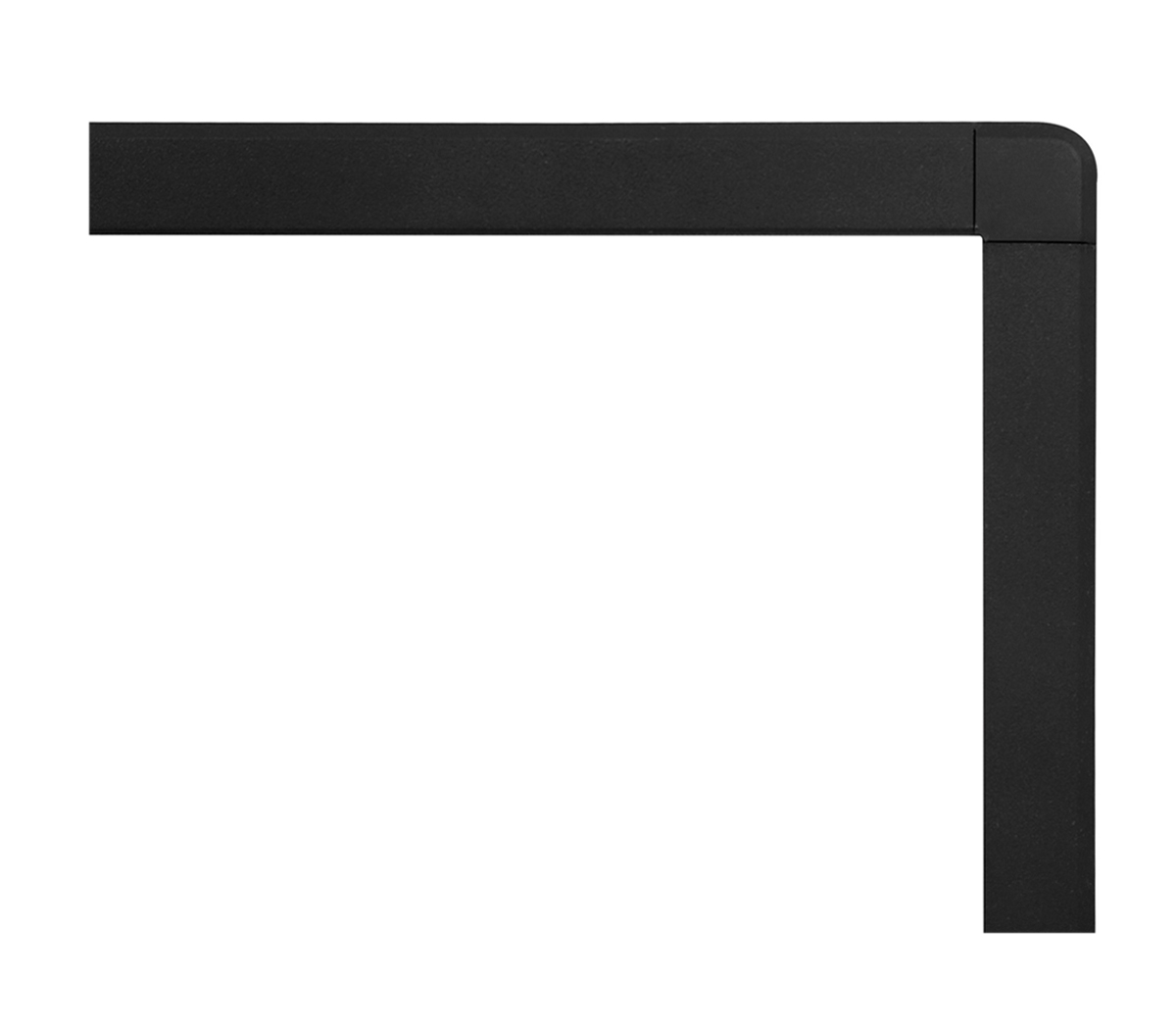

  • • Frame options：12mm / 15mm
  • • DY1C / DY1D / DY1D-UW Maximum size:120"(16:9)
  • • DY3 / DY5 Maximum size:120"(16:9)
  • • DY3-T Maximum size:100"(16:9)
  • • 150 inches Maximum size of Standard throw screen
  • Options
  • Fabrics
  • Specs
  • Download

  • FAQ

  • Share

  • Standard Accessories

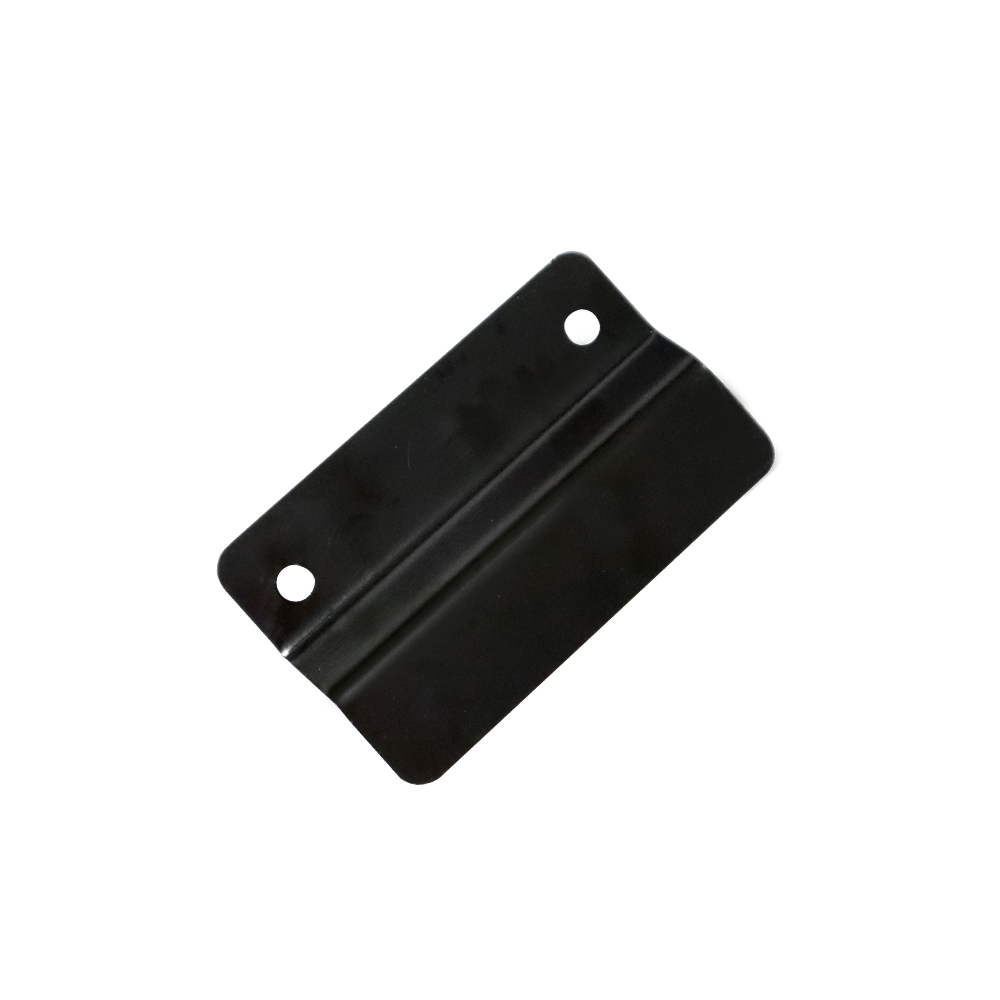

    • Hanging Plate

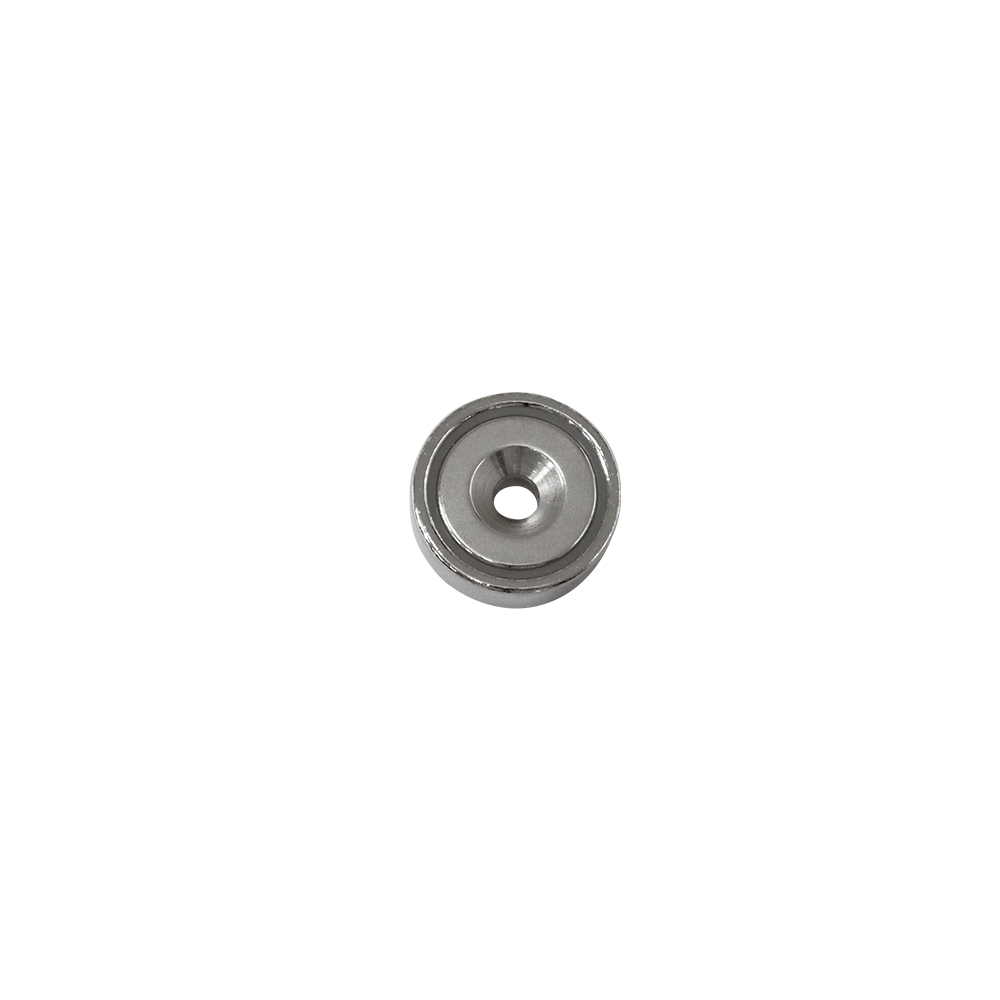

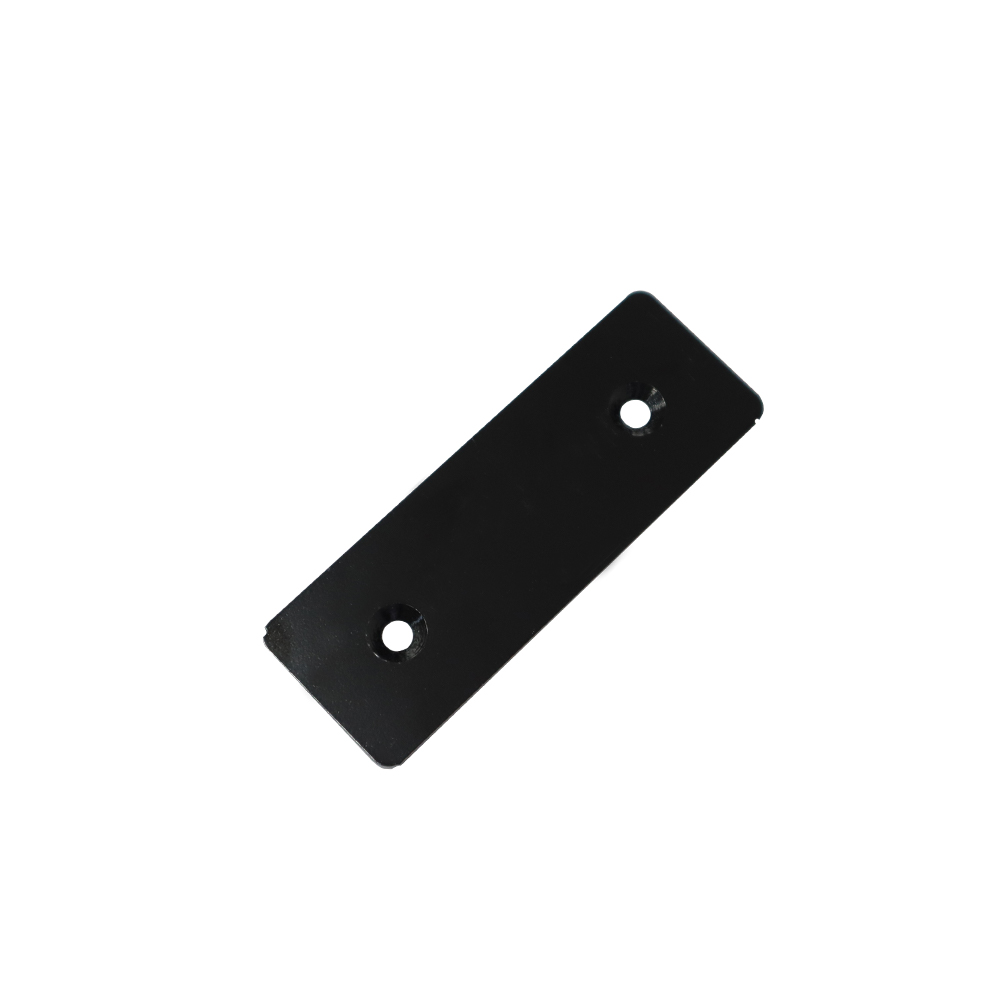

    • Magnet Plate
    • Magnet + attaching chip
  • Fabrics
    • UHD130
      • Viewing
        Angle
        130°
      • Gain
        1.3
    • WW5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • DY1C
      • Viewing
        Angle
        >56°
      • Gain
        1.6
    • DY1D
      • Viewing
        Angle
        50°
      • Gain
        1.3
    • DY2C-P
      • Viewing
        Angle
        >56°
      • Gain
        1.5
    • Black Grid (DY3)
      • Viewing
        Angle
        140°
      • Gain
        0.5
    • Black Grid(DY3T)
      • Viewing
        Angle
        140°
      • Gain
        0.5
    • DY4
      • Viewing
        Angle
        140°
      • Gain
        0.6
    • Black Grid(DY5)
      • Viewing
        Angle
        140°
      • Gain
        0.6
    • DY7
      • Viewing
        Angle
        140°
      • Gain
        1.2
    • Edge-Lite Series - DY1D-UW
      DY1D-UW
      • Viewing
        Angle
        135°
      • Gain
        1.0
  • Specs
    • 12mm
    • 15mm
    • Model
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        80"
        1777 × 1002
        1026
        -
        -
        -
        1801
        12
        12
        84"
        1866 × 1052
        1076
        -
        -
        -
        1890
        12
        12
        92"
        2043 × 1152
        1176
        -
        -
        -
        2067
        12
        12
        96"
        2131 × 1201
        1225
        -
        -
        -
        2155
        12
        12
        100"
        2221 × 1251
        1275
        -
        -
        -
        2245
        12
        12
        106"
        2353 × 1326
        1350
        -
        -
        -
        2377
        12
        12
        110"
        2441 × 1376
        1400
        -
        -
        -
        2465
        12
        12
        112"
        2485 × 1401
        1425
        -
        -
        -
        2509
        12
        12
        120"
        2663 × 1500
        1524
        -
        -
        -
        2687
        12
        12
        133"
        2950 × 1662
        1686
        -
        -
        -
        2974
        12
        12
        145"
        3216 × 1812
        1836
        -
        -
        -
        3240
        12
        12
        150"
        3327 × 1874
        1898
        -
        -
        -
        3351
        12
        12
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        80"
        1729 × 1083
        1107
        -
        -
        -
        1753
        12
        12
        84"
        1815 × 1137
        1161
        -
        -
        -
        1839
        12
        12
        92"
        1988 × 1245
        1269
        -
        -
        -
        2012
        12
        12
        96"
        2074 × 1298
        1322
        -
        -
        -
        2098
        12
        12
        100"
        2160 × 1352
        1376
        -
        -
        -
        2184
        12
        12
        106"
        2289 × 1433
        1457
        -
        -
        -
        2313
        12
        12
        110"
        2375 × 1487
        1511
        -
        -
        -
        2399
        12
        12
        112"
        2418 × 1514
        1538
        -
        -
        -
        2442
        12
        12
        120"
        2591 × 1621
        1645
        -
        -
        -
        2615
        12
        12
        133“"
        2871 × 1796
        1820
        -
        -
        -
        2895
        12
        12
        145"
        3129 × 1958
        1982
        -
        -
        -
        3153
        12
        12
        150"
        3237 × 2025
        2049
        -
        -
        -
        3261
        12
        12
    • Model
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        80"
        1771 × 996
        1026
        -
        -
        -
        1801
        15
        15
        84"
        1860 × 1046
        1076
        -
        -
        -
        1890
        15
        15
        92"
        2037 × 1146
        1176
        -
        -
        -
        2067
        15
        15
        96"
        2125 × 1195
        1225
        -
        -
        -
        2155
        15
        15
        100"
        2215 × 1245
        1275
        -
        -
        -
        2245
        15
        15
        106"
        2347 × 1320
        1350
        -
        -
        -
        2377
        15
        15
        110"
        2435 × 1370
        1400
        -
        -
        -
        2465
        15
        15
        112"
        2479 × 1395
        1425
        -
        -
        -
        2509
        15
        15
        120"
        2657 × 1494
        1524
        -
        -
        -
        2687
        15
        15
        133"
        2944 × 1656
        1686
        -
        -
        -
        2974
        15
        15
        145"
        3210 × 1806
        1836
        -
        -
        -
        3240
        15
        15
        150"
        3321 × 1868
        1898
        -
        -
        -
        3351
        15
        15
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        80"
        1723 × 1077
        1107
        -
        -
        -
        1753
        15
        15
        84"
        1809 × 1131
        1161
        -
        -
        -
        1839
        15
        15
        92"
        1982 × 1239
        1269
        -
        -
        -
        2012
        15
        15
        96"
        2068 × 1292
        1322
        -
        -
        -
        2098
        15
        15
        100"
        2154 × 1346
        1376
        -
        -
        -
        2184
        15
        15
        106"
        2283 × 1427
        1457
        -
        -
        -
        2313
        15
        15
        110"
        2369 × 1481
        1511
        -
        -
        -
        2399
        15
        15
        112"
        2412 × 1508
        1538
        -
        -
        -
        2442
        15
        15
        120"
        2585 × 1615
        1645
        -
        -
        -
        2615
        15
        15
        133"
        2865 × 1790
        1820
        -
        -
        -
        2895
        15
        15
        145"
        3123 × 1952
        1982
        -
        -
        -
        3153
        15
        15
        150"
        3231 × 2019
        2049
        -
        -
        -
        3261
        15
        15
  • Download
    Edge Series(R4) Fixed Frame Screen(lugs) -User Manual
    PDF
    Product Catalog
    PDF
    Installing The Black Acoustic Mesh
    PDF
