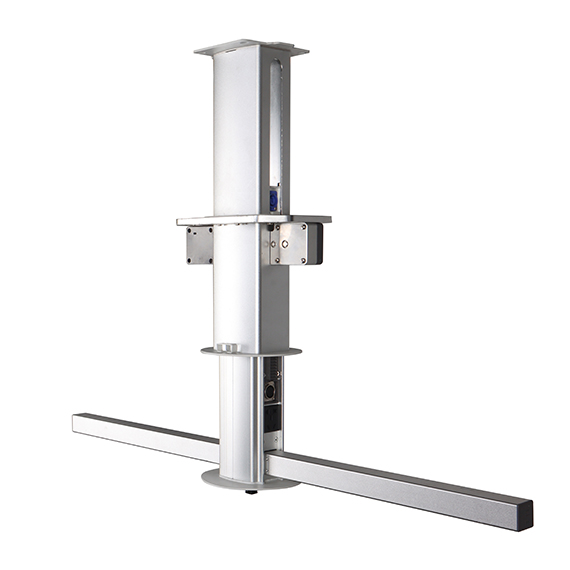

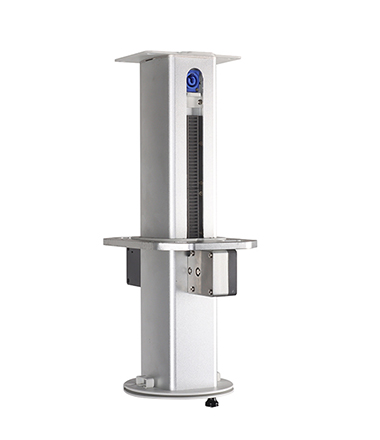

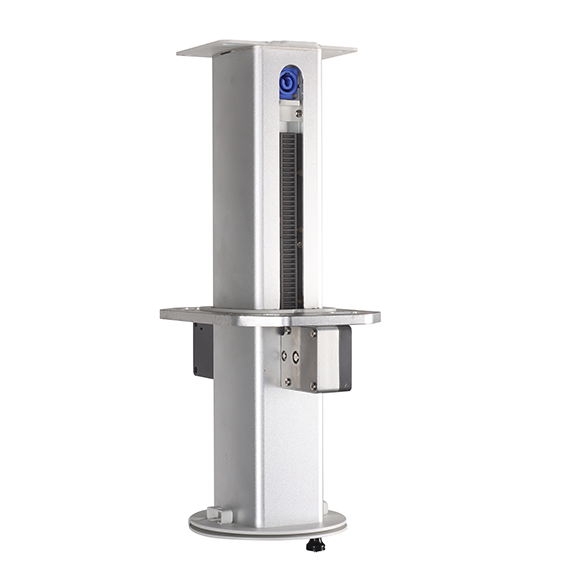

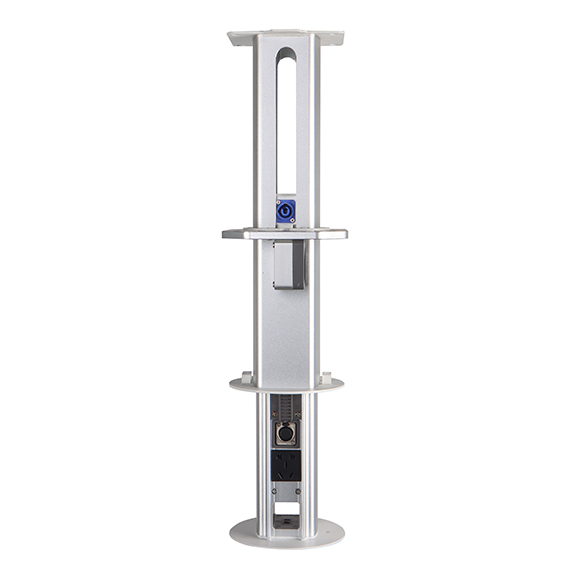

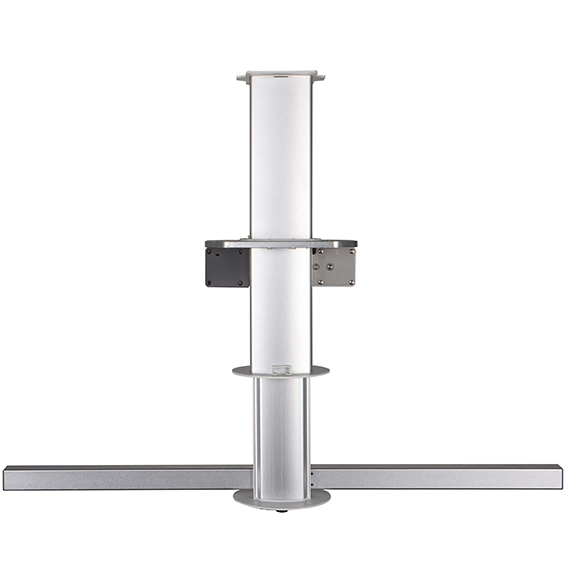

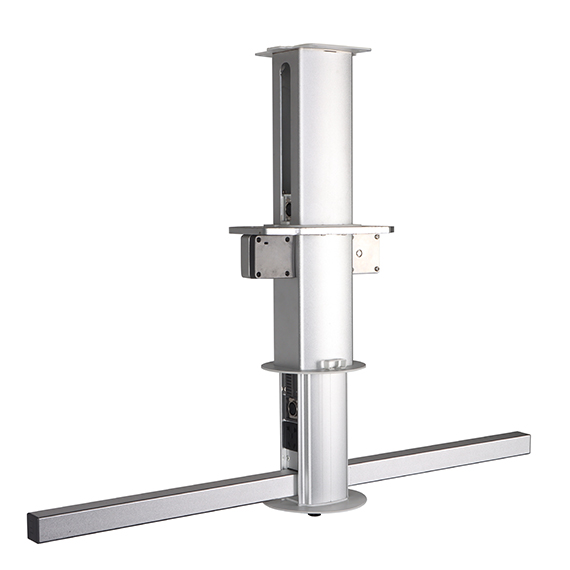

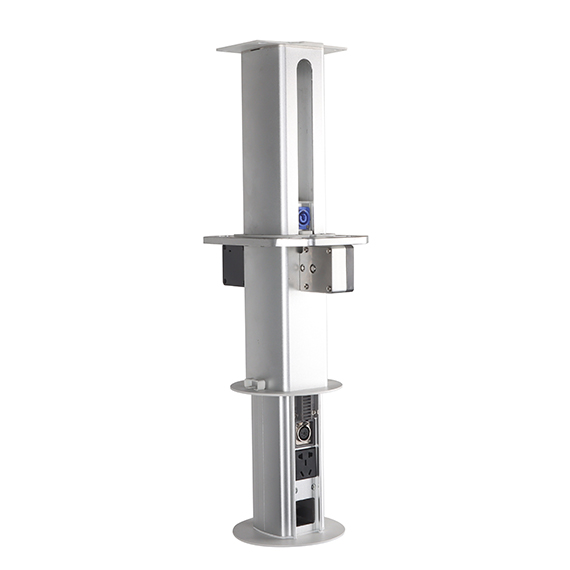

GSFL Series

Multi Purpose Mount

  • The manual lighting boom is specially used for the temporary hoisting of stage lighting equipment. It is suitable for the space where the hoisting points are scattered, the building height is limited, and the net height in the ceiling is low.
  • Widely used in conference centers, banquet halls, wedding chapels, fashion show runways, exhibition halls, press conference halls, small and medium-sized conference rooms and other places. All transmission mechanisms and control systems of the boom are hidden in the rod, with precise operation and coordination, neat appearance, reliable, safe and durable.
  • Major Function:
  • Fixed extension distance: 200-400mm

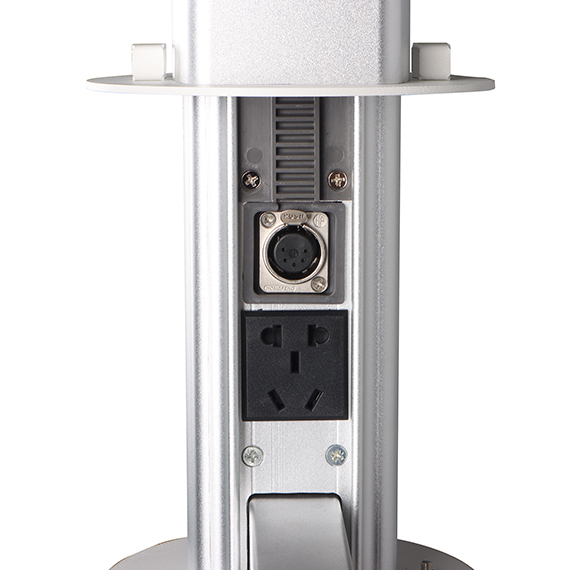

  • Power supply voltage and current: 2-4 groups of AC 220V 16A output, 2 groups of DMX512 signal output
  • Lifting method: gravity drop, manual push up
  • Safety protection device: After pushing to the top, multi-purpose pins are inserted to prevent falling
  • Specs
  • Drawing
  • Video
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GSFL-3004
    • GSFL-3002
      • Product Dimensions(mm)

        165×242×875
      • Net Weight(kg)

        8
      • Max Load(kg)

        300
      • Max Travel(mm)
        400
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • jib attachment(mm)
        130x90
      • Ceiling Opening
        Dimensions(mm)
        φ175xx
      • Applicable Hole
        Distance Of Projector(mm)
        ≥500
      • Product Dimensions(mm)

        165×242×475
      • Net Weight(kg)

        6
      • Max Load(kg)

        300
      • Max Travel(mm)
        200
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • jib attachment(mm)
        130x90
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Applicable Hole
        Distance Of Projector(mm)
        ≥500
