GLCC25/06 Series

Projector Lifts

  • GLCC is used in conference rooms, monitoring rooms, audio-visual halls and other places. Built-in patented wiring method, the required audio-visual cables have been configured at the factory; built-in optocoupler components, the travel can be arbitrarily installed through electronic limit; support weak current dry contact / RS-45/RF control, the lifting is smooth and quiet, and the overall is simple.
  • Major Function:
  • .Internal spring wire storage patent;
  • .Fully enclosed aluminum alloy frame structure, sturdy and durable, can lift without load;
  • .Multi-section aluminum alloy square tube, high-precision Hall detection, positioning accuracy ≤ 1mm;
  • .Built-in cables: projector power cable × 1, HDMI2.0 × 1, Category 6 network cable × 1 (other requirements can be customized);
  • .Projector universal mounting claw, multi-angle adjustable;
  • .Location method: RF positioning and 485 positioning;
  • .Control mode: RF, weak current dry contact and RS485 code;
  • *Installing the projector, the camera size is the recommended size, for reference only, the actual size shall prevail.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GLCC0520(Microphone edition)

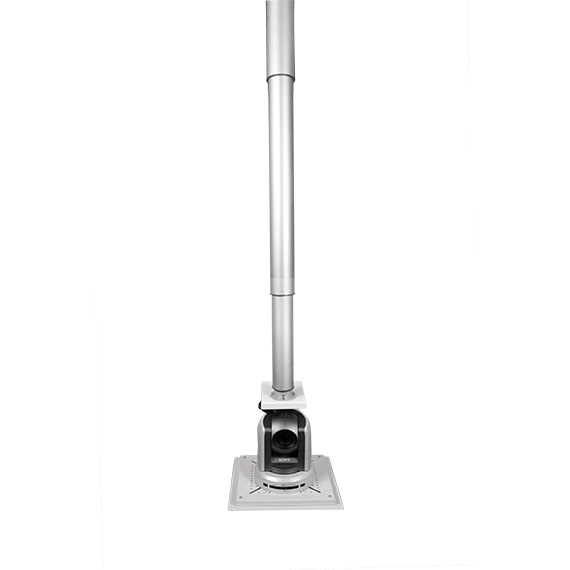

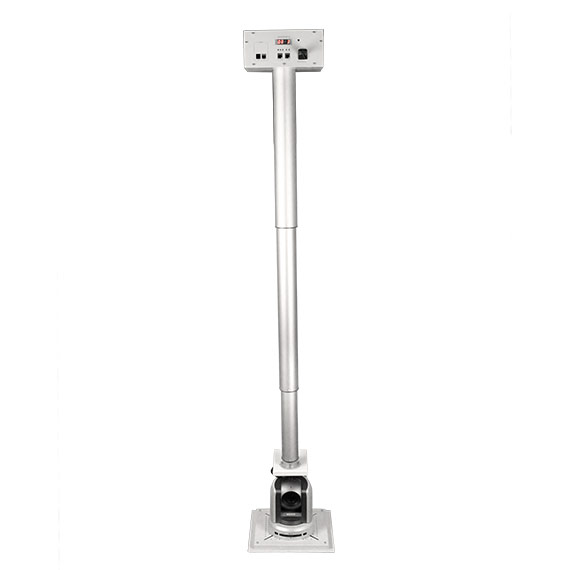

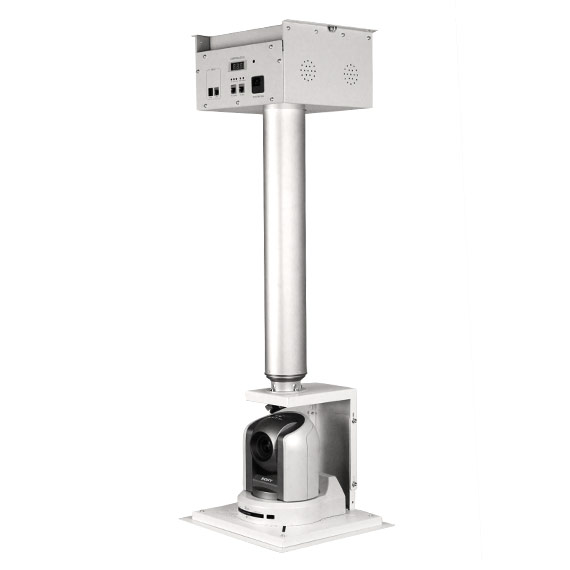

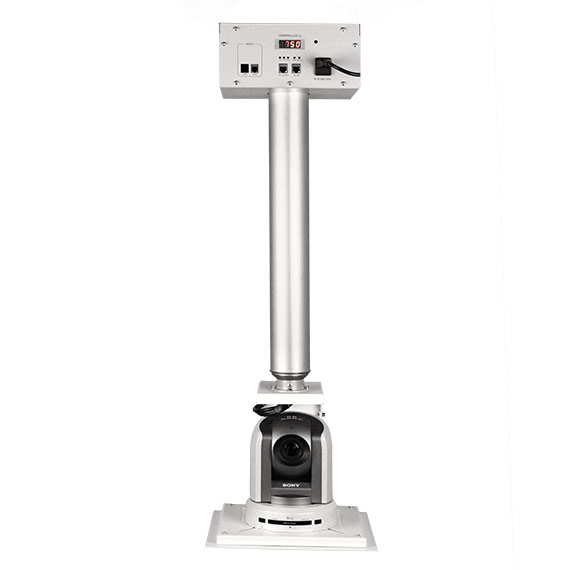

    • GLCC0620(Camera version)

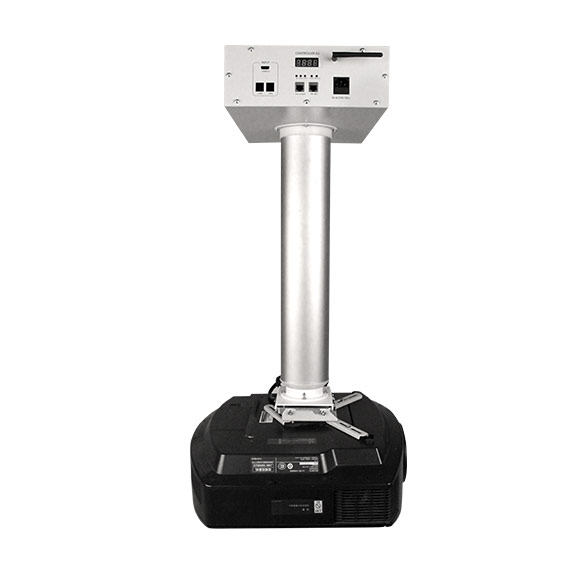

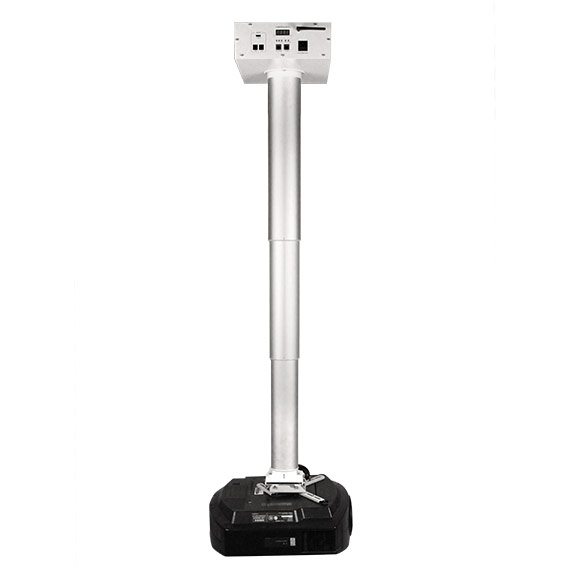

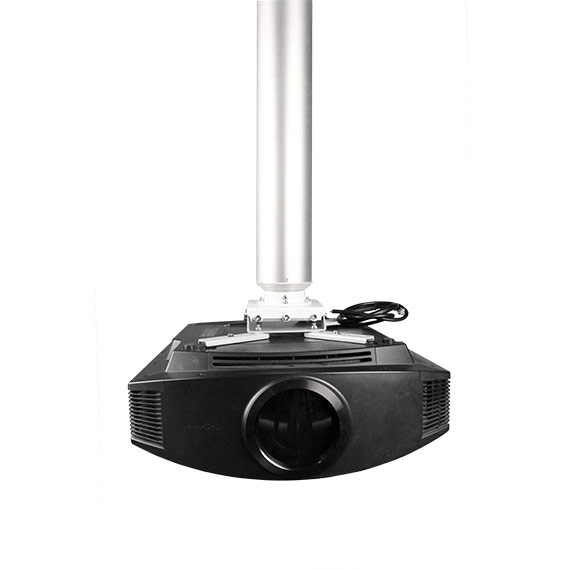

    • GLCC2520(Projector version)
      • Product Dimensions(mm)

        330×253×633
      • Net Weight(kg)

        17
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        250x180x250
      • Max Load(kg)

        5
      • Power(w)

        50
      • Max Travel(mm)
        2000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤50dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        220x312
      • Decorative Plate
        Dimensions(mm)
        320x320(or customer size)
      • Ceiling Opening
        Dimensions(mm)
        300x300(or customer size)
      • Required Ceiling
        Opening Height(mm)
        H+50mm
      • Angle Adjustments
        Up/Down/Left/Right
        1°/8°/4°/4°
      • Dry Contact(Y/N)

      • Power Cord

        19.5
      • Package + Total Product
        Weight
        (kg)
        360
      • Packing Dimensions
        (D×W×H)mm
        360x900
      • Product Dimensions(mm)

        330×253×633
      • Net Weight(kg)

        17
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        250x180x250
      • Max Load(kg)

        6
      • Power(w)

        50
      • Max Travel(mm)
        2000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤50dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        220x312
      • Decorative Plate
        Dimensions(mm)
        320x320
      • Ceiling Opening
        Dimensions(mm)
        300x300
      • Required Ceiling
        Opening Height(mm)
        H+50mm
      • Angle Adjustments
        Up/Down/Left/Right
        1°/8°/4°/4°
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
        1
      • HDMI 2.0

        1
      • Power Cord

        19.5
      • Product Dimensions(mm)

        410×339×633
      • Net Weight(kg)

        25
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        550x260x580
      • Max Load(kg)

        25
      • Power(w)

        50
      • Max Travel(mm)
        2000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤50dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        321x320
      • Required Ceiling
        Opening Height(mm)
        H+50mm
      • Angle Adjustments
        Up/Down/Left/Right
        1°/8°/4°/4°
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Wireless
        Control(Y/N)
        1
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        27.5
  • Sketch
