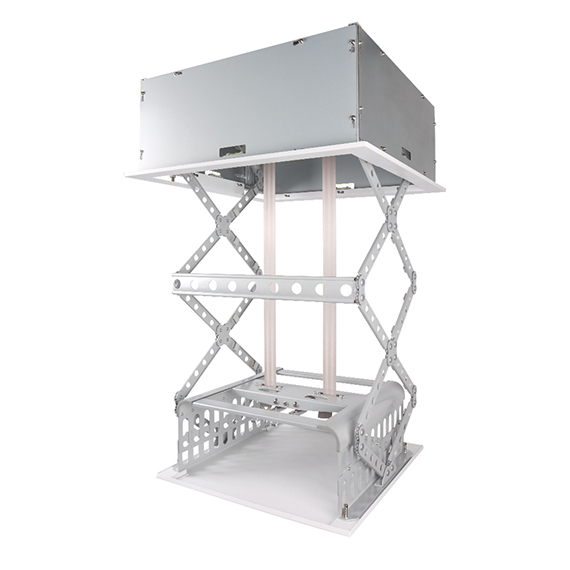

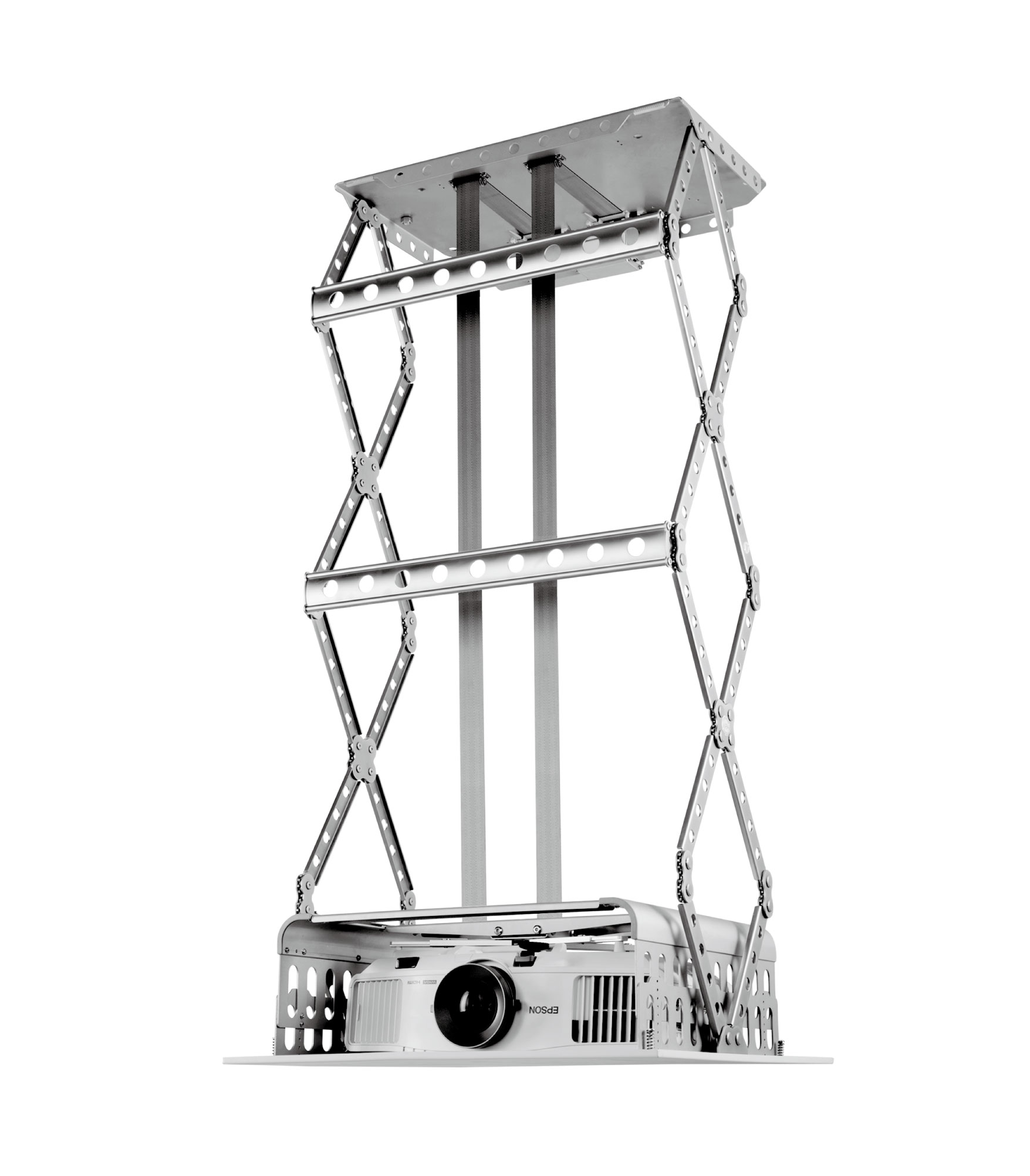

GPSC Series Motorized Projector Lift

  • X-arm projector ultra-thin electric elevator, for the new generation of projector electric elevator products, in line with international standards.Special use of small and medium-sized projectors and installation space of small environment design, such as: meeting room, training room, multimedia classroom and other places

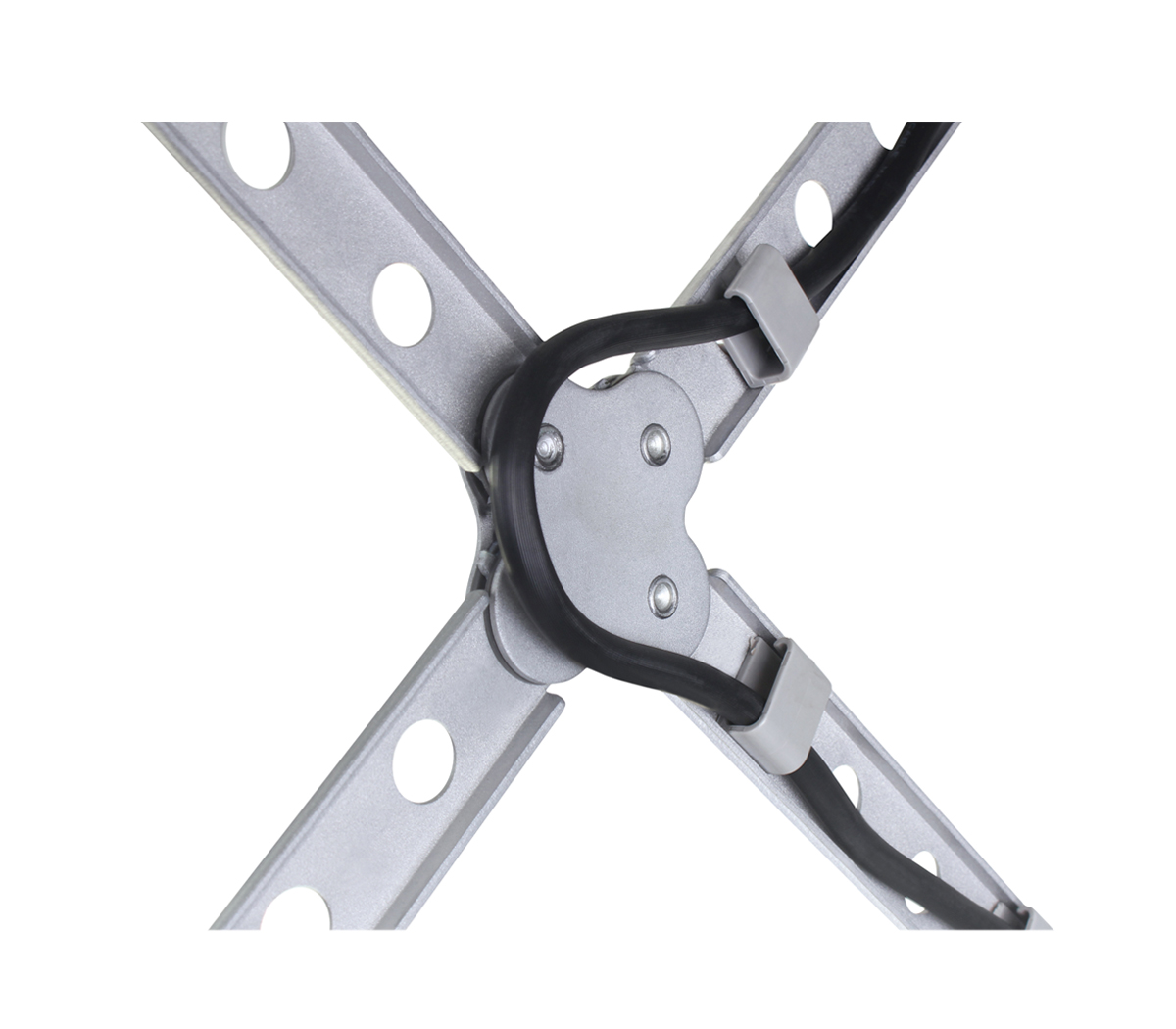

  • The elevator USES x-type composite mechanical arm to lift and lower, stable operation, electronic travel positioning, one-key setting, simple operation;The hidden installation design can be integrated with the ceiling after being closed.Long-term service life design, easy maintenance and overload protection design to prevent extreme overload, effectively avoid the danger caused by extreme overload
  • * the size of the projector is the recommended size for reference only. The actual size shall prevail.
  • Specs
  • Drawing
  • Video
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPSC 5015B
    • GPSC 5010B
    • GPSC 5005B
    • GPSC 5015
    • GPSC 5010
    • GPSC 5006
      • Product Dimensions(mm)

        580×580×340
      • Net Weight(kg)

        31
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        440x180x480
      • Max Load(kg)

        10
      • Power(w)

        50
      • Max Travel(mm)
        1500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        522x519
      • Decorative Plate
        Dimensions(mm)
        630x630
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable
      • Product Dimensions(mm)

        580×580×252
      • Net Weight(kg)

        27
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        440x180x480
      • Max Load(kg)

        12
      • Power(w)

        50
      • Max Travel(mm)
        1000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        522x519
      • Decorative Plate
        Dimensions(mm)
        630x630
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable
      • Product Dimensions(mm)

        580×580×252
      • Net Weight(kg)

        24
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        440x160x480
      • Max Load(kg)

        15
      • Power(w)

        50
      • Max Travel(mm)
        500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        522x519
      • Decorative Plate
        Dimensions(mm)
        630x630
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable
      • Product Dimensions(mm)

        600×600×260
      • Net Weight(kg)

        23
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        480x180x480
      • Max Load(kg)

        10
      • Power(w)

        50
      • Max Travel(mm)
        1500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        360x220
      • Decorative Plate
        Dimensions(mm)
        600x600
      • Ceiling Opening
        Dimensions(mm)
        590x590
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable
      • Product Dimensions(mm)

        600×600×215
      • Net Weight(kg)

        20
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        480x180x480
      • Max Load(kg)

        12
      • Power(w)

        50
      • Max Travel(mm)
        1000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        360x220
      • Decorative Plate
        Dimensions(mm)
        600x600
      • Ceiling Opening
        Dimensions(mm)
        590x590
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable
      • Product Dimensions(mm)

        600×600×160
      • Net Weight(kg)

        17
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        480x135x480
      • Max Load(kg)

        15
      • Power(w)

        50
      • Max Travel(mm)
        600
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        360x220
      • Decorative Plate
        Dimensions(mm)
        600x600
      • Ceiling Opening
        Dimensions(mm)
        590x590
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • The Six Kind
        Of Network Cable

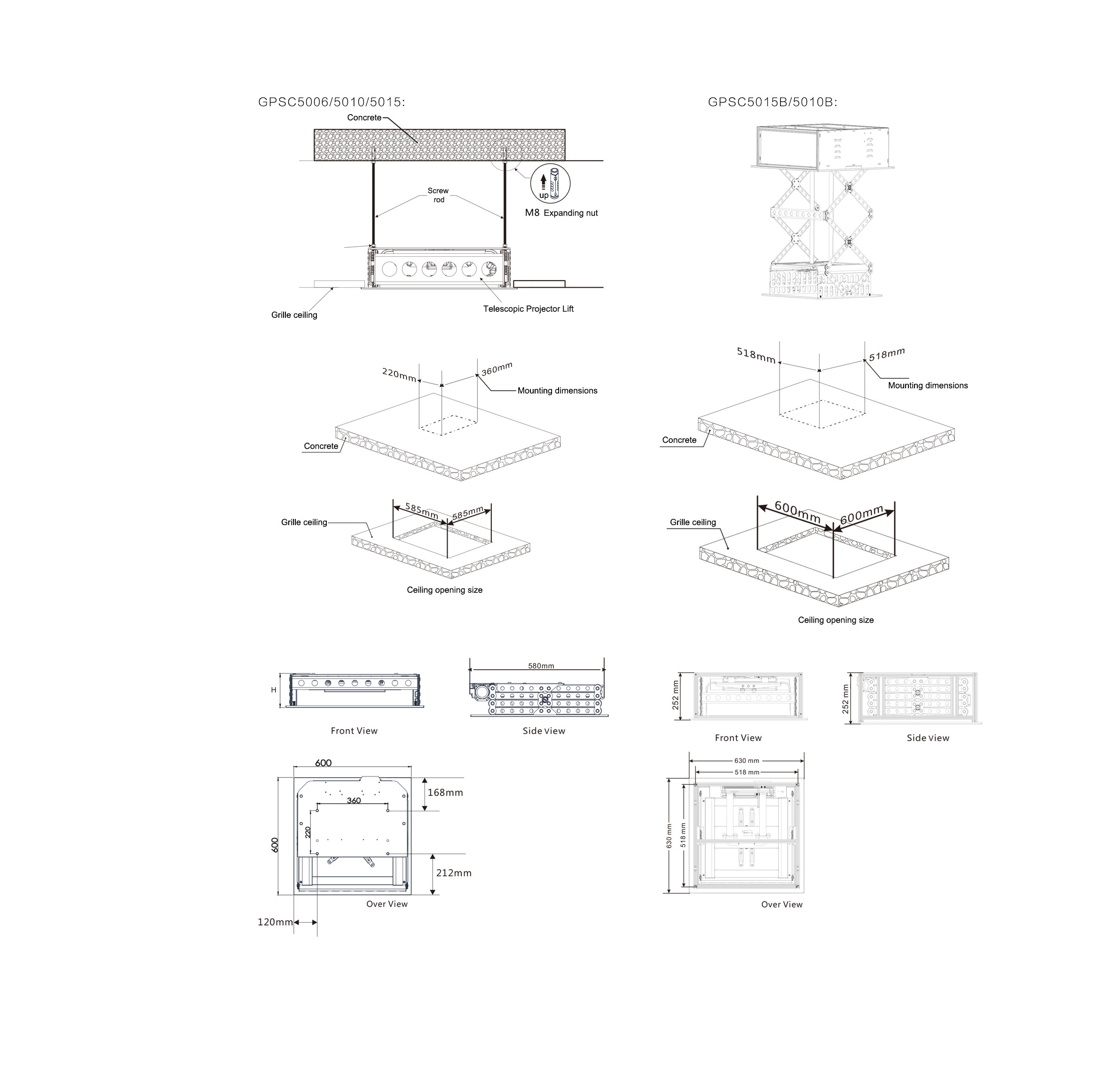

  • Sketch
  • Video
  • Standard Accessories

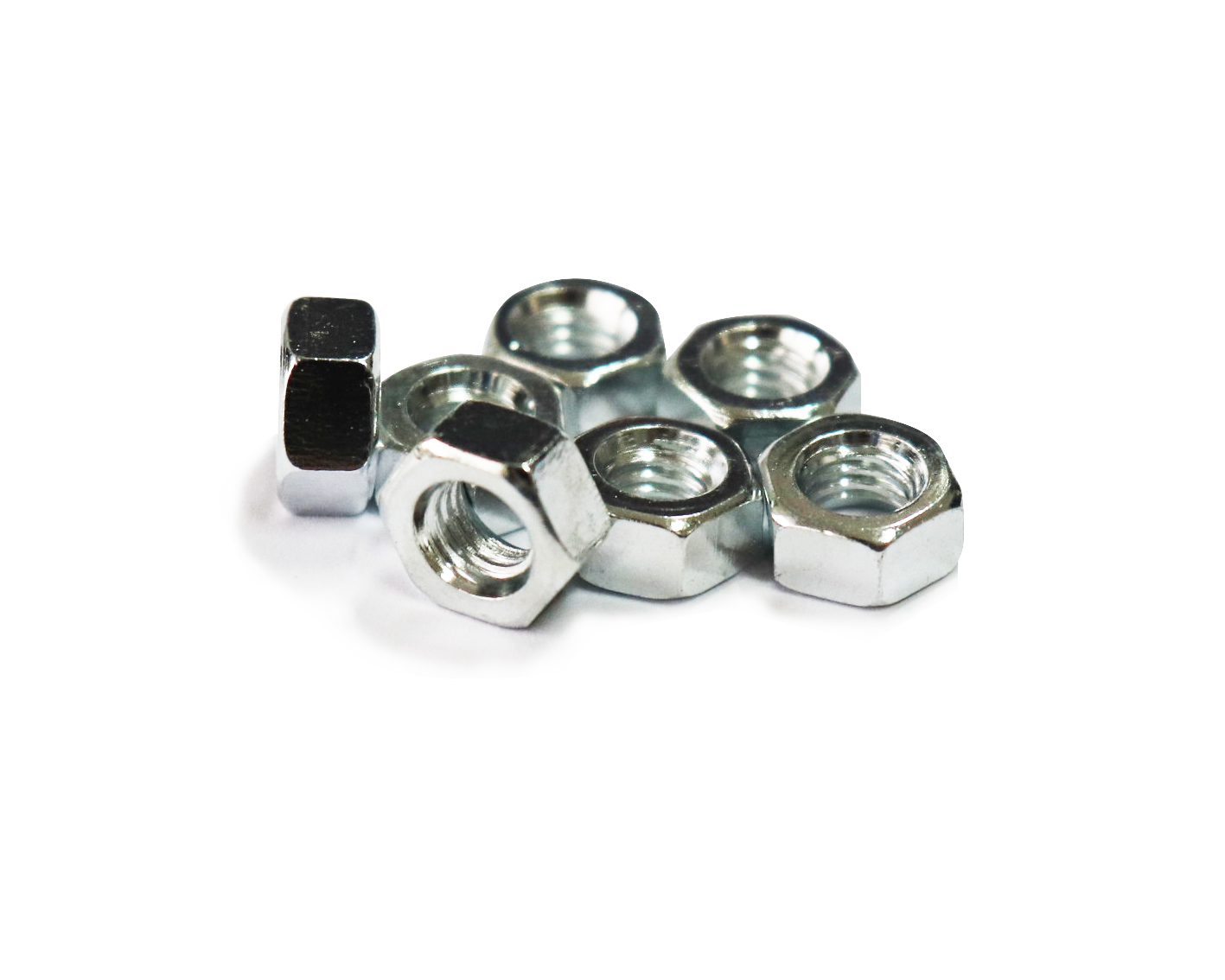

    • Nut

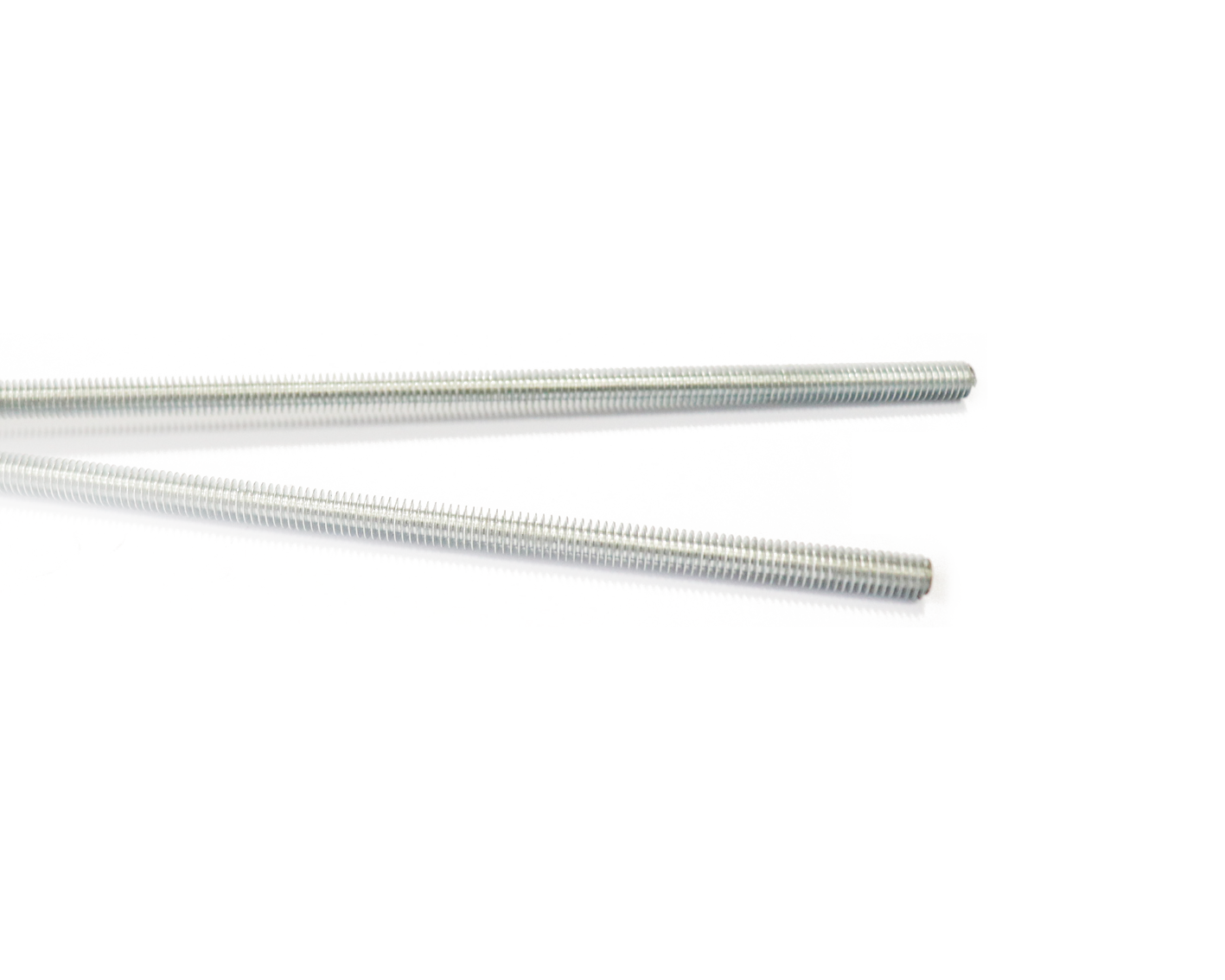

    • screw rod

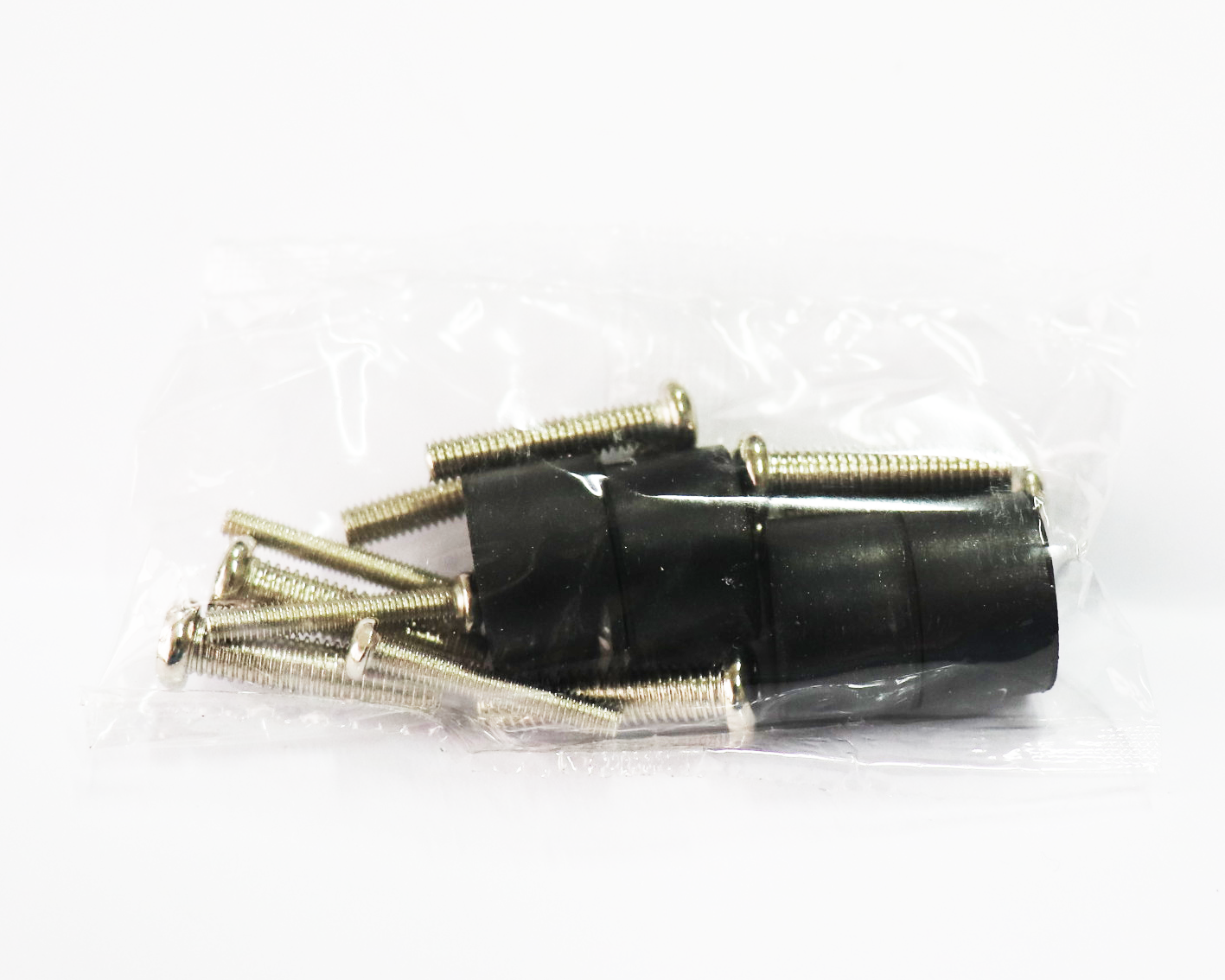

    • Screw package
    Control Options

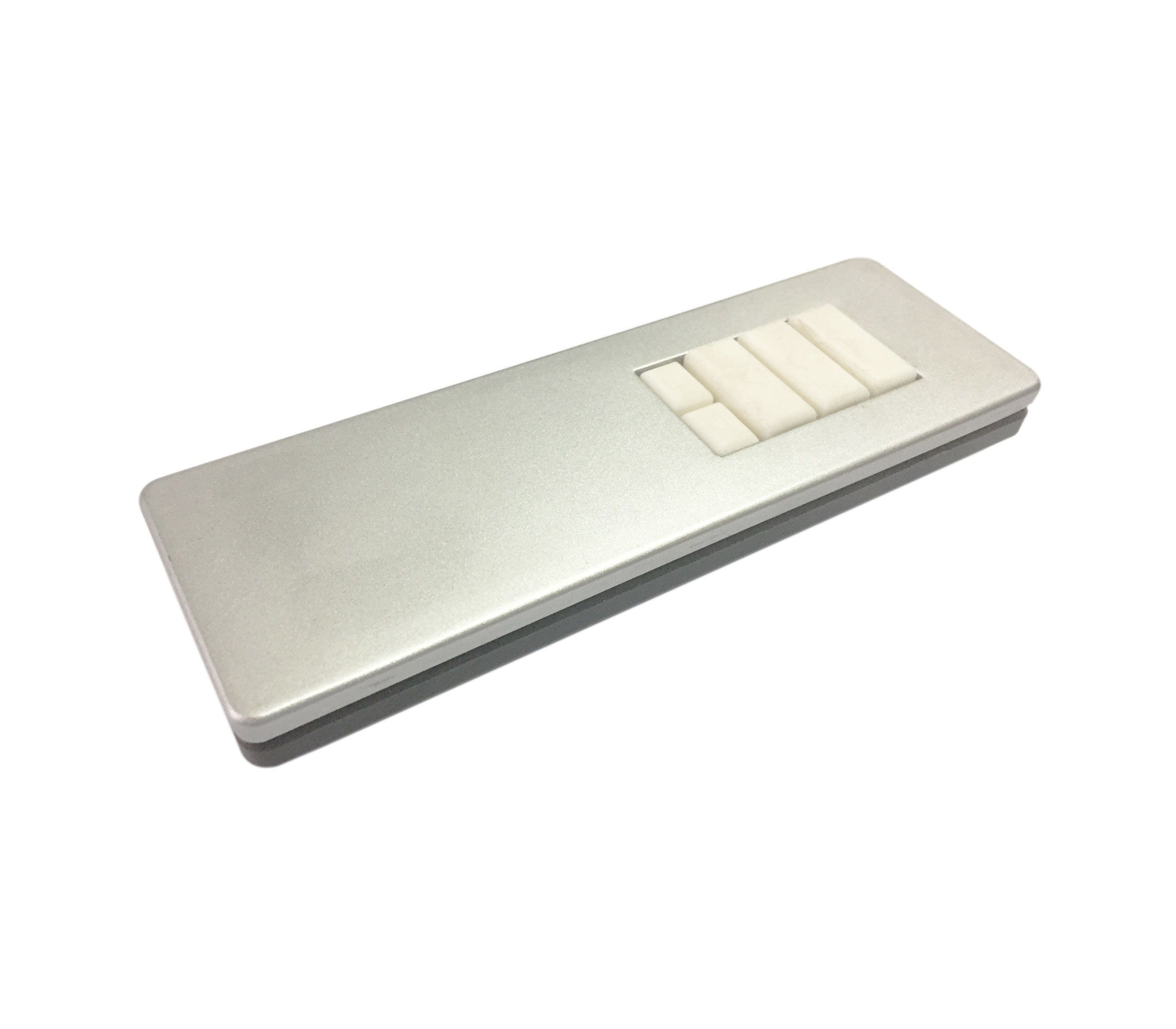

    • Wireless RF
  • Download
    Specification sheet for GPSC
    User manual for GPSC-110V.pdf
    User manual for GPSC-120V.pdf
    User manual for GPSC-220V.pdf
