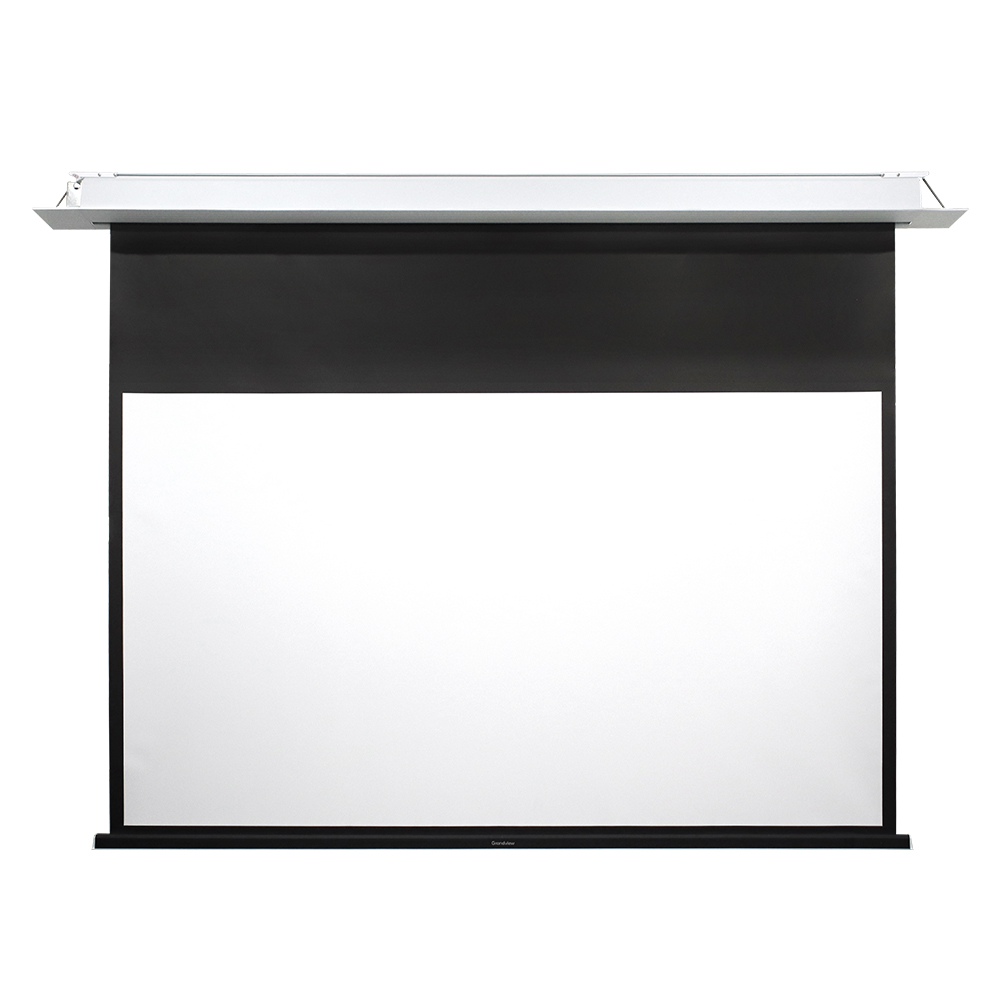

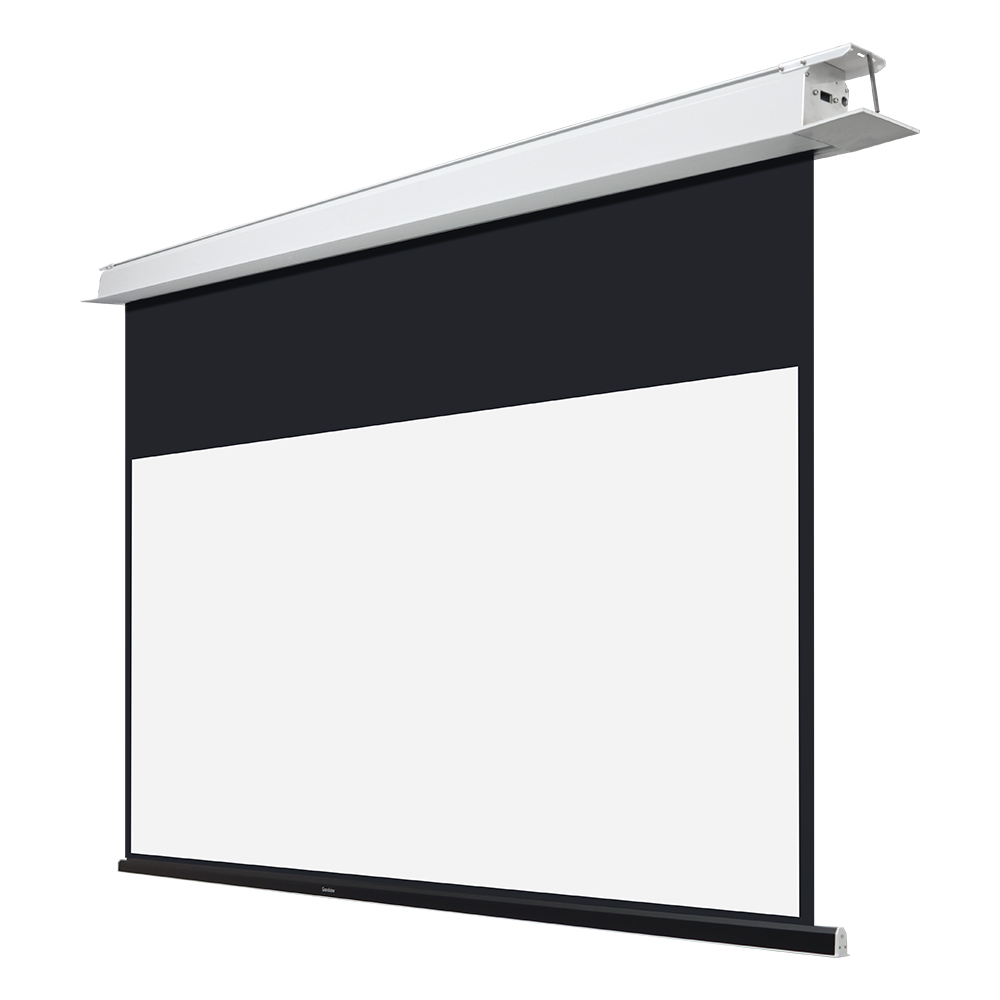

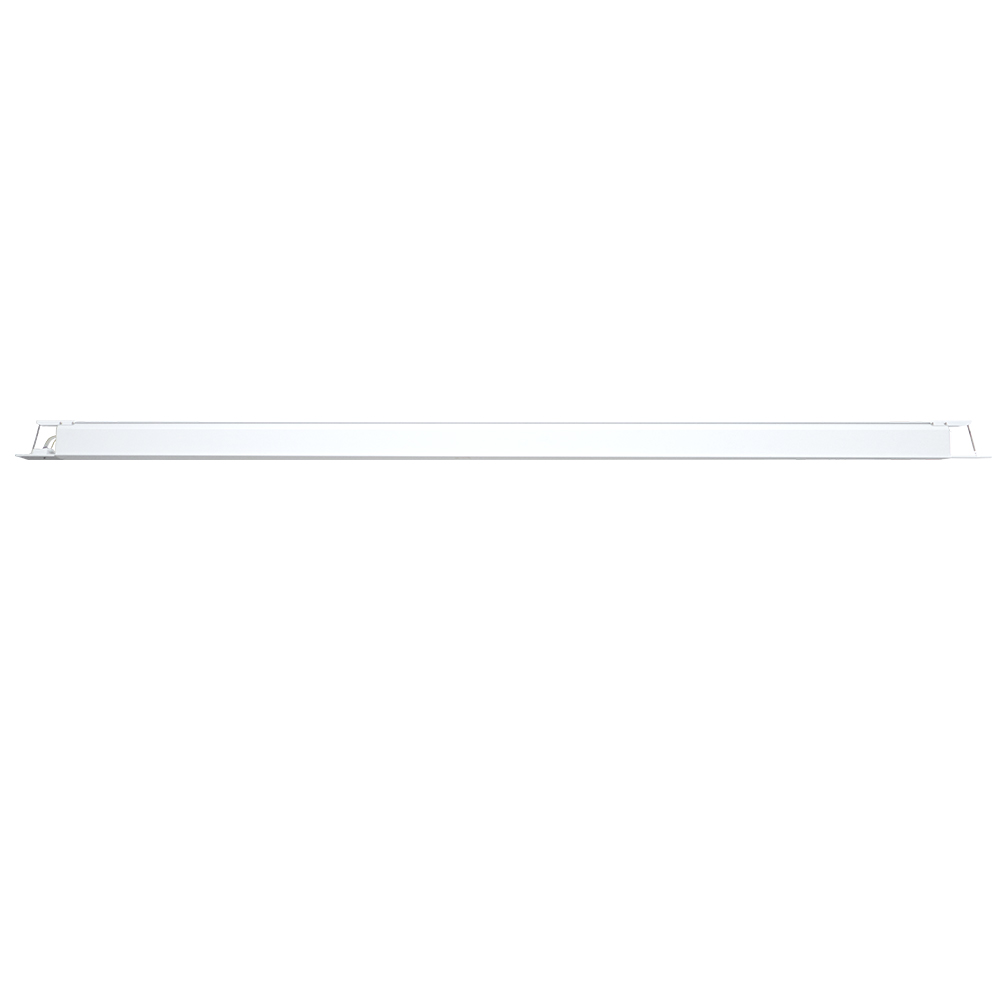

Hidetech Series
Recessed Motorized Screen

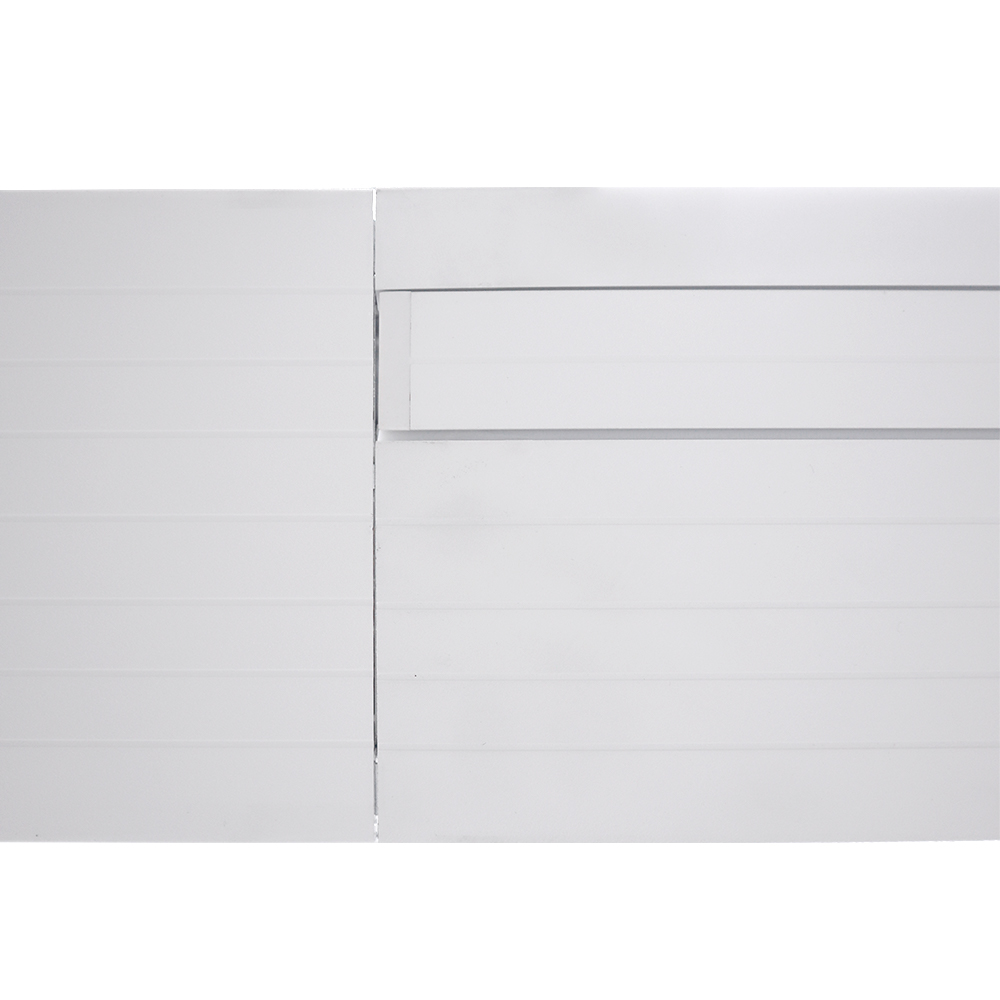

  • With a focus on the essence of industrial design, the Grandview’s Recessed Series blends itself perfectly in any in-ceiling installation. Boasting a concealed look, the screens functionality is seamlessly hidden away until use. Patented Separated Casing design reduces noise and vibration, the screen also offers a multitude of commercial grade features.


  • • Sizes: 92” – 200” diagonal
  • • Installation Options: In-Ceiling Mount
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White
  • • Aluminum Casing
  • • Easy installation
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard Control Options

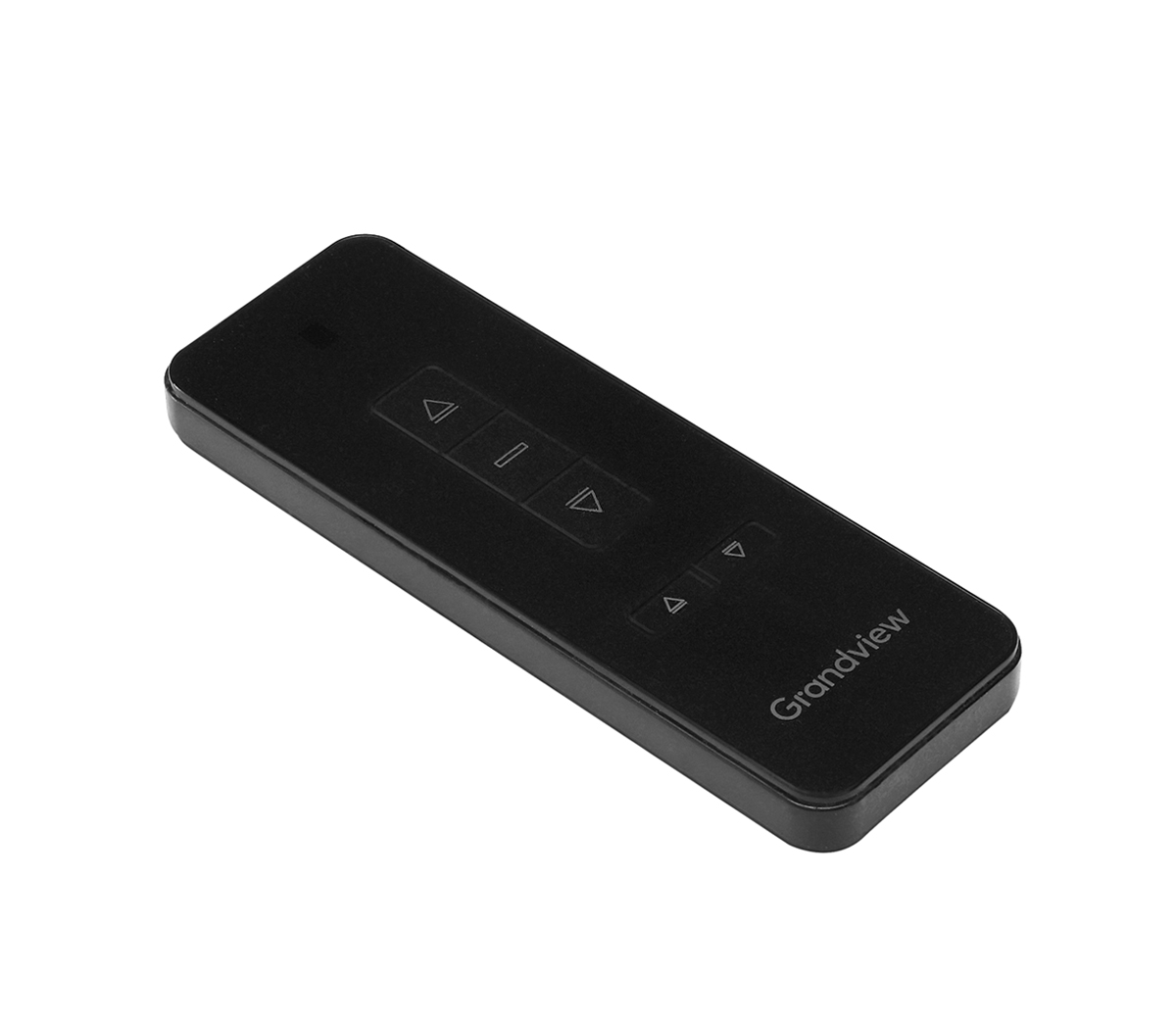

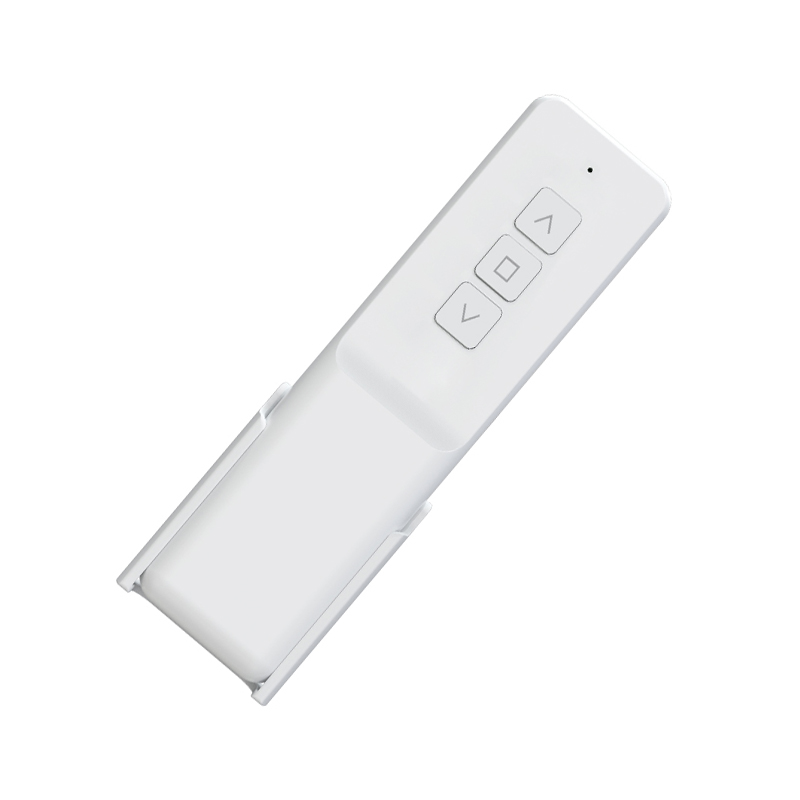

    • RF Remote Control
    • IR Remote Control

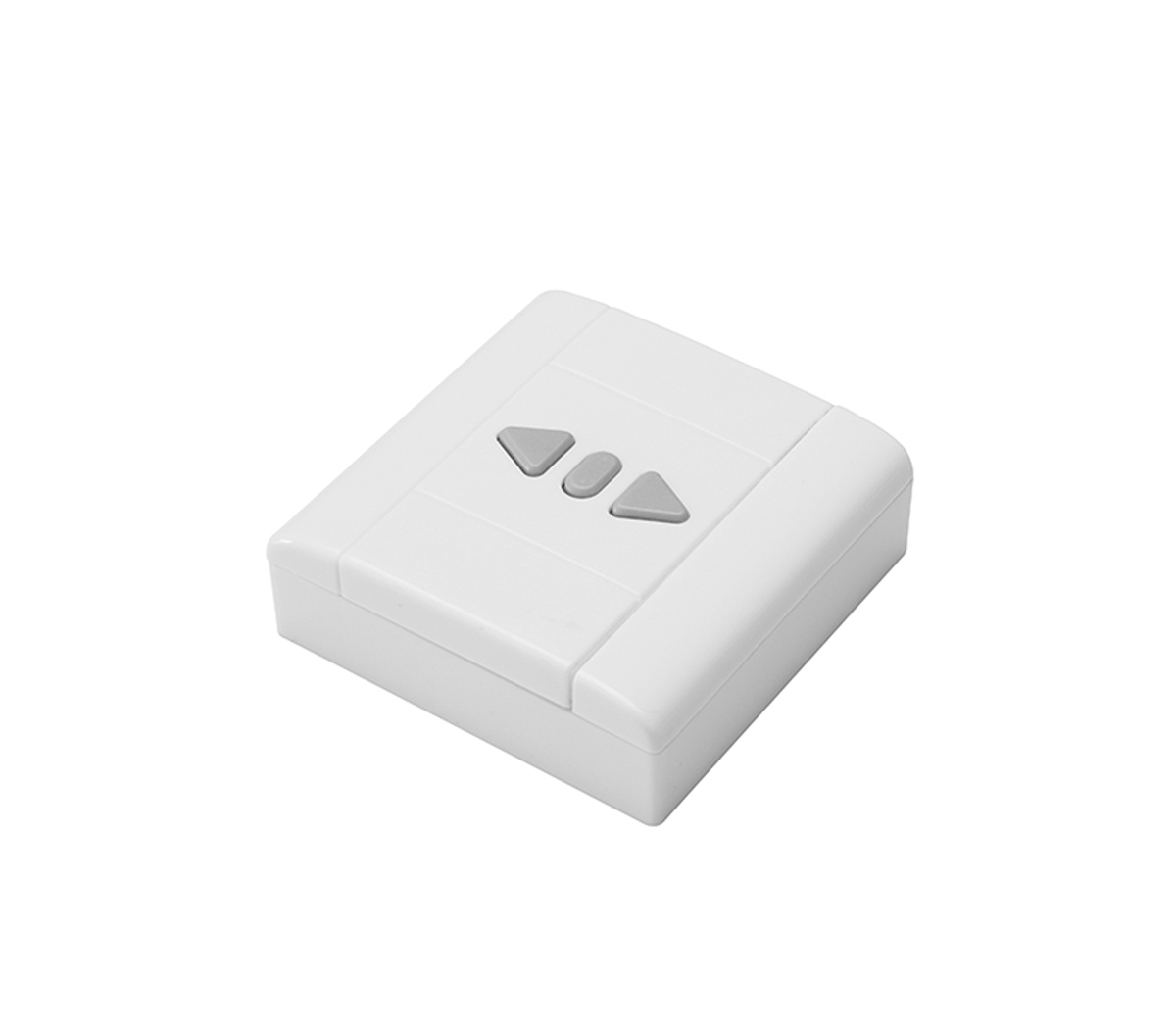

    • Wall Swtich

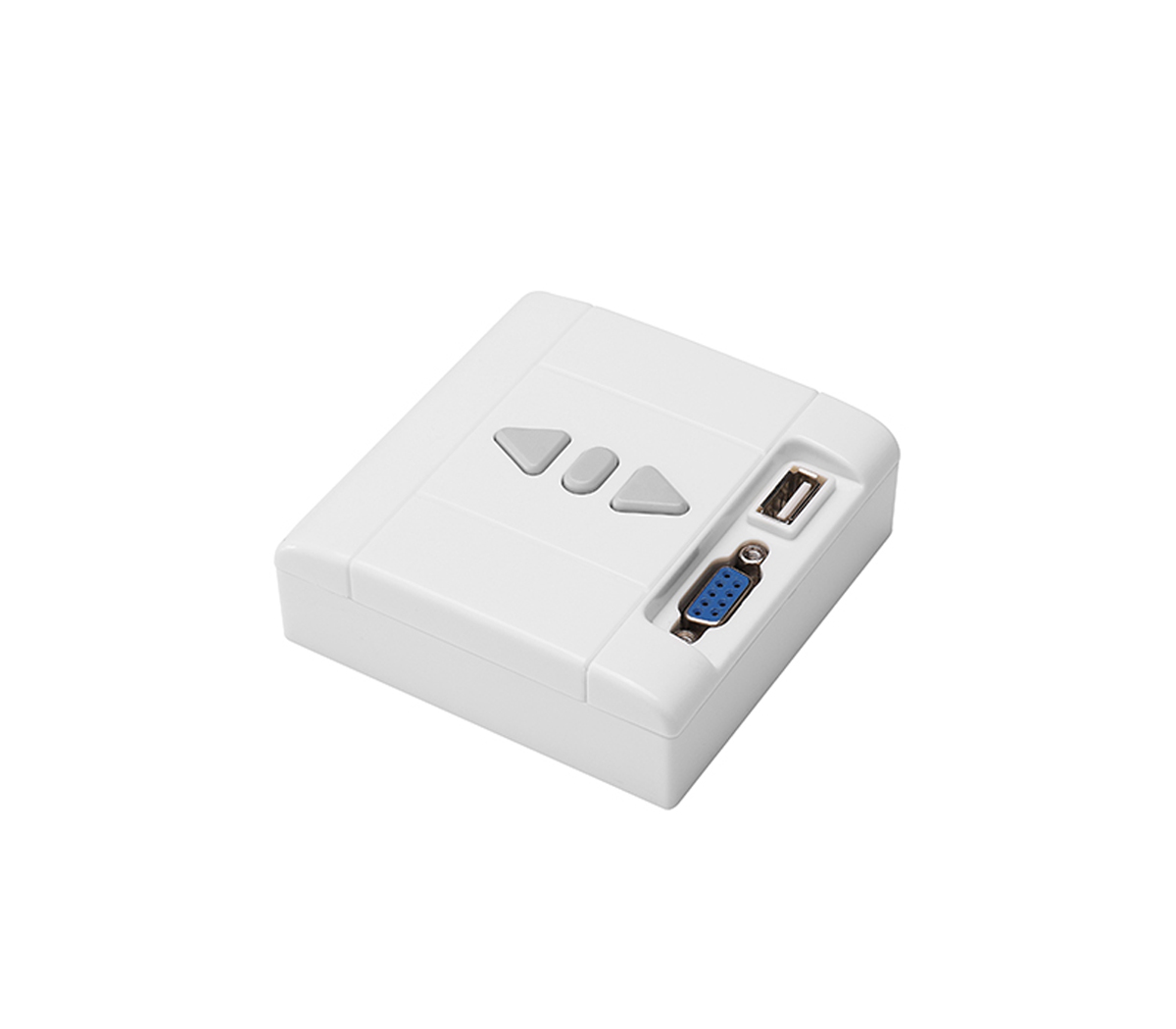

    • Smart Wall Switch
    • In-Line Switch
    Standard Accessories
    • Limit Adjustment Tool
    External Control Options

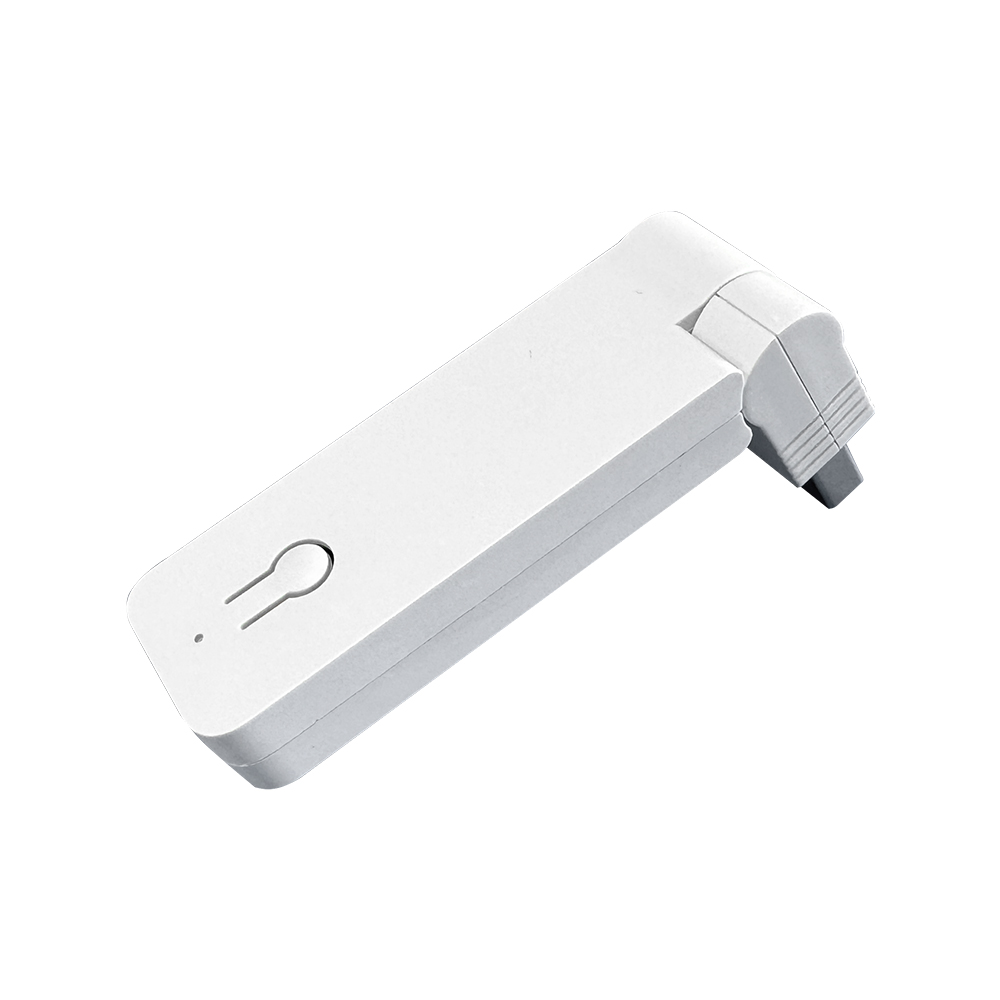

    • External RF Control System
    • External IR Control System

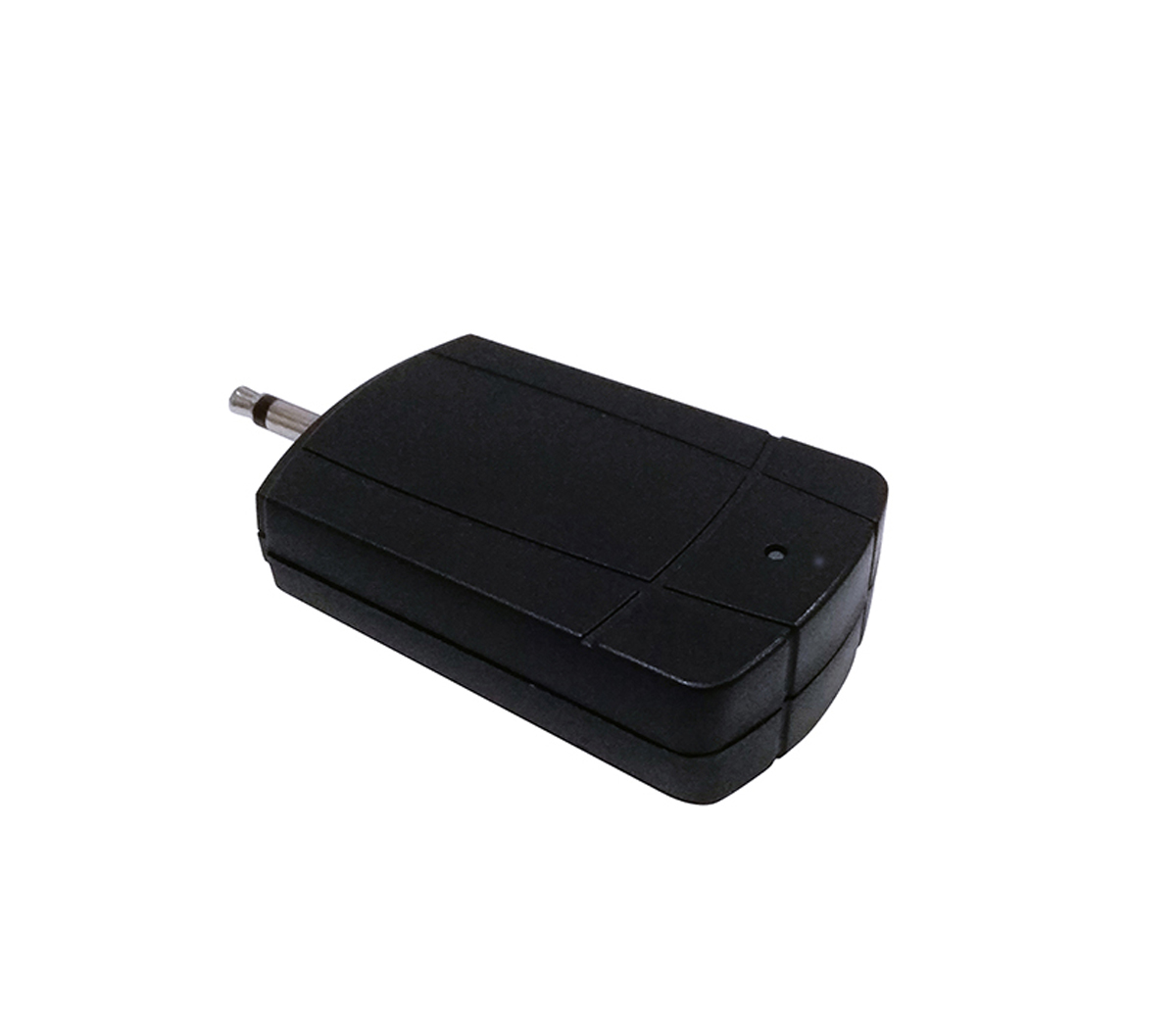

    • RF Wireless Trigger
  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WM9
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        72"
        1463 × 1097
        2135
        850
        30
        30
        1688
        119
        105
        84"
        1707 × 1280
        2138
        670
        30
        50
        1972
        119
        105
        100"
        2032 × 1524
        2132
        420
        30
        50
        2297
        119
        105
        120"
        2438 × 1829
        2137
        120
        30
        50
        2703
        119
        105
        150"
        3050 × 2288
        2556
        80
        30
        51
        3317
        119
        105
        180"
        3620 × 2715
        3024
        80
        30
        50
        3898
        160
        140
        200"
        4020 × 3015
        3324
        80
        30
        50
        4298
        160
        140
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1705 × 959
        2137
        990
        30
        51
        1972
        119
        105
        80"
        1771 × 996
        2134
        950
        30
        28
        1992
        119
        105
        92"
        2032 × 1146
        2134
        800
        30
        50
        2297
        119
        105
        100"
        2214 × 1245
        2133
        700
        30
        50
        2479
        119
        105
        106"
        2346 × 1320
        2138
        630
        30
        50
        2611
        119
        105
        120"
        2656 × 1494
        2132
        450
        30
        50
        2921
        119
        105
        138"
        3050 × 1716
        2204
        300
        30
        51
        3317
        119
        105
        150"
        3320 × 1867
        2396
        300
        30
        50
        3598
        160
        140
        165"
        3620 × 2036
        2567
        301
        31
        51
        3898
        160
        140
        182"
        4020 × 2261
        2790
        300
        30
        50
        4298
        160
        140
        200"
        4428 × 2491
        3020
        300
        30
        50
        4706
        160
        140
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1659 × 1037
        2215
        990
        30
        50
        1924
        119
        105
        80"
        1727 × 1080
        2218
        950
        30
        50
        1992
        119
        105
        92"
        1982 × 1239
        2227
        800
        30
        50
        2247
        119
        105
        100"
        2154 × 1346
        2234
        700
        30
        50
        2419
        119
        105
        106"
        2283 × 1427
        2245
        630
        30
        50
        2548
        119
        105
        120"
        2585 × 1615
        2253
        450
        30
        50
        2850
        119
        105
        138"
        2972 × 1858
        2387
        300
        30
        50
        3249
        160
        140
        142"
        3050 × 1906
        2394
        300
        30
        51
        3317
        119
        105
        150"
        3231 × 2019
        2548
        300
        30
        50
        3509
        160
        140
        180"
        3877 × 2423
        2952
        300
        30
        50
        4155
        160
        140
        188"
        4020 × 2513
        3042
        300
        30
        50
        4298
        160
        140
        200"
        4308 × 2692
        3221
        300
        30
        50
        4586
        160
        140
