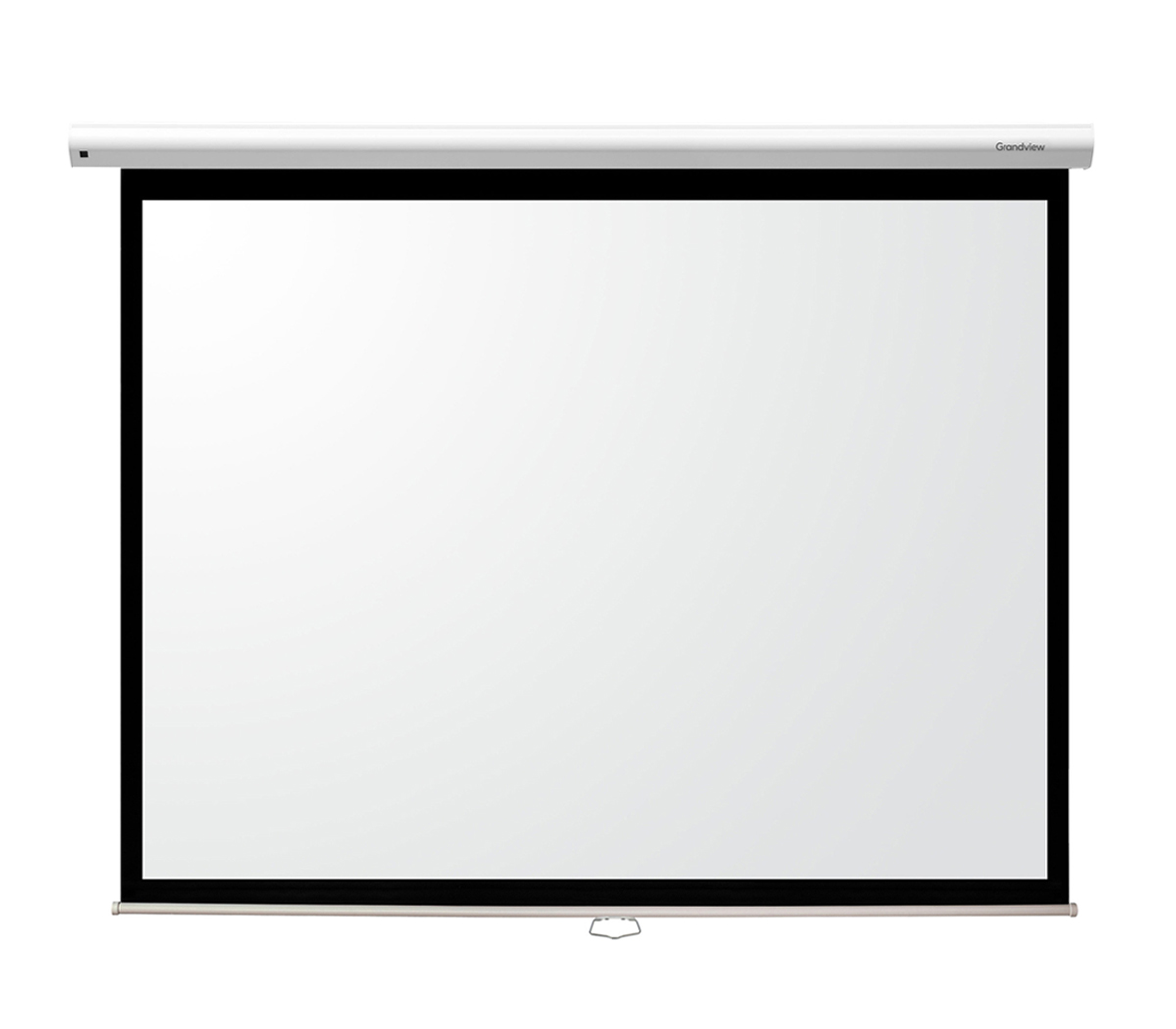

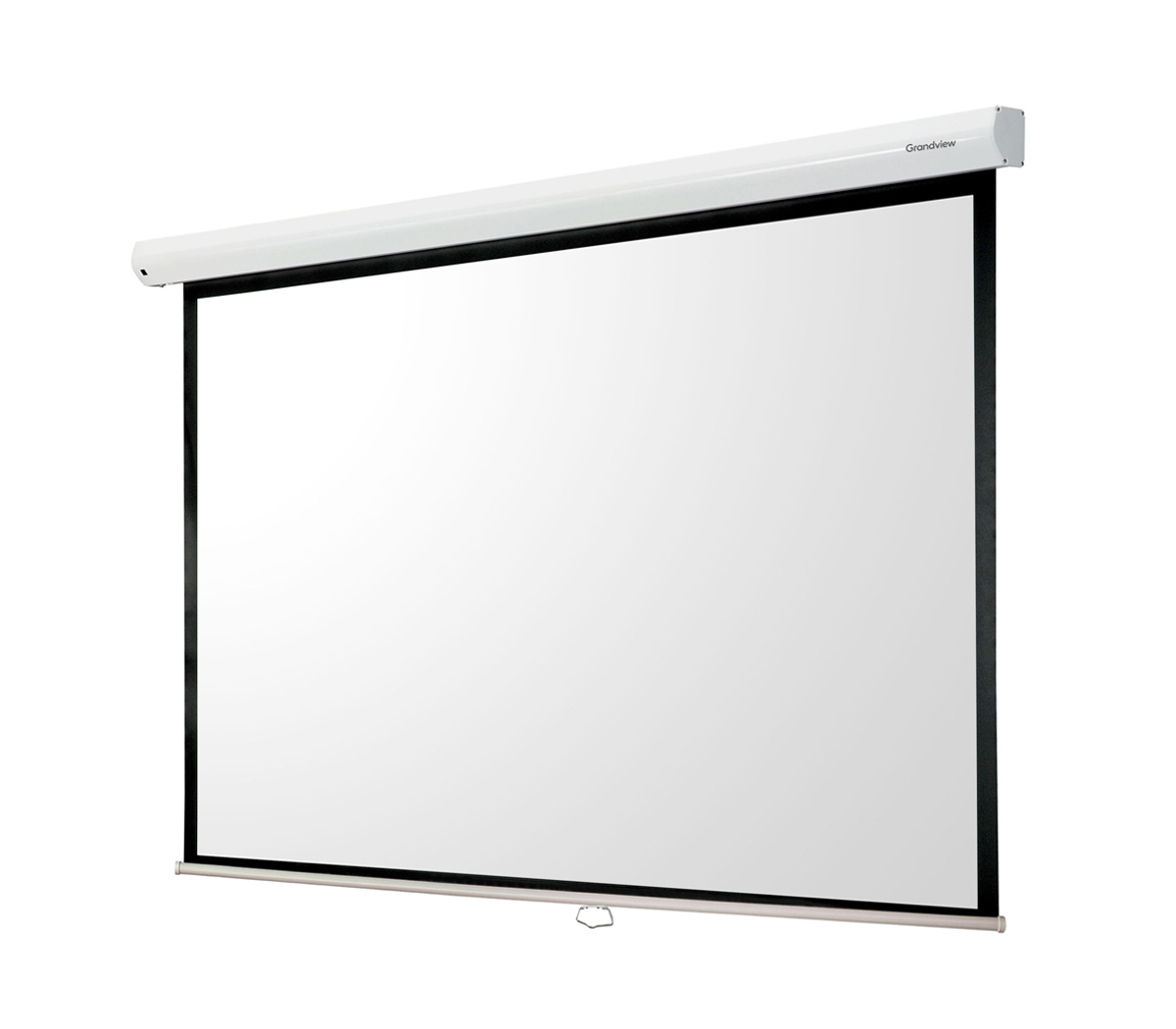

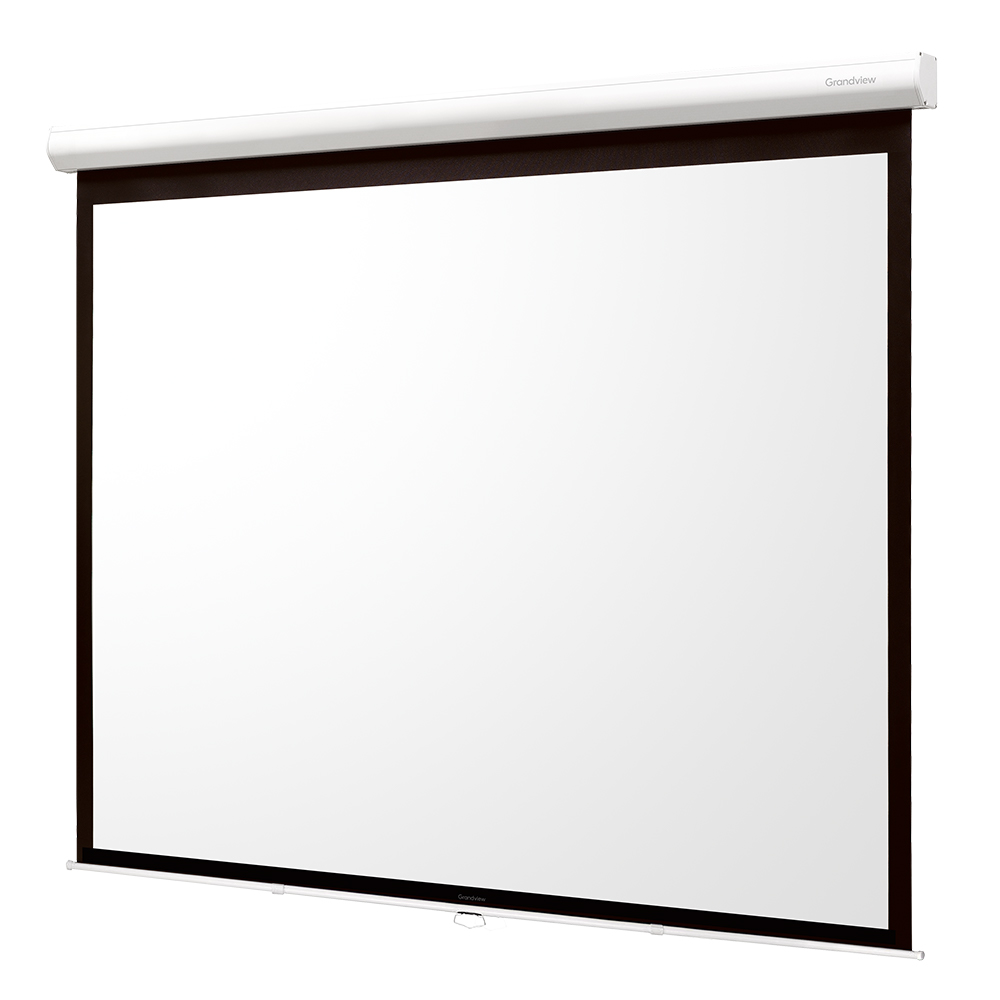

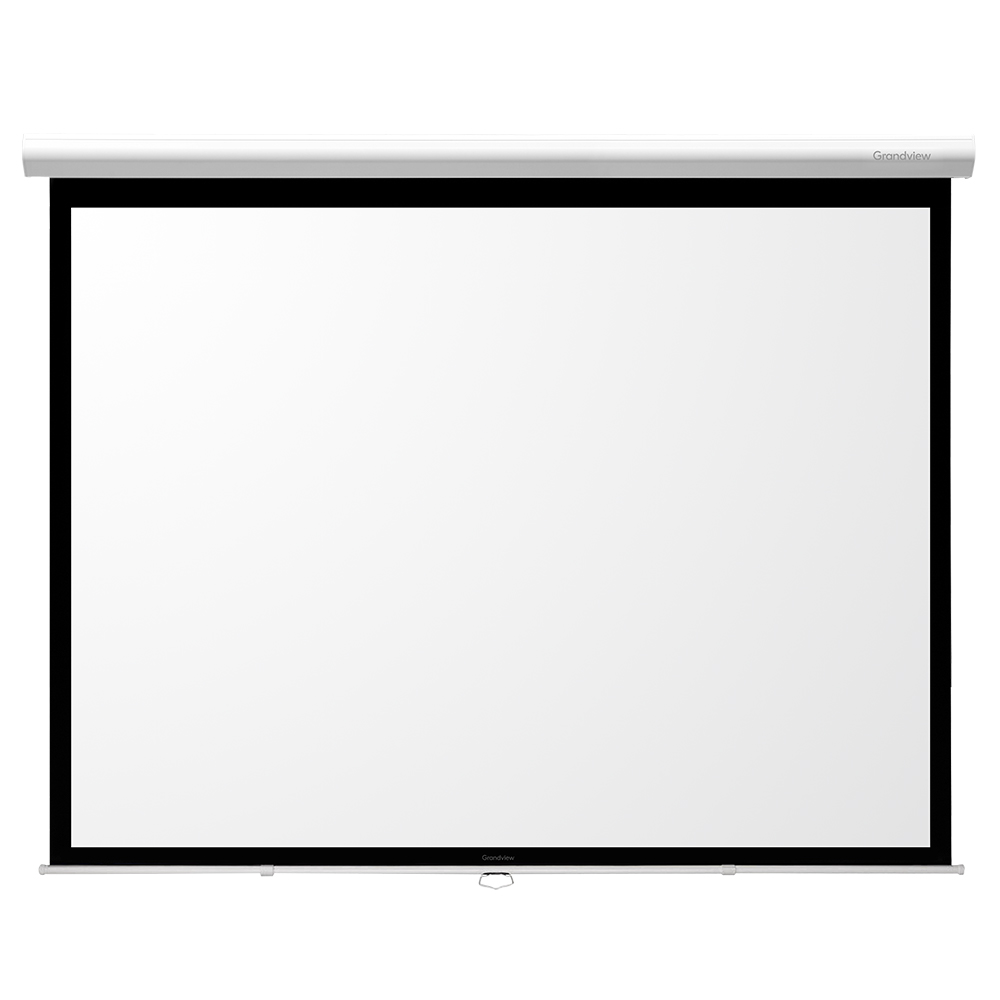

Cyber Series Manual Pull-down Screen

  • The Cyber Manual Series design is the result of inspiration derived from Renaissance Era architecture and ancient Corinthian columns. Innovative features such as the floating L-bracket which makes installation extremely easy. A patented Slow-Retract/Self-Lock function ensure the screen is as functional as it is aesthetically pleasing.


  • • Self-Lock Mechanism
  • • Slow Retraction Mechanism
  • • Sizes: 92” – 200” diagonal
  • • Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount (using the “L bracket”)
  • • Colour: Black / White

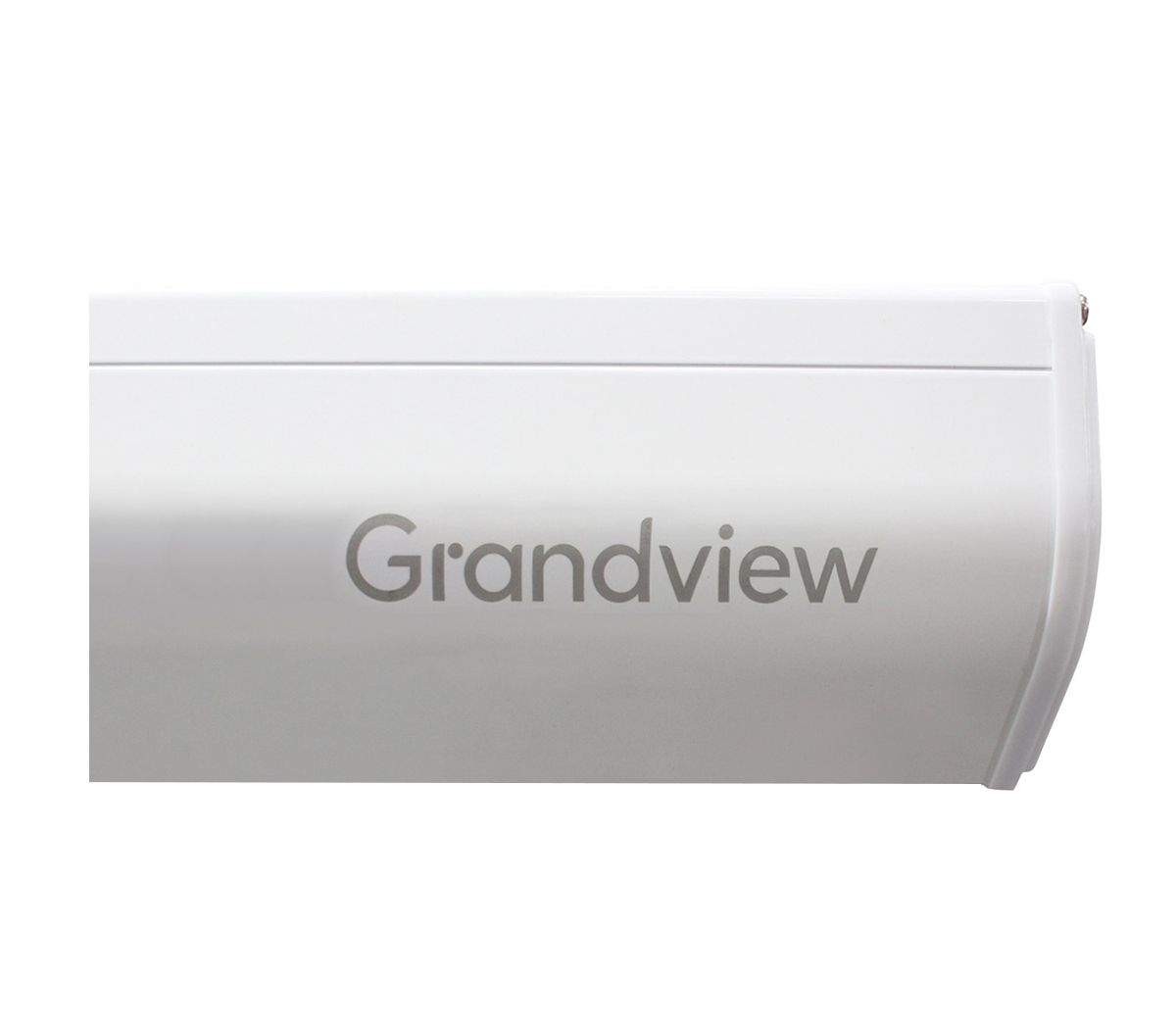

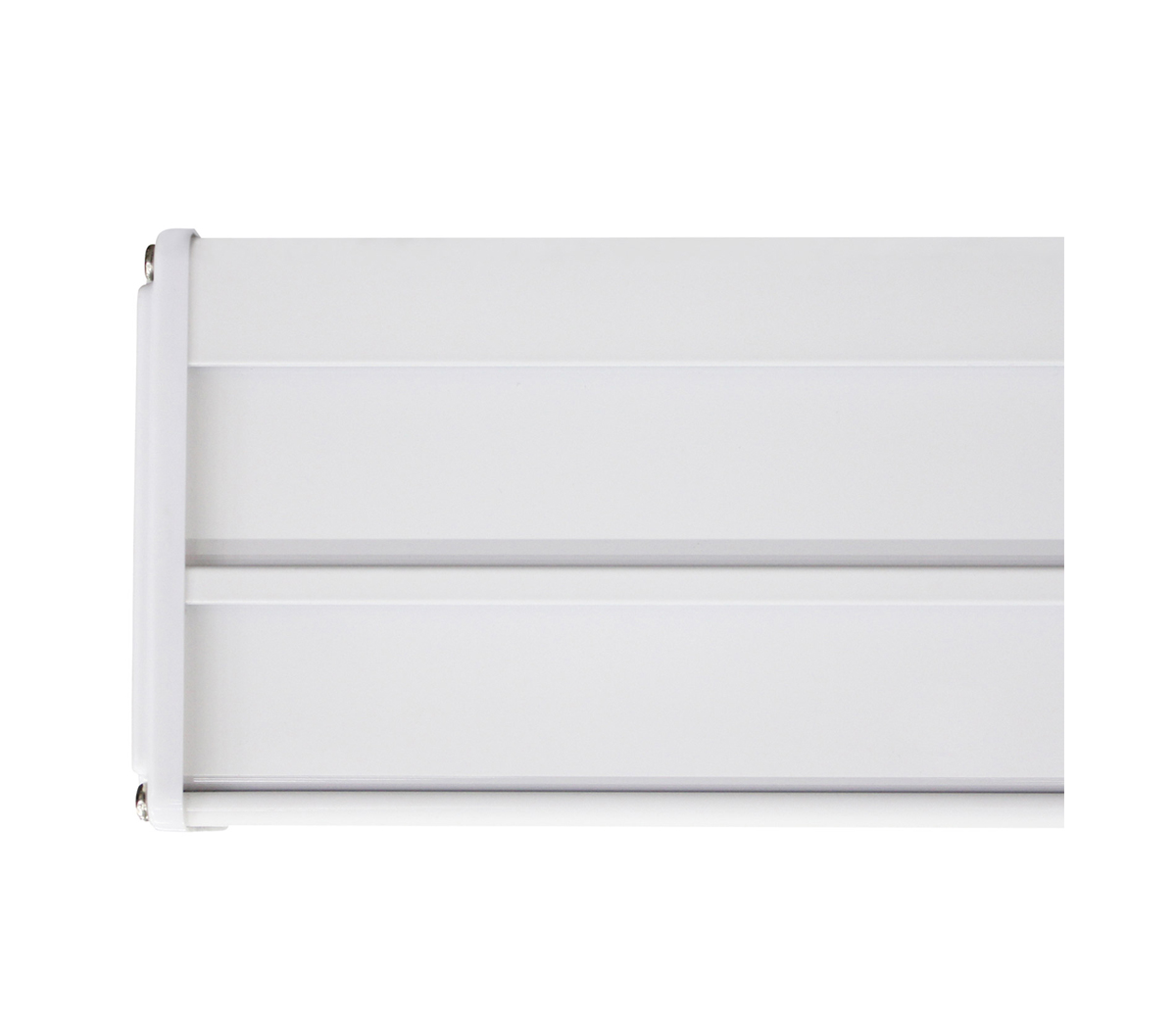

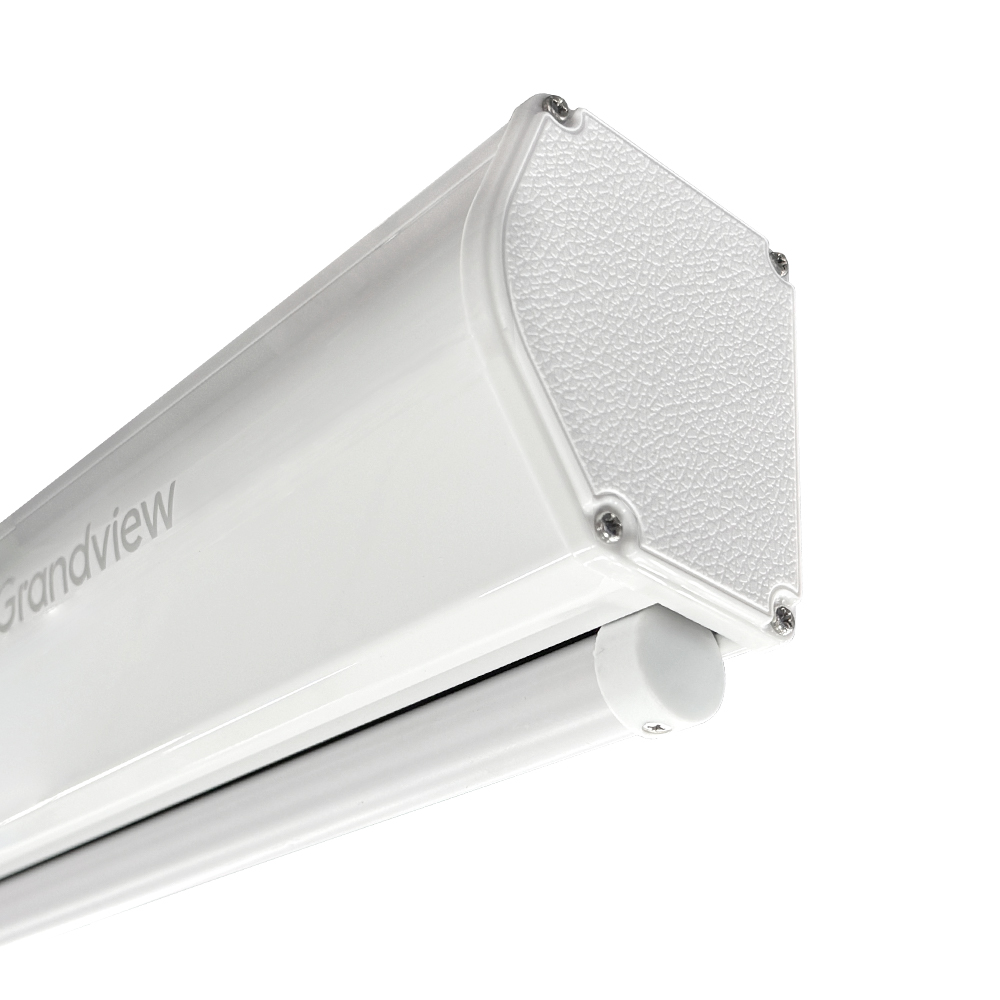

  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard Accessories

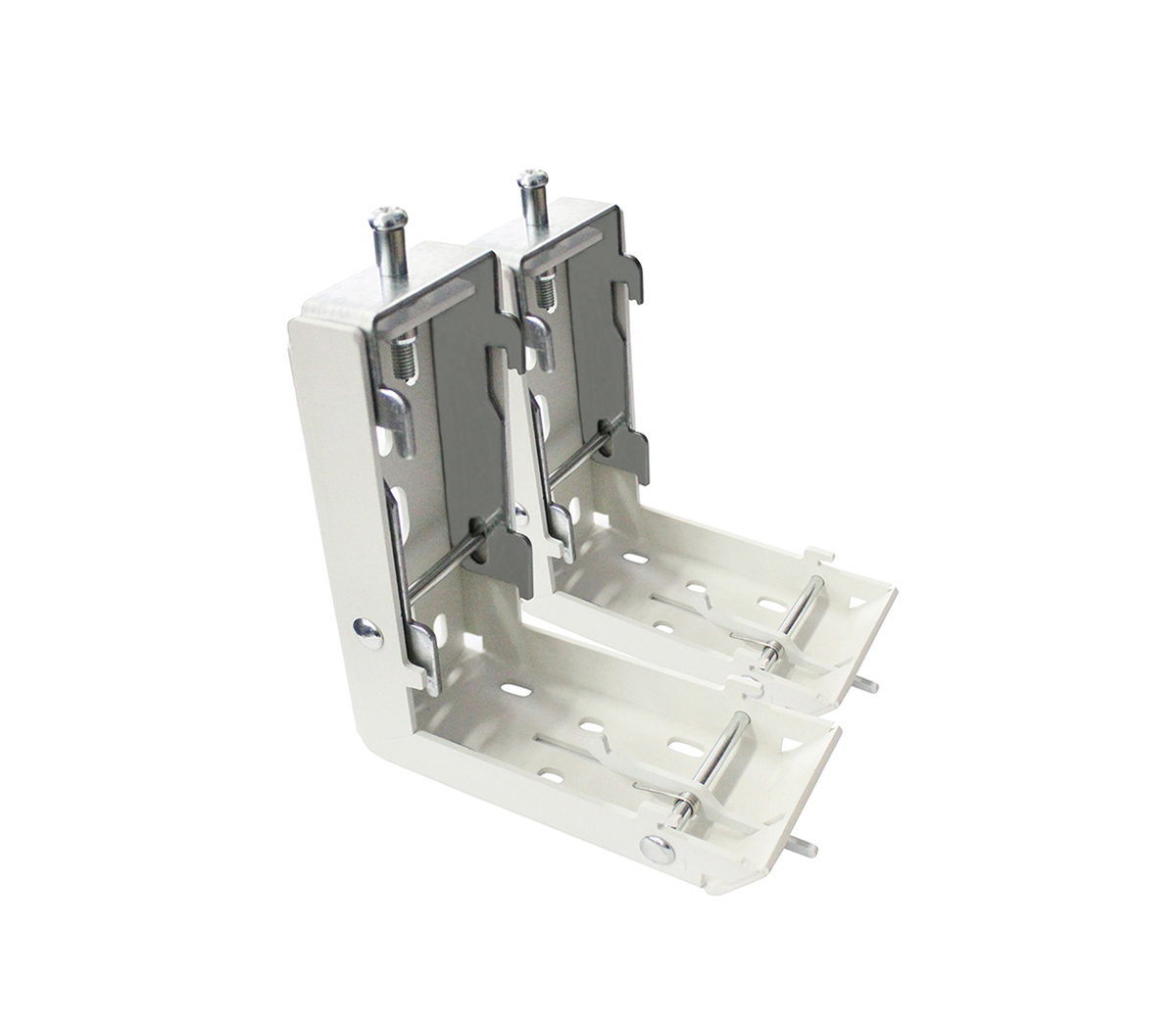

    • Floating Installation Brackets

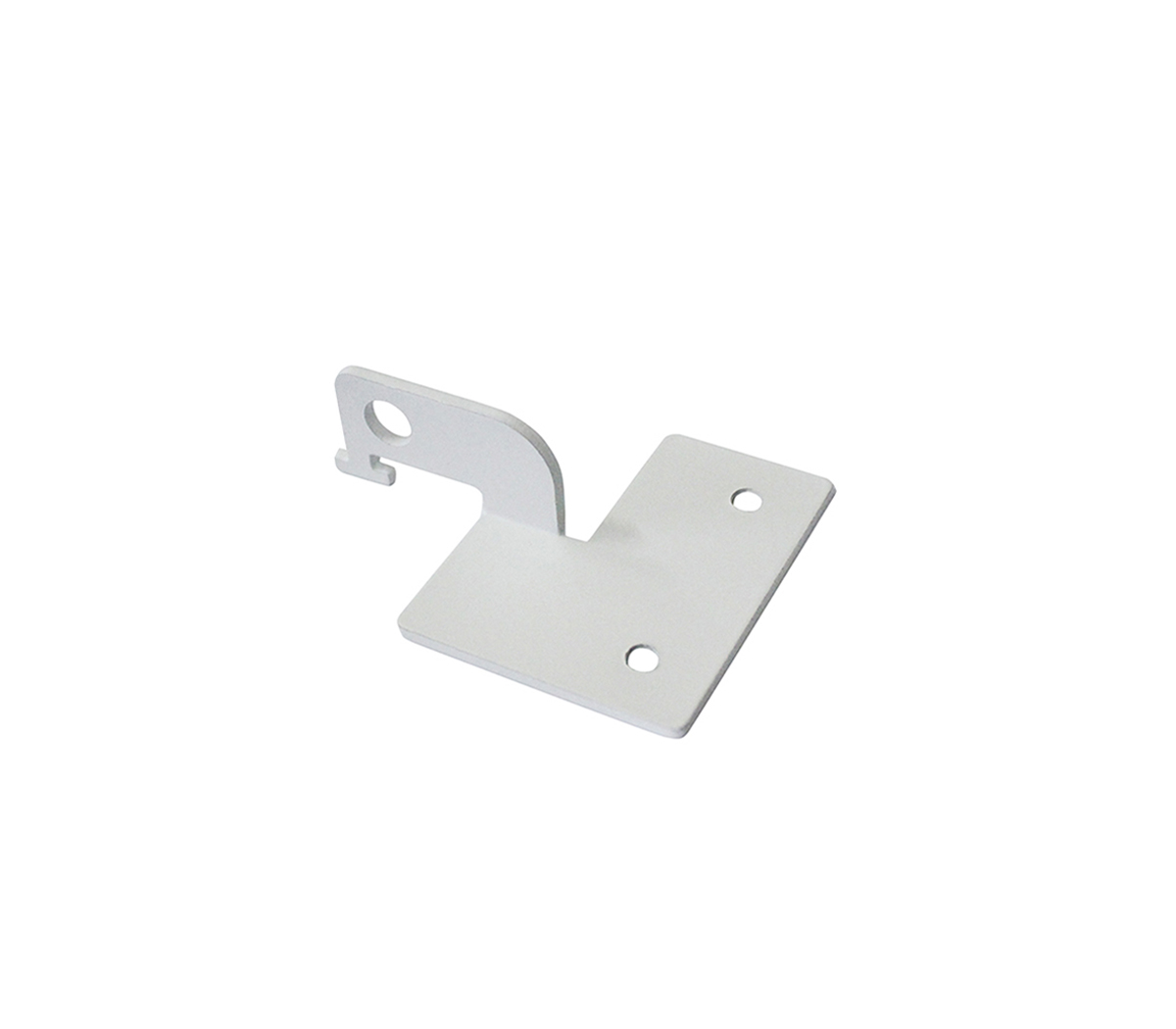

    • Hanging Brackets
  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WP5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • Model
      • 1:1
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        40"
        1015 × 1015
        1214
        80
        35
        25
        1135
        84
        73
        50"
        1270 × 1270
        1469
        80
        35
        25
        1390
        84
        73
        60"
        1520 × 1520
        1719
        80
        35
        28
        1646
        84
        73
        70"
        1780 × 1780
        1979
        80
        35
        23
        1896
        84
        73
        72"
        1830 × 1830
        2032
        80
        35
        25
        1950
        87
        81
        84"
        2030 × 2030
        2237
        80
        40
        50
        2200
        87
        81
        96"
        2340 × 2340
        2533
        50
        40
        47
        2508
        103
        92
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        40"
        815 × 610
        809
        80
        35
        25
        935
        84
        73
        72"
        1460 × 1100
        1299
        80
        35
        25
        1580
        84
        73
        80"
        1626 × 1219
        1418
        80
        35
        30
        1756
        84
        73
        84"
        1710 × 1280
        1479
        80
        35
        40
        1860
        84
        73
        100"
        2030 × 1520
        1747
        80
        60
        50
        2200
        87
        81
        120"
        2340 × 1755
        1962
        80
        40
        47
        2504
        87
        81
        133"
        2703 × 2027
        2220
        50
        40
        50
        2877
        103
        92
        150"
        2817 × 2110
        2303
        50
        40
        50
        2991
        103
        92
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        70"
        1550 × 871
        1740
        750
        35
        50
        1720
        84
        73
        73"
        1620 × 910
        1779
        750
        35
        30
        1750
        84
        73
        77"
        1704 × 958
        1777
        700
        35
        30
        1834
        84
        73
        80"
        1770 × 996
        1765
        650
        35
        28
        1896
        84
        73
        82"
        1815 × 1020
        1789
        650
        35
        50
        1985
        84
        73
        92"
        2030 × 1145
        1792
        500
        60
        50
        2200
        87
        81
        100"
        2214 × 1245
        1872
        500
        40
        50
        2384
        87
        81
        106"
        2340 × 1320
        1947
        500
        40
        47
        2504
        87
        81
        120"
        2656 × 1494
        2037
        400
        40
        50
        2830
        103
        92
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1659 × 1037
        1856
        700
        35
        30
        1789
        84
        73
        80"
        1723 × 1077
        1846
        650
        35
        50
        1896
        84
        73
        92"
        1982 × 1239
        1886
        500
        60
        50
        2152
        87
        81
        94"
        2025 × 1265
        1912
        500
        60
        50
        2195
        87
        81
        100"
        2154 × 1346
        1973
        500
        40
        50
        2324
        87
        81
        106"
        2283 × 1427
        2054
        500
        40
        50
        2453
        87
        81
