Premium Series

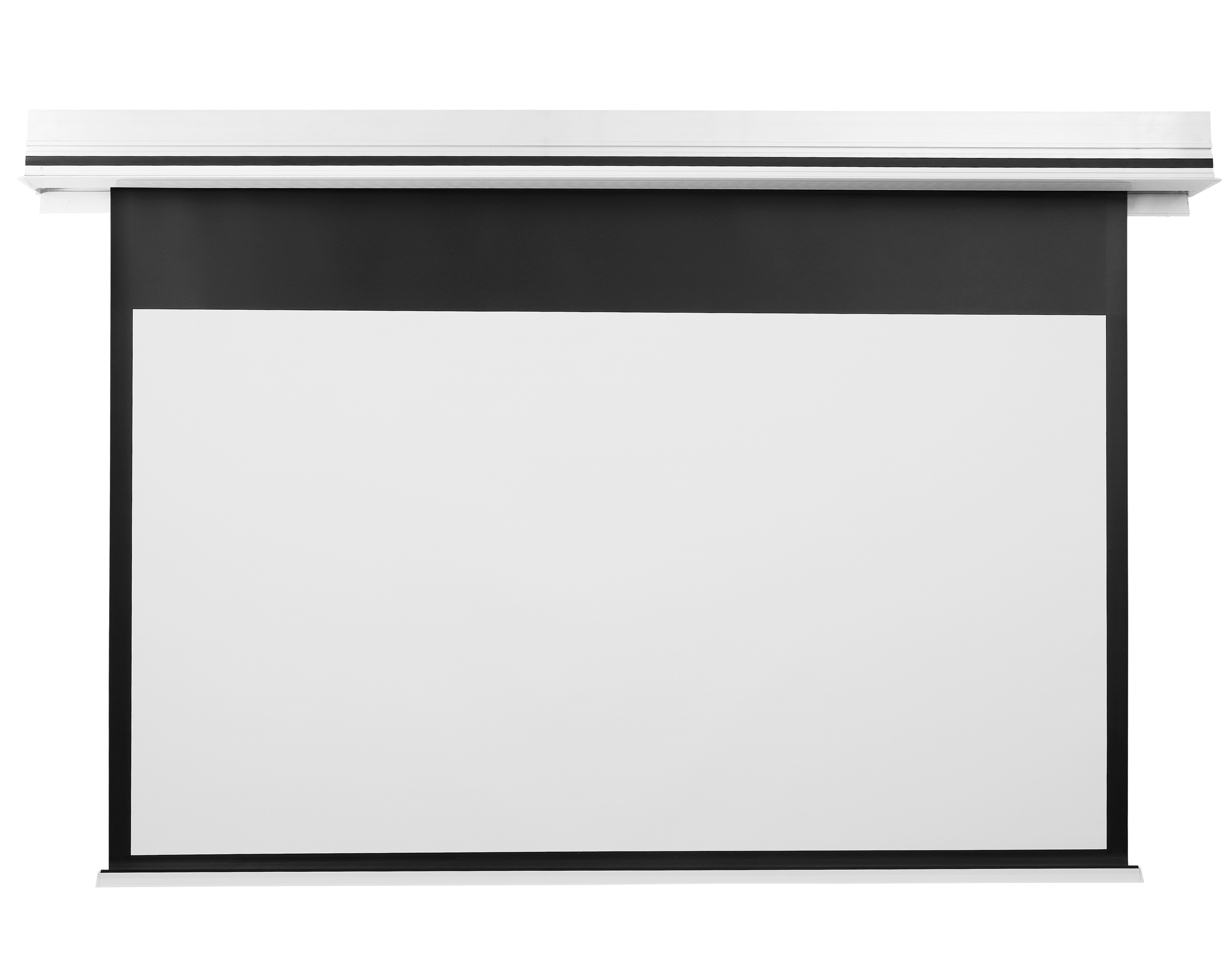

Recessed Motorized Screen

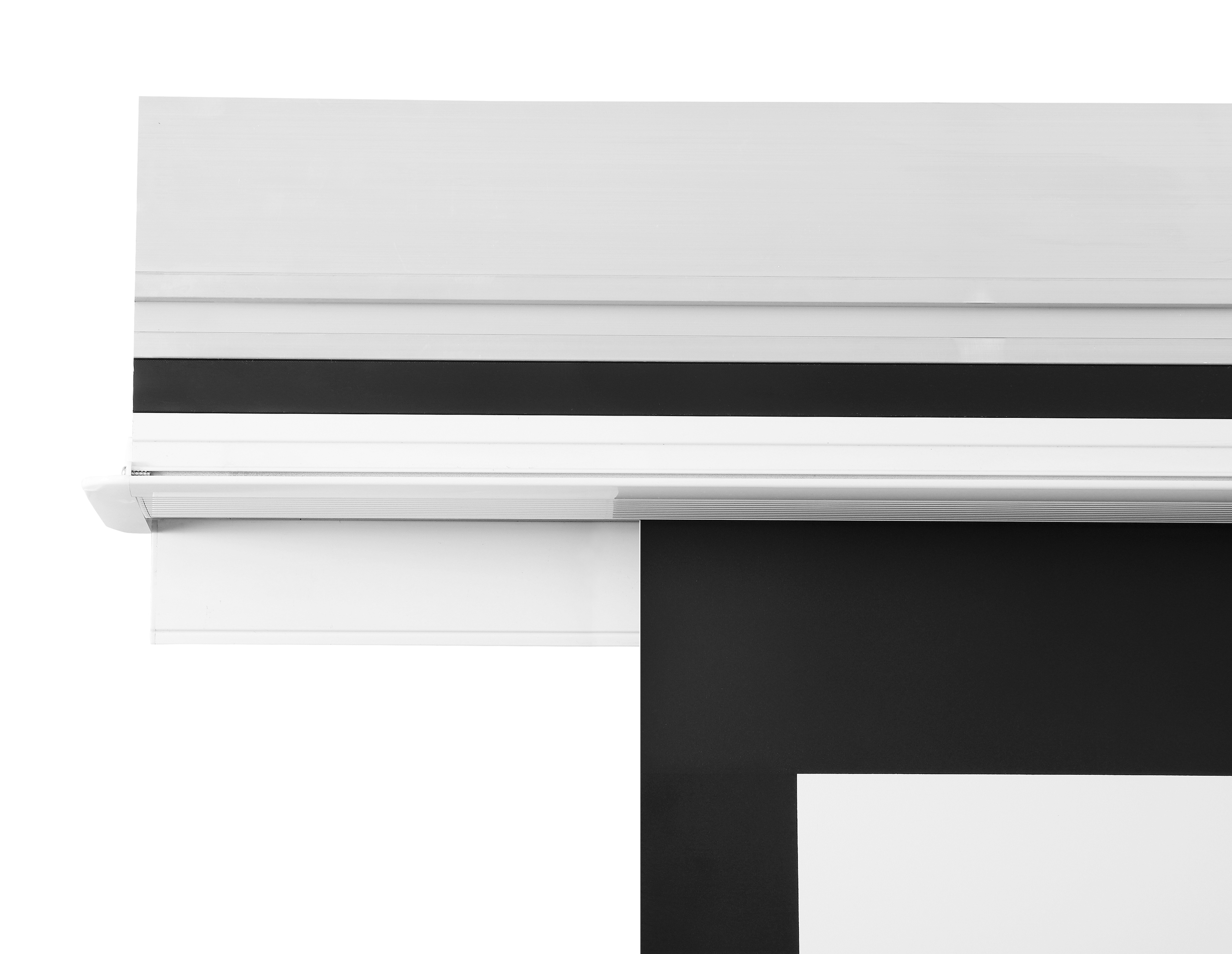

  • With a focus on the essence of industrial design, the Grandview’s Recessed Series blends itself perfectly in any in-ceiling installation. Boasting a concealed look, the screens functionality is seamlessly hidden away until use. Patented Separated Casing design reduces noise and vibration, the screen also offers a multitude of commercial grade features.


  • • Sizes: 92” – 180” diagonal
  • • Installation Options: In-Ceiling Mount
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control
  • • Installation Options: In-Ceiling Mount
  • • Colour: White
  • • Aluminum Casing
  • • Easy installation
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Standard Control Options

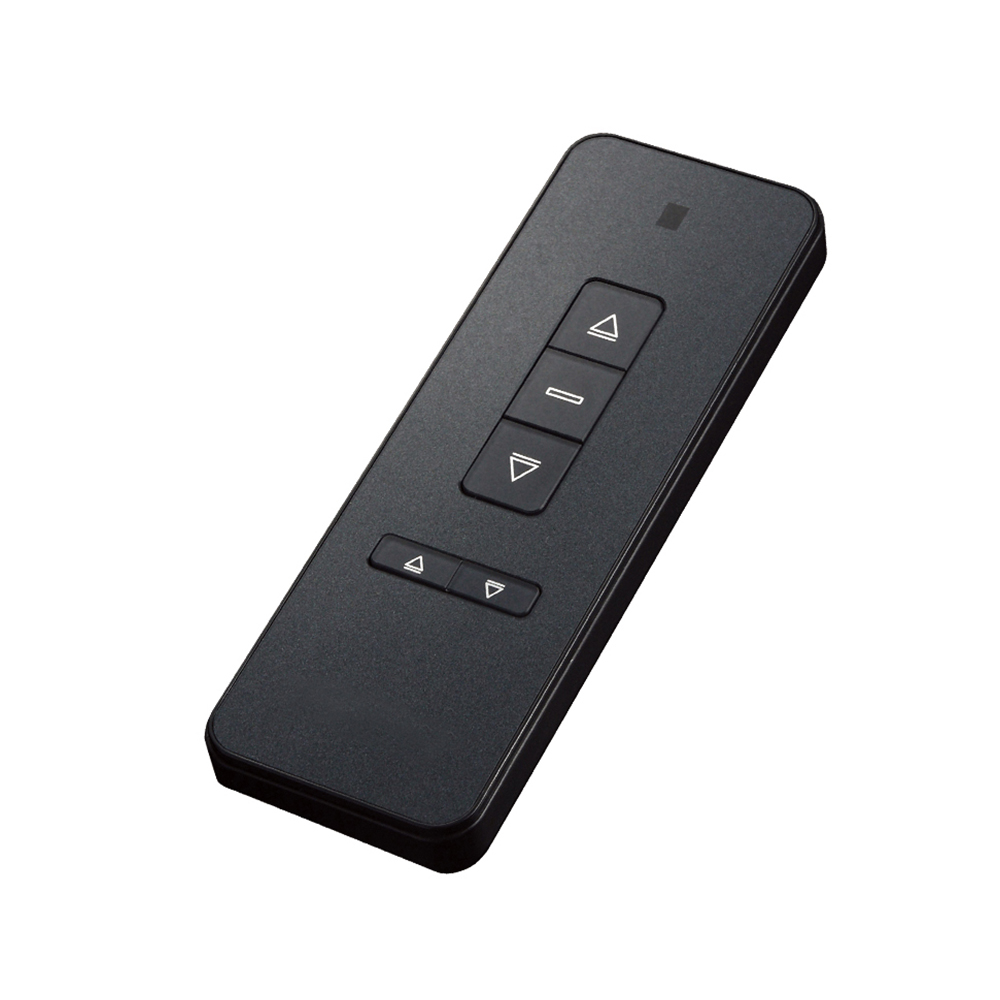

    • IR Remote Control
    • Wall Swtich

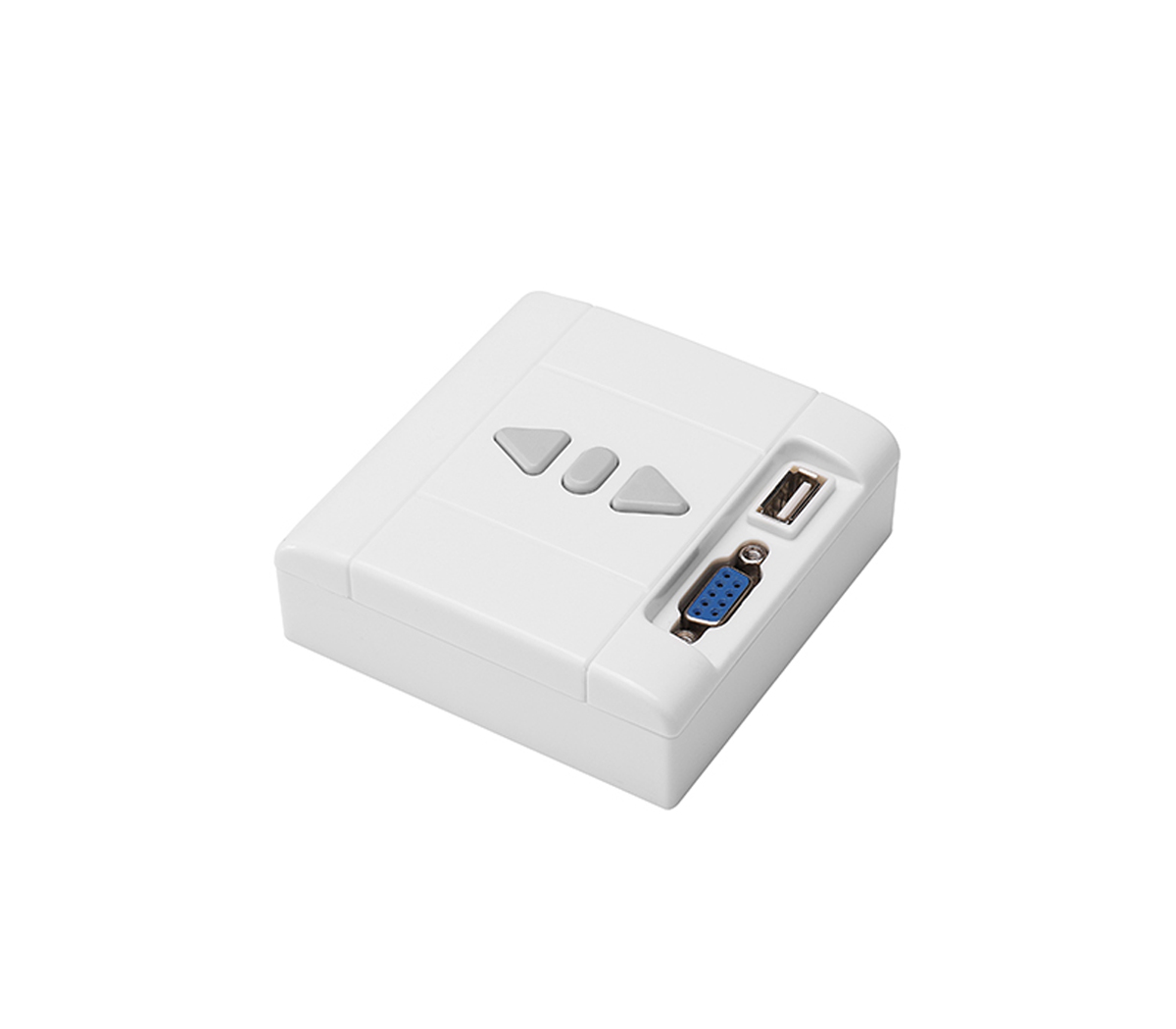

    • Smart Wall Switch
    Standard Accessories

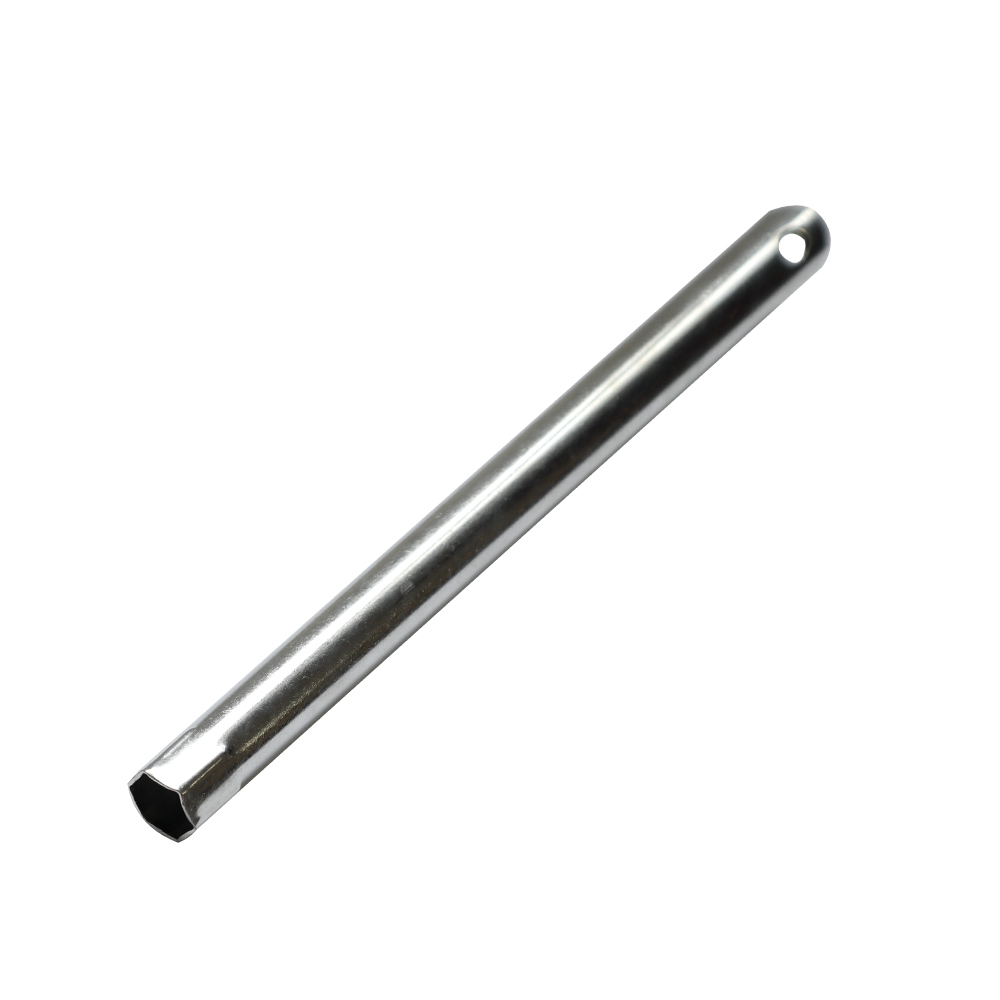

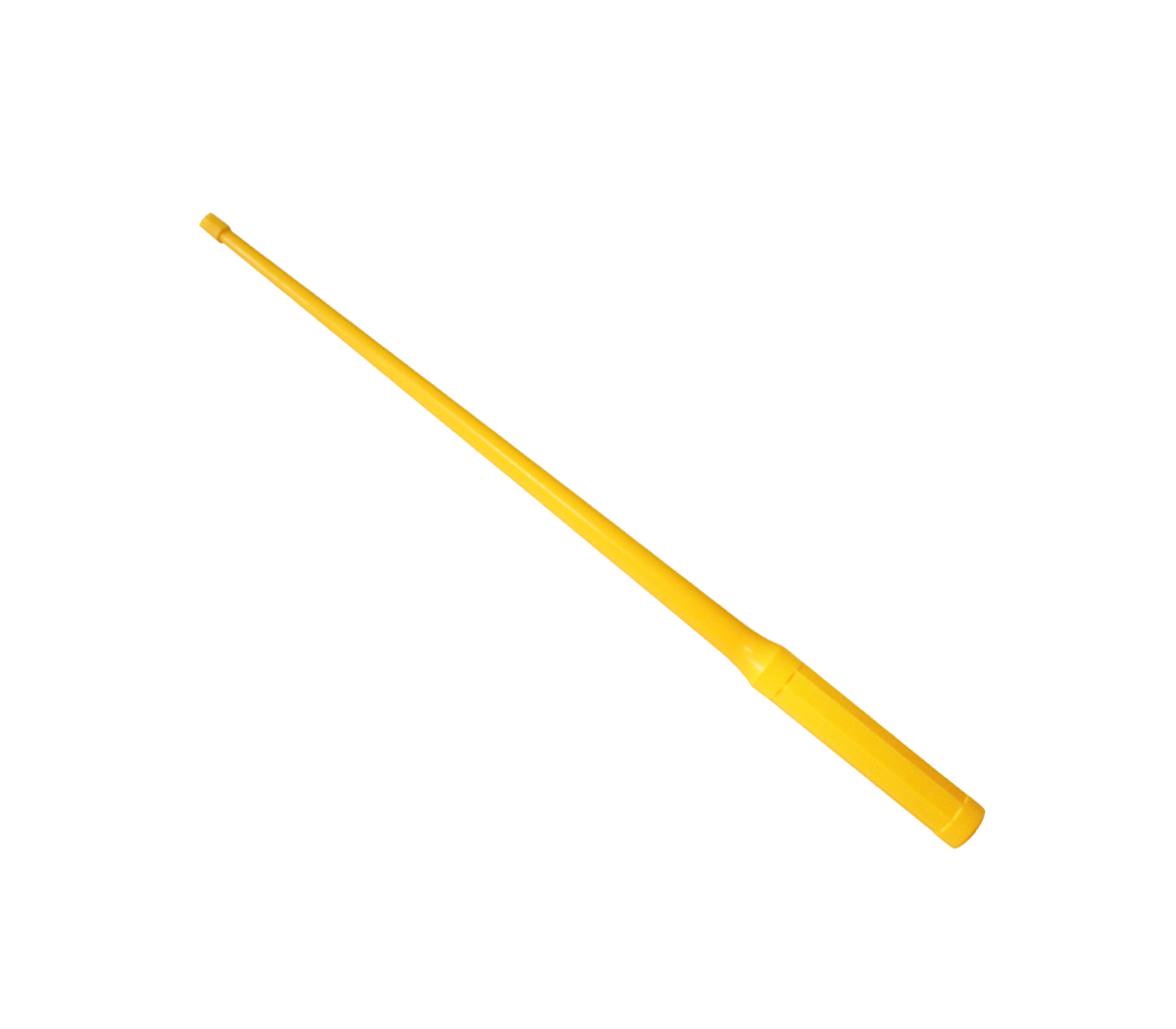

    • Limit Adjustment Tool
    External Control Options

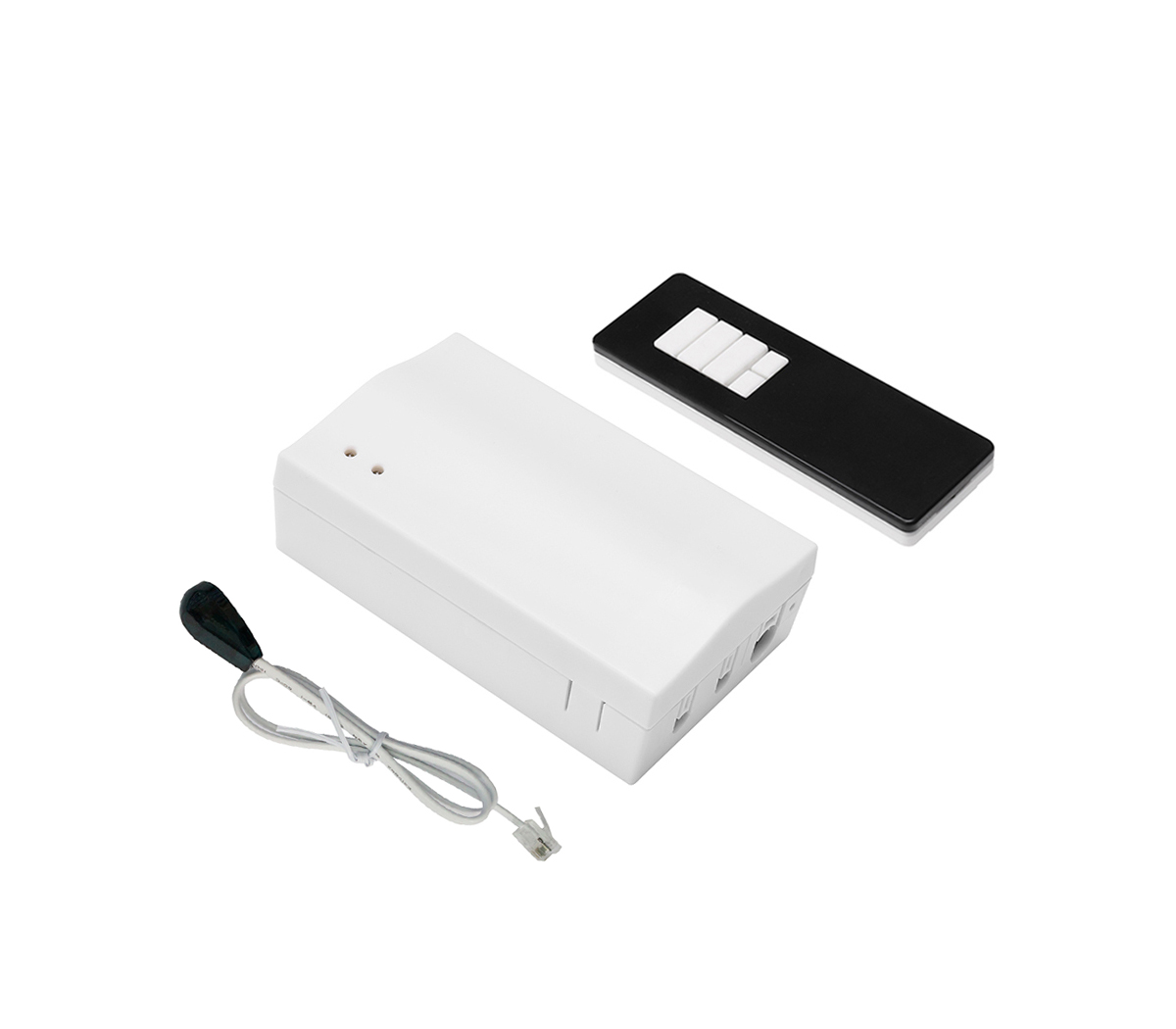

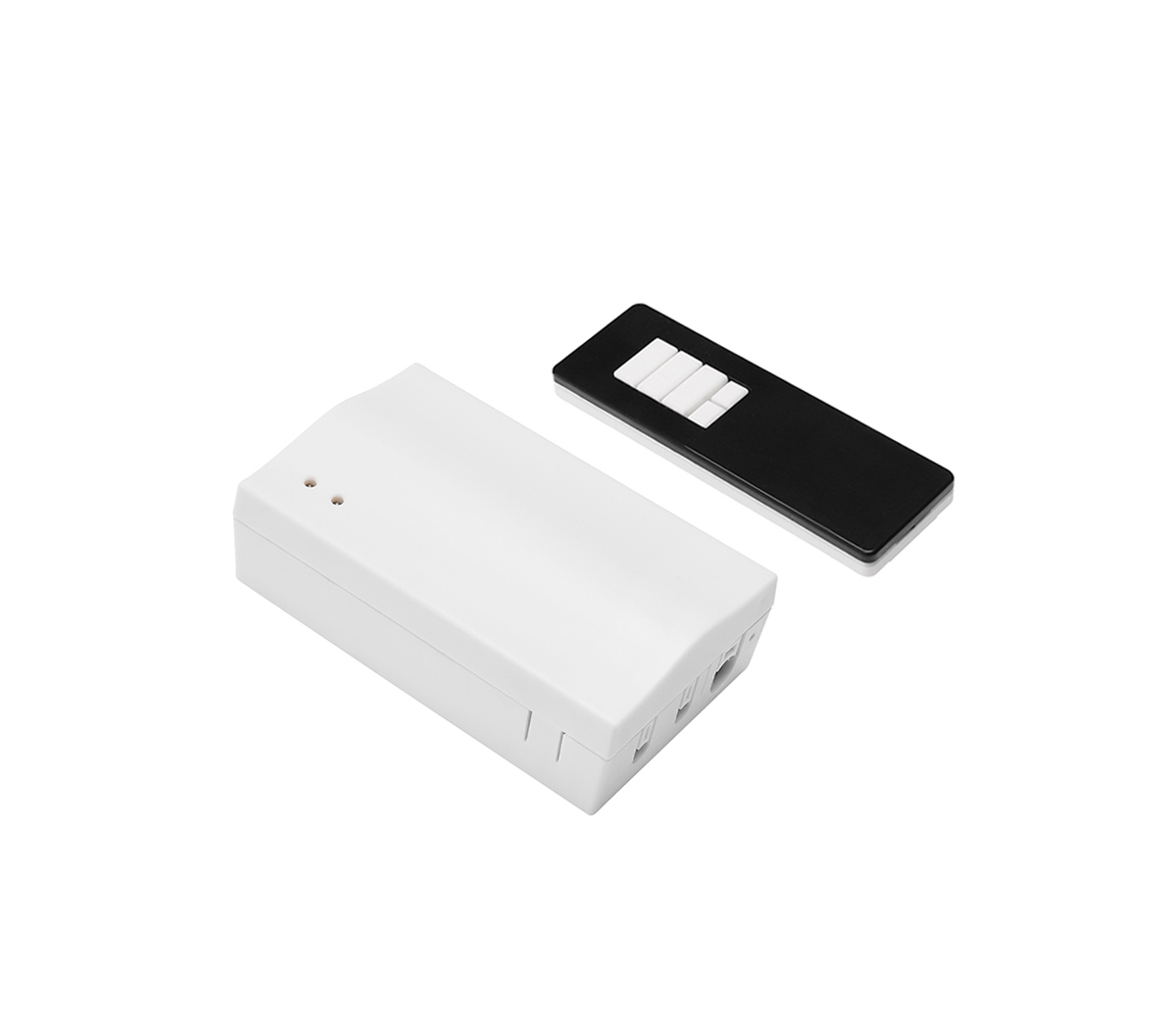

    • External RF Control System

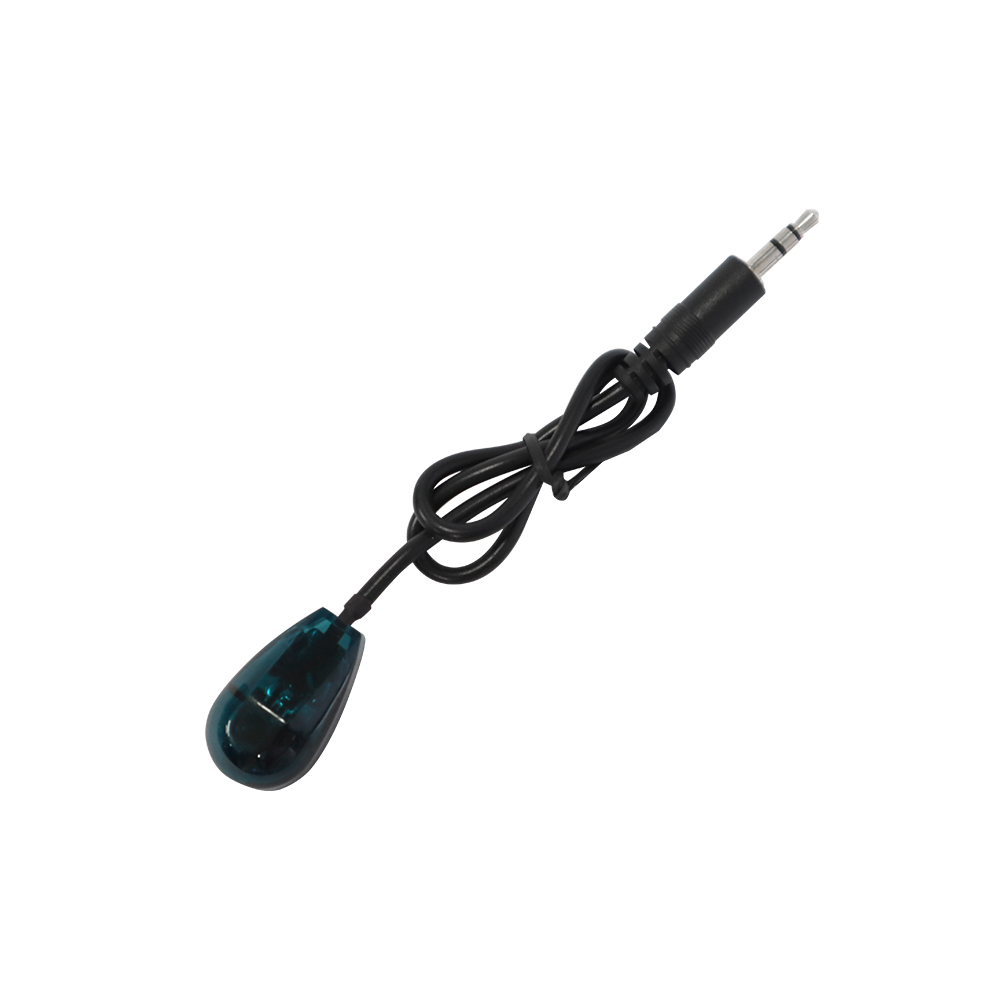

    • External IR Control System

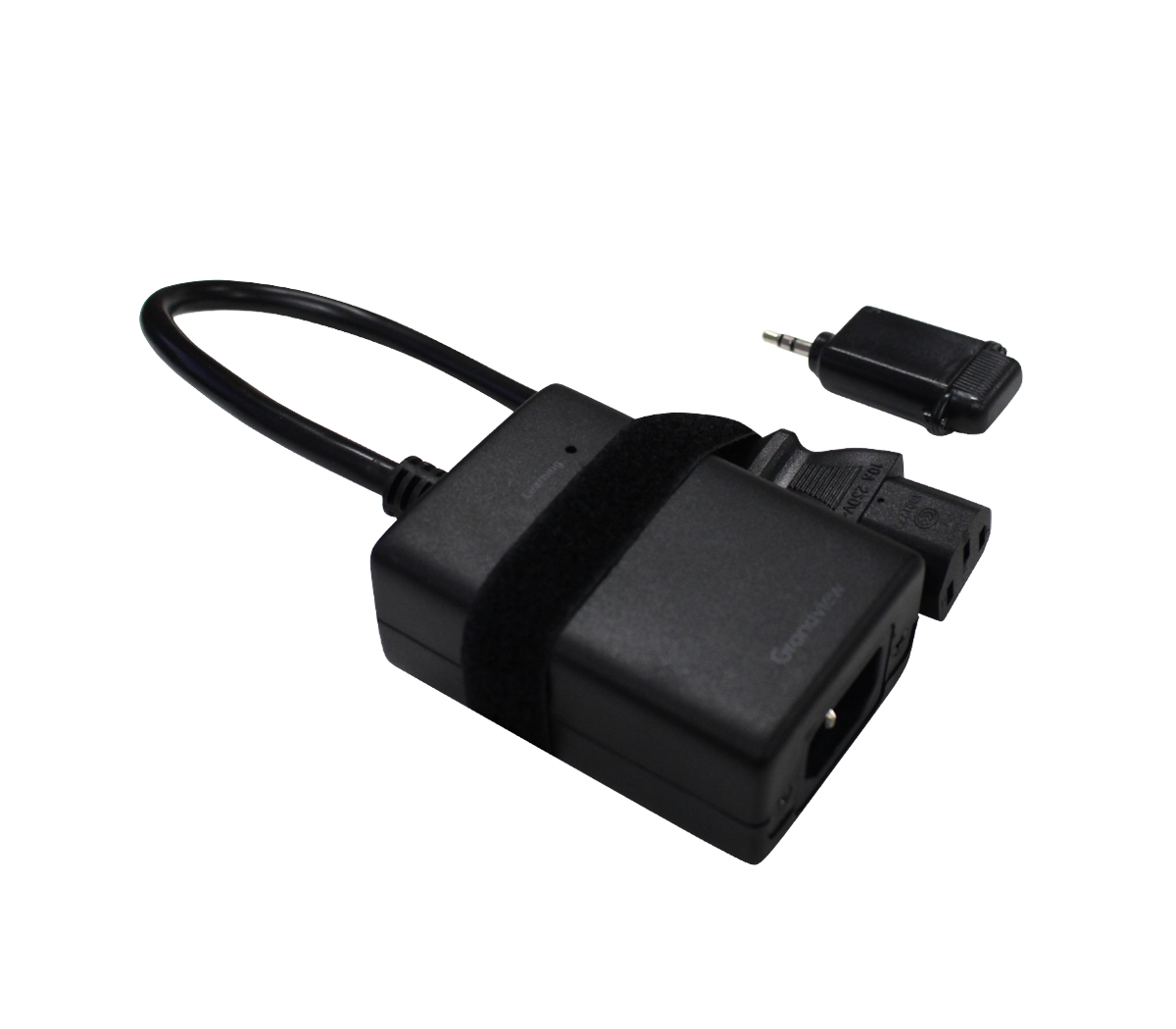

    • Power Synchro Relay

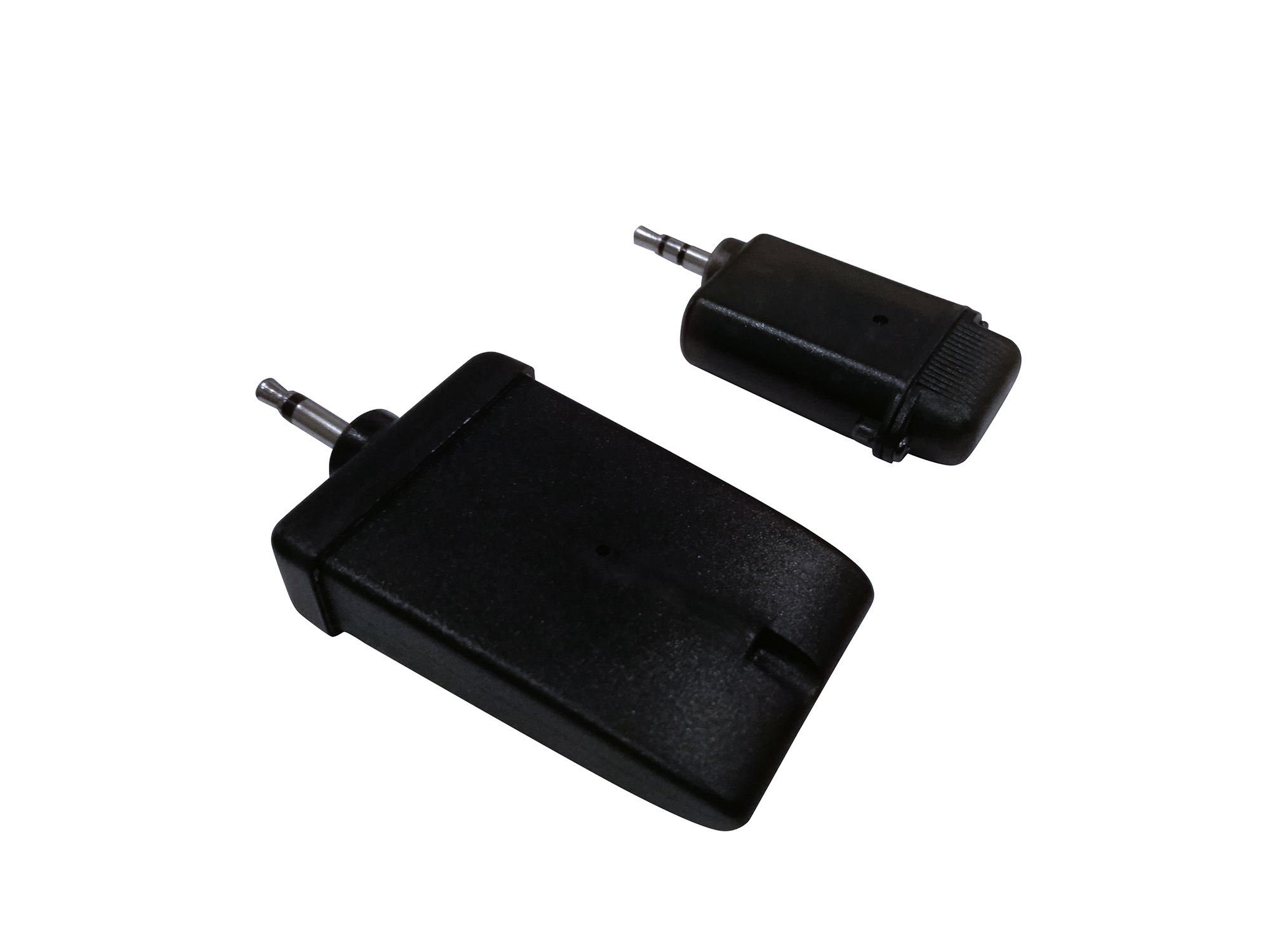

    • RF Wireless Trigger

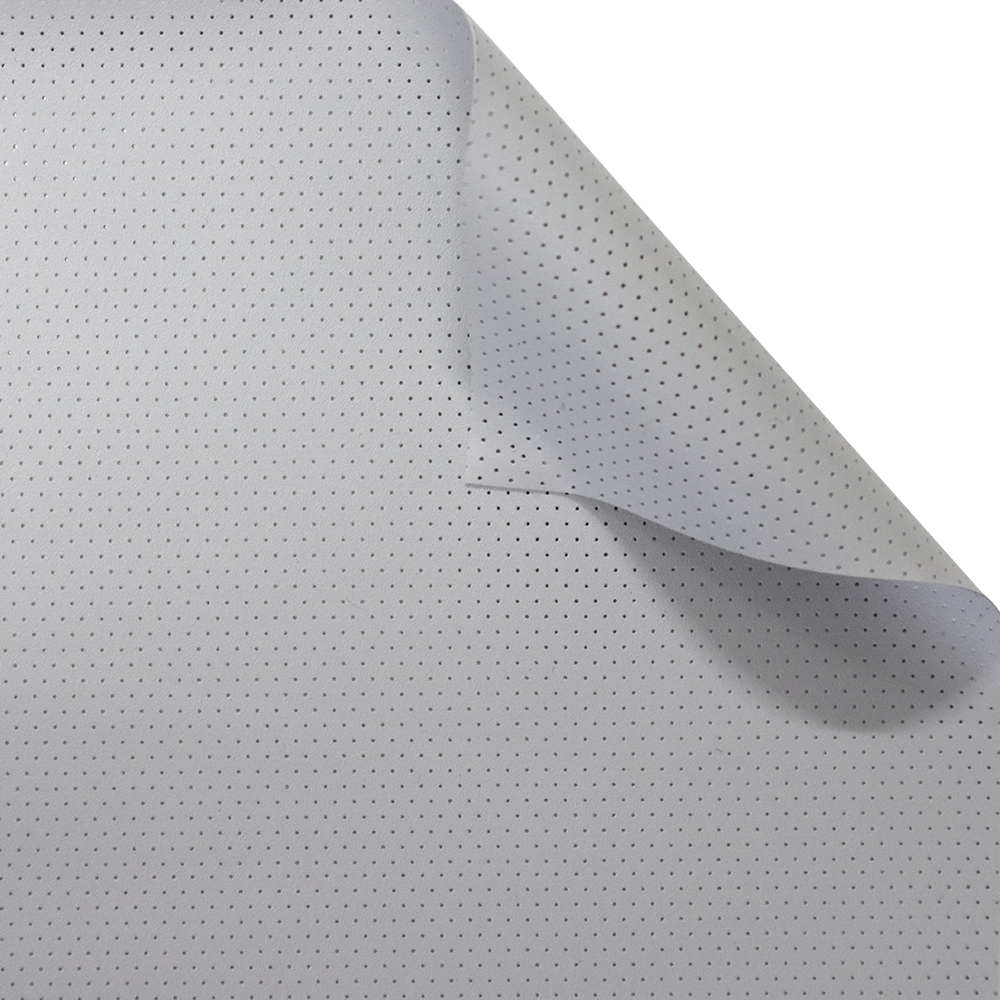

  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • I
    • II
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1707 × 1280
        2161
        670
        50
        50
        2136
        161
        170
        100"
        2032 × 1524
        2155
        420
        50
        50
        2461
        161
        170
        120"
        2438 × 1829
        2160
        120
        50
        50
        2867
        161
        170
        138"
        2804 × 2103
        2444
        100
        80
        50
        3233
        161
        170
        150"
        3048 × 2286
        2607
        80
        80
        50
        3471
        161
        170
        180"
        3658 × 2743
        3064
        80
        80
        80
        4147
        161
        170
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2037 × 1146
        2157
        800
        50
        50
        2466
        161
        170
        100"
        2214 × 1245
        2156
        700
        50
        50
        2643
        161
        170
        106"
        2346 × 1320
        2161
        630
        50
        50
        2775
        161
        170
        120"
        2656 × 1494
        2155
        450
        50
        50
        3085
        161
        170
        133"
        2944 × 1656
        2297
        400
        80
        50
        3373
        161
        170
        138"
        3048 × 1715
        2306
        350
        80
        50
        3471
        161
        170
        150"
        3320 × 1867
        2408
        300
        80
        50
        3749
        161
        170
        180"
        3985 × 2241
        2782
        300
        80
        80
        4474
        161
        170
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1982 × 1239
        2250
        800
        50
        50
        2411
        161
        170
        100"
        2154 × 1346
        2257
        700
        50
        50
        2583
        161
        170
        106"
        2283 × 1427
        2268
        630
        50
        50
        2712
        161
        170
        120"
        2585 × 1615
        2276
        450
        50
        50
        3014
        161
        170
        133"
        2865 × 1790
        2431
        400
        80
        50
        3294
        161
        170
        138"
        2972 × 1858
        2449
        350
        80
        50
        3401
        161
        170
        150"
        3231 × 2019
        2560
        300
        80
        50
        3660
        161
        170
        180"
        3877 × 2423
        2964
        300
        80
        80
        4366
        161
        170
    • Model
      • 4:3
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1707 × 1280
        2170
        670
        50
        50
        2084
        171
        171
        100"
        2032 × 1524
        2164
        420
        50
        50
        2409
        171
        171
        120"
        2438 × 1829
        2169
        120
        50
        50
        2815
        171
        171
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1860 × 1046
        2166
        900
        50
        50
        2237
        171
        171
        92"
        2037 × 1146
        2166
        800
        50
        50
        2414
        171
        171
        100"
        2214 × 1245
        2165
        700
        50
        50
        2591
        171
        171
        106"
        2347 × 1320
        2170
        630
        50
        50
        2724
        171
        171
        120"
        2657 × 1494
        2164
        450
        50
        50
        3034
        171
        171
