Premium Series

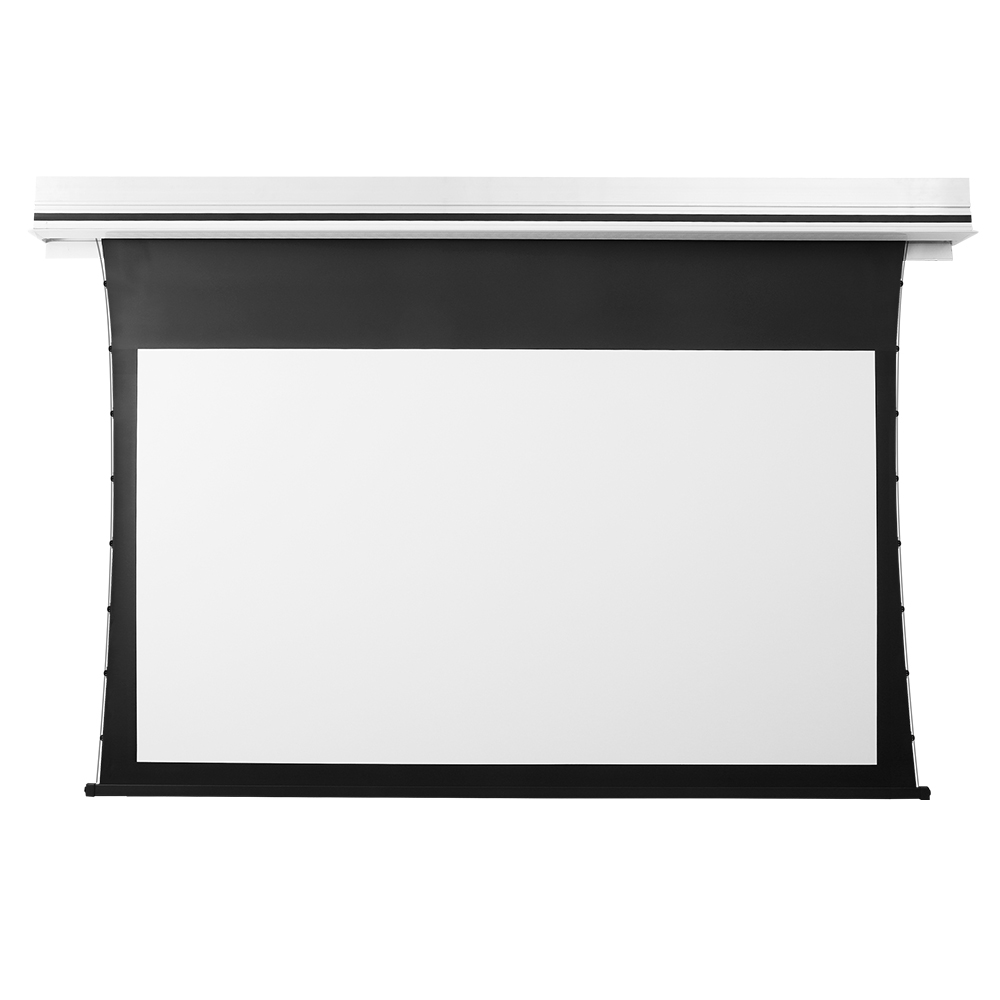

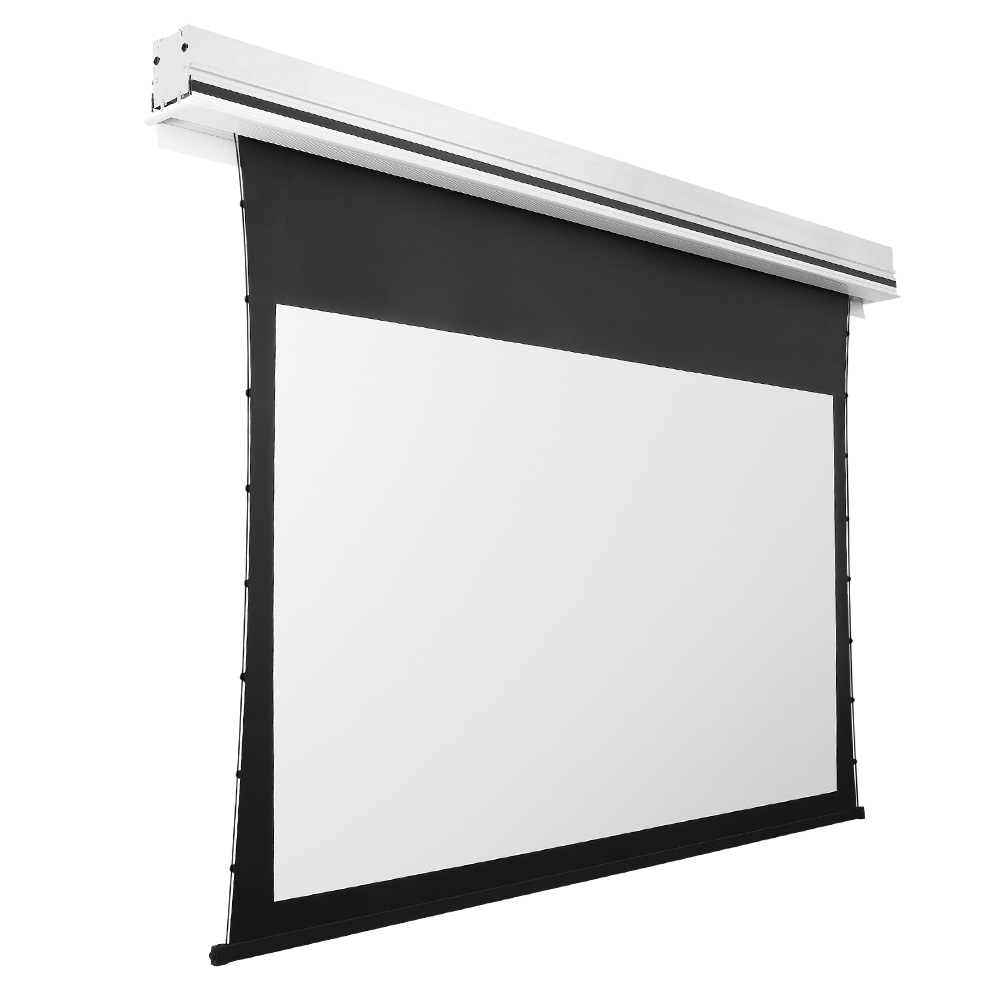

Recessed Tab-Tension Screen

  • With a focus on the essence of industrial design, the Grandview’s Recessed Series blends itself perfectly in any in-ceiling installation. Boasting a concealed look, the screens functionality is seamlessly hidden away until use. Patented Separated Casing design reduces noise and vibration, the screen also offers a multitude of commercial grade features.


  • • Sizes: 92” – 150” diagonal
  • • Installation Options: In-Ceiling Mount
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White
  • • Aluminum Casing
  • • Easy installation

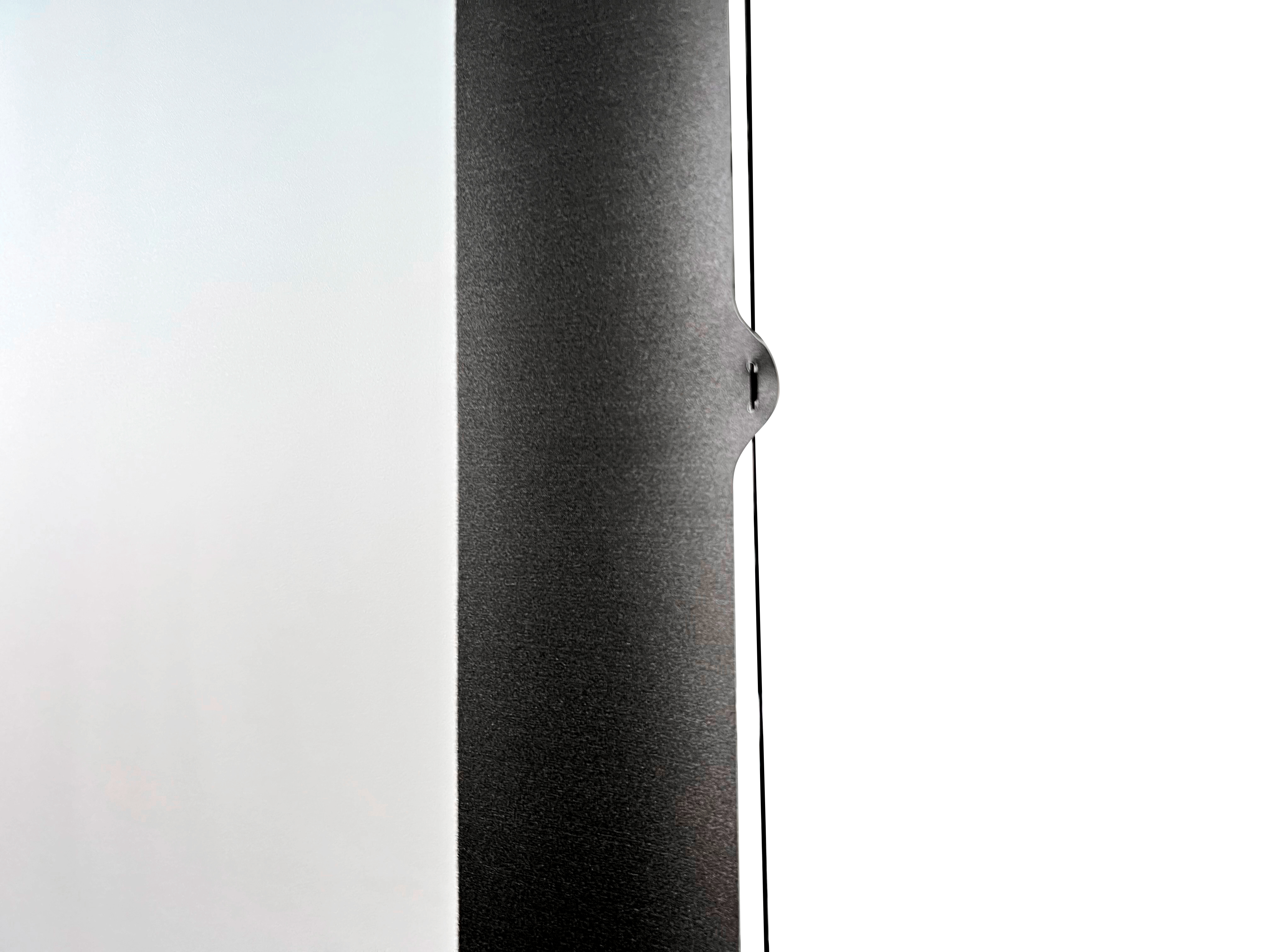

  • • Tension Adjustment Mechanism
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard Control Options

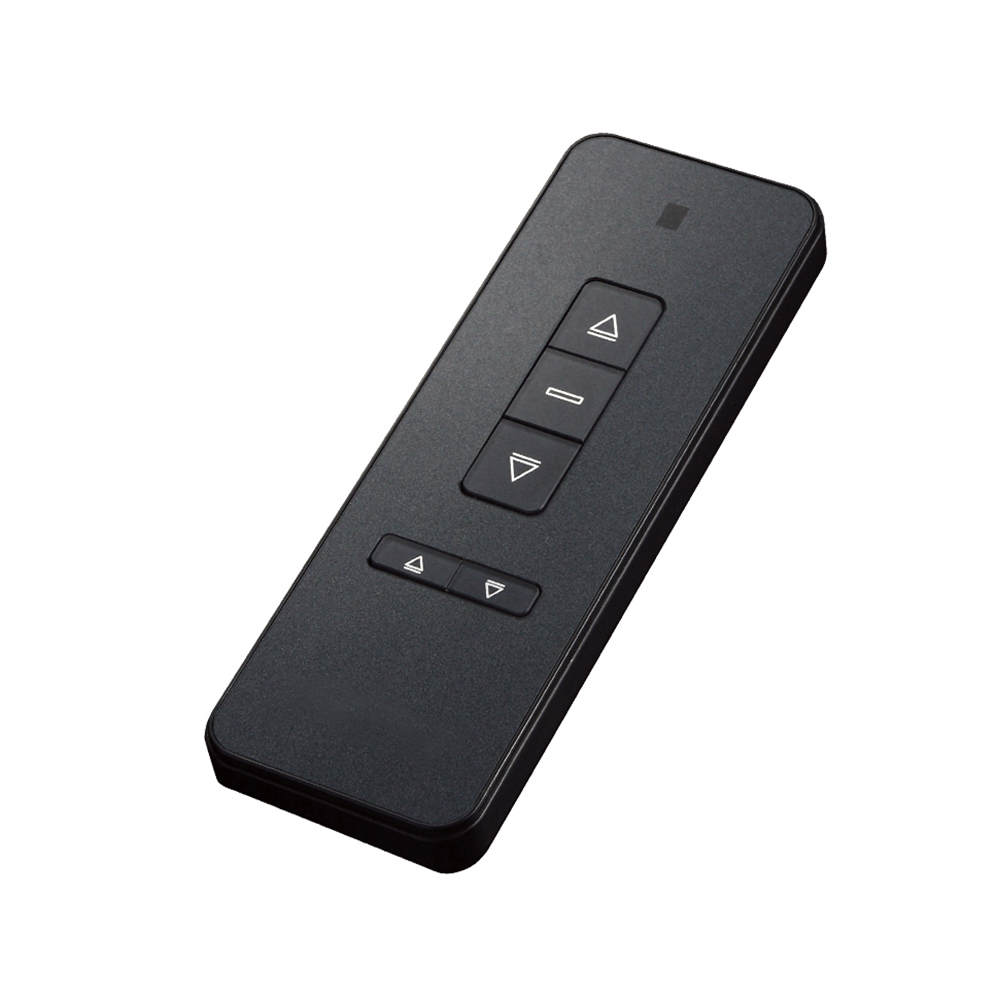

    • IR Remote Control

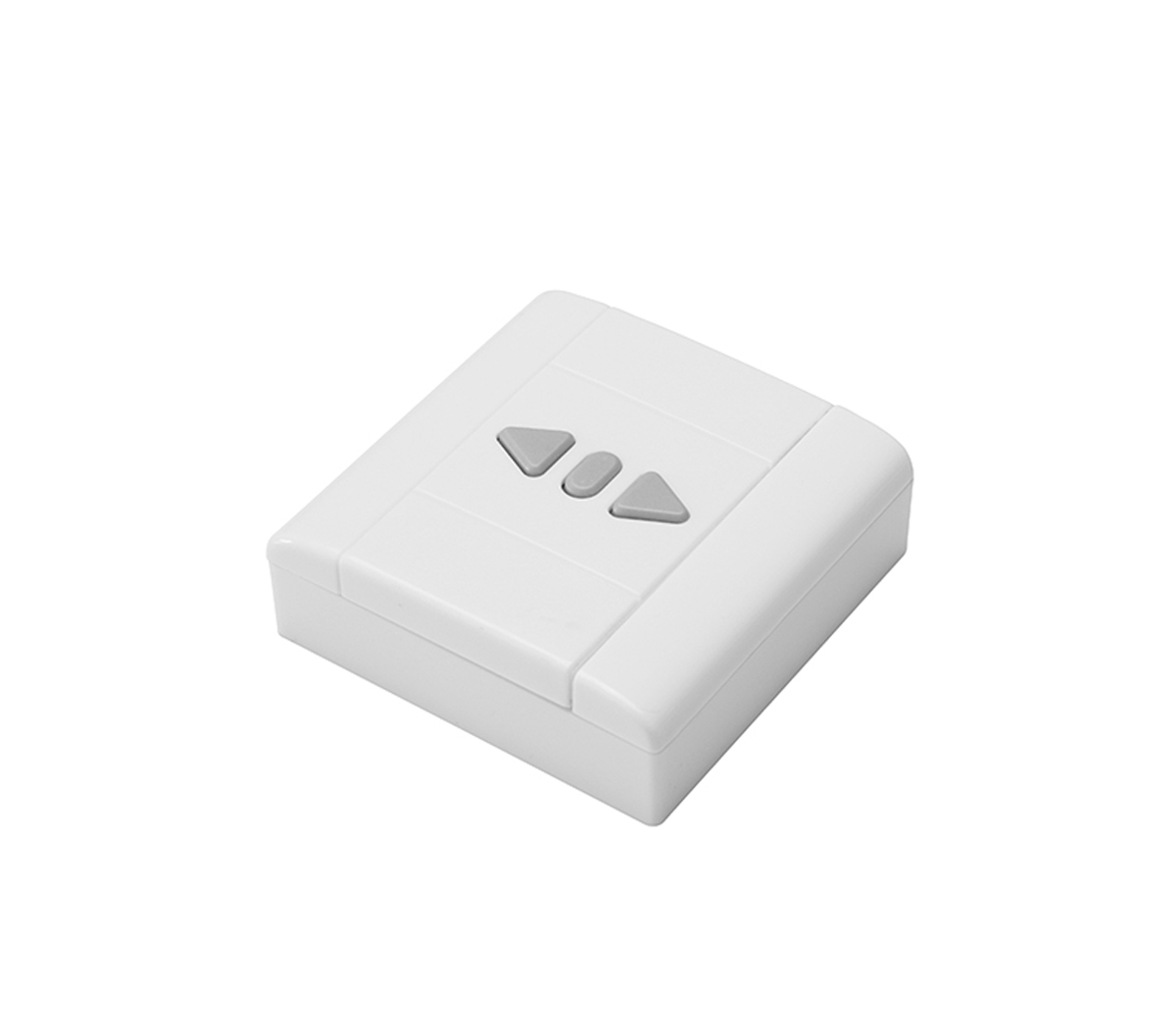

    • Wall Swtich

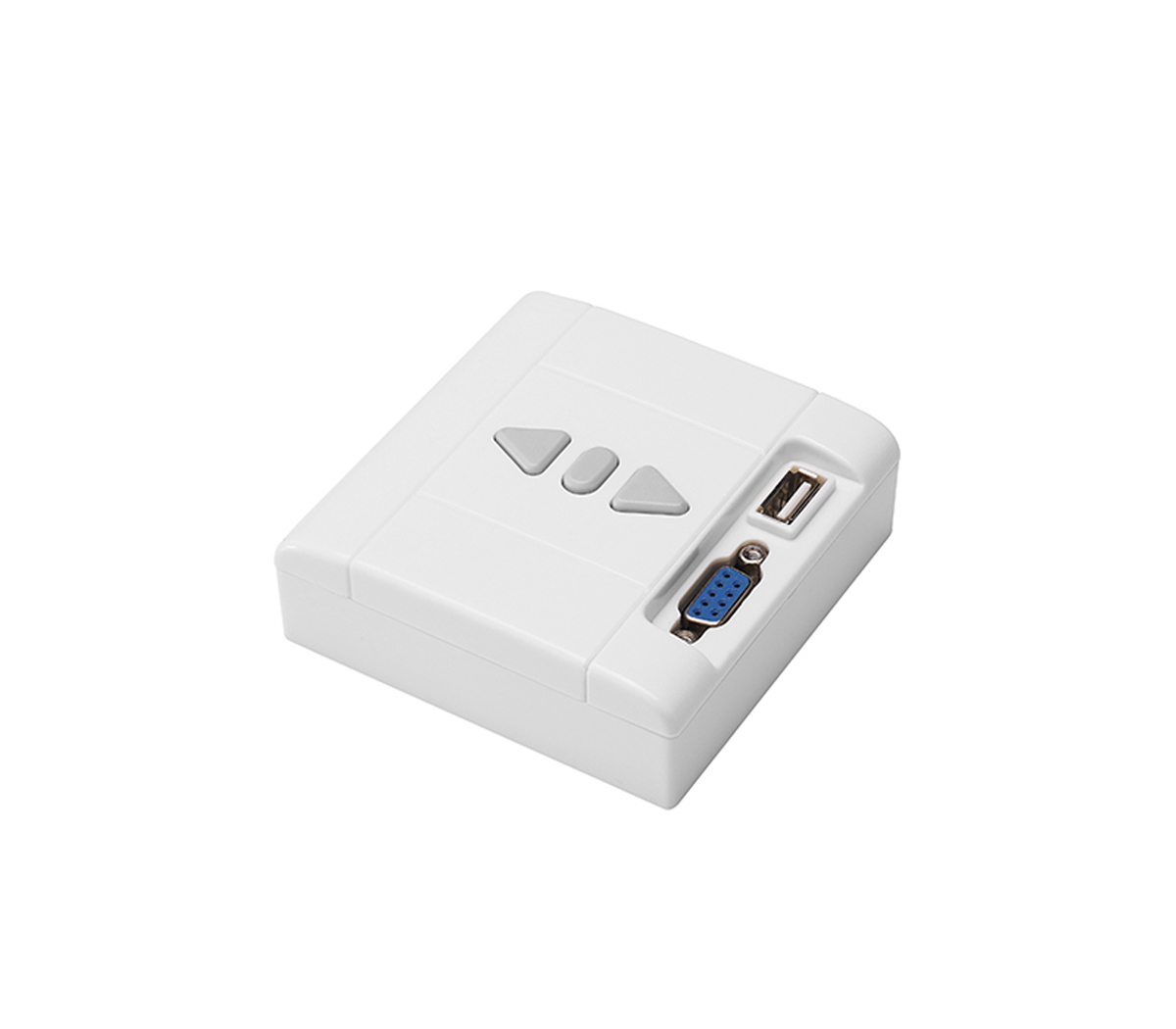

    • Smart Wall Switch
    Standard Accessories

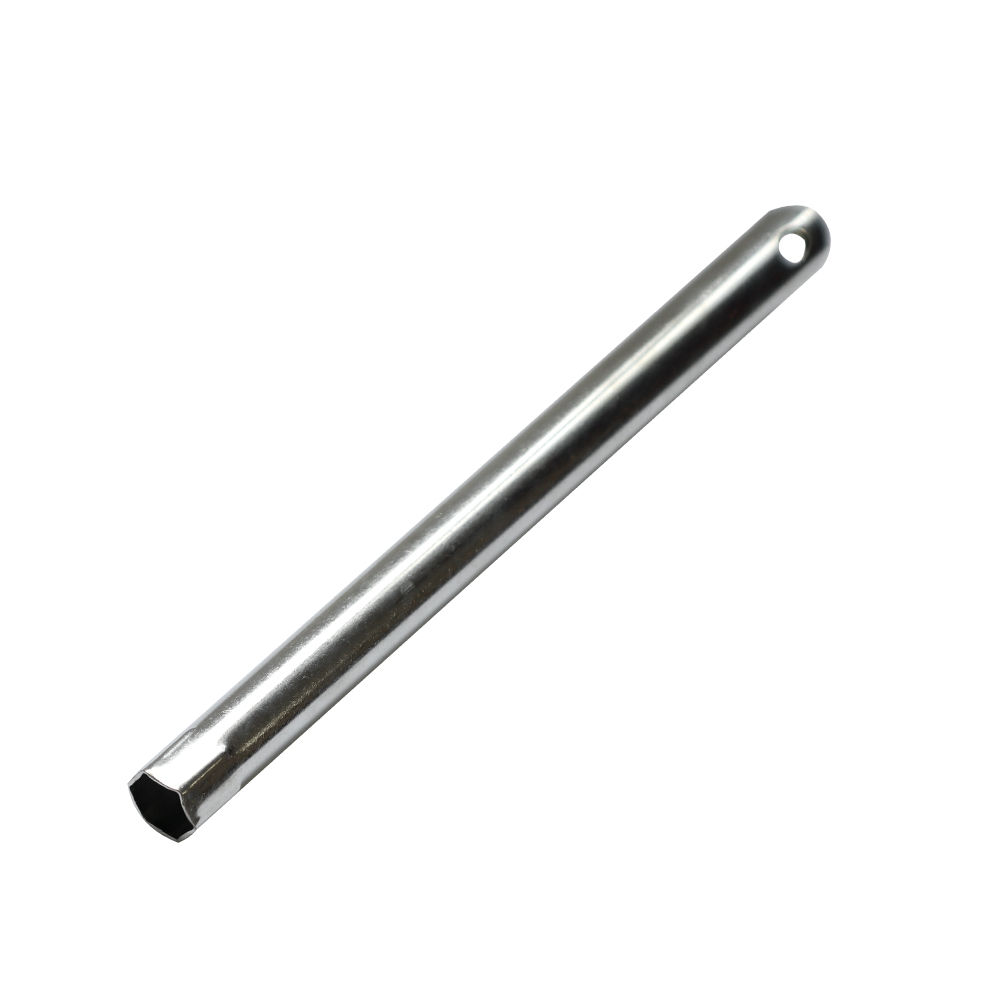

    • Limit Adjustment Tool
    External Control Options

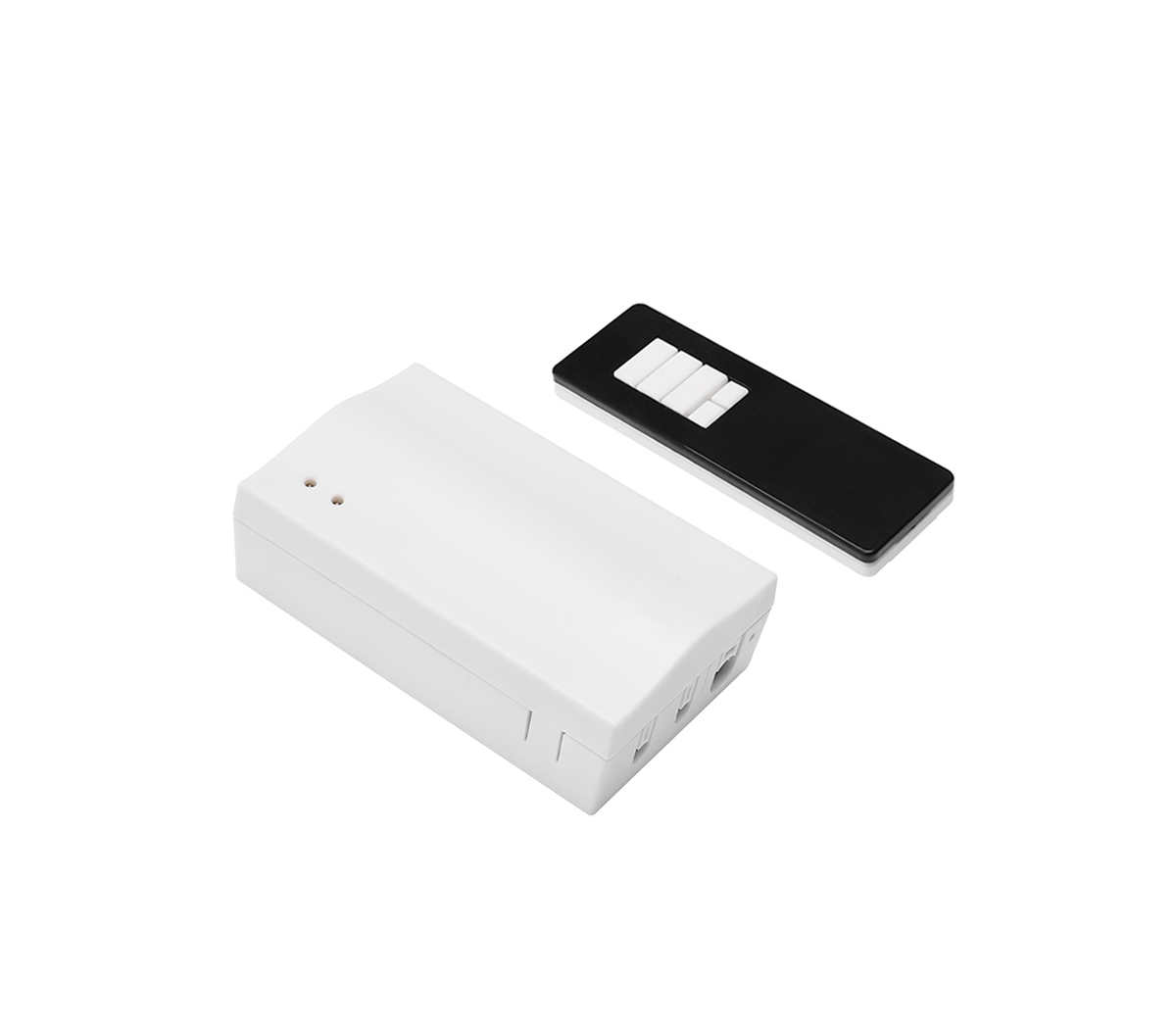

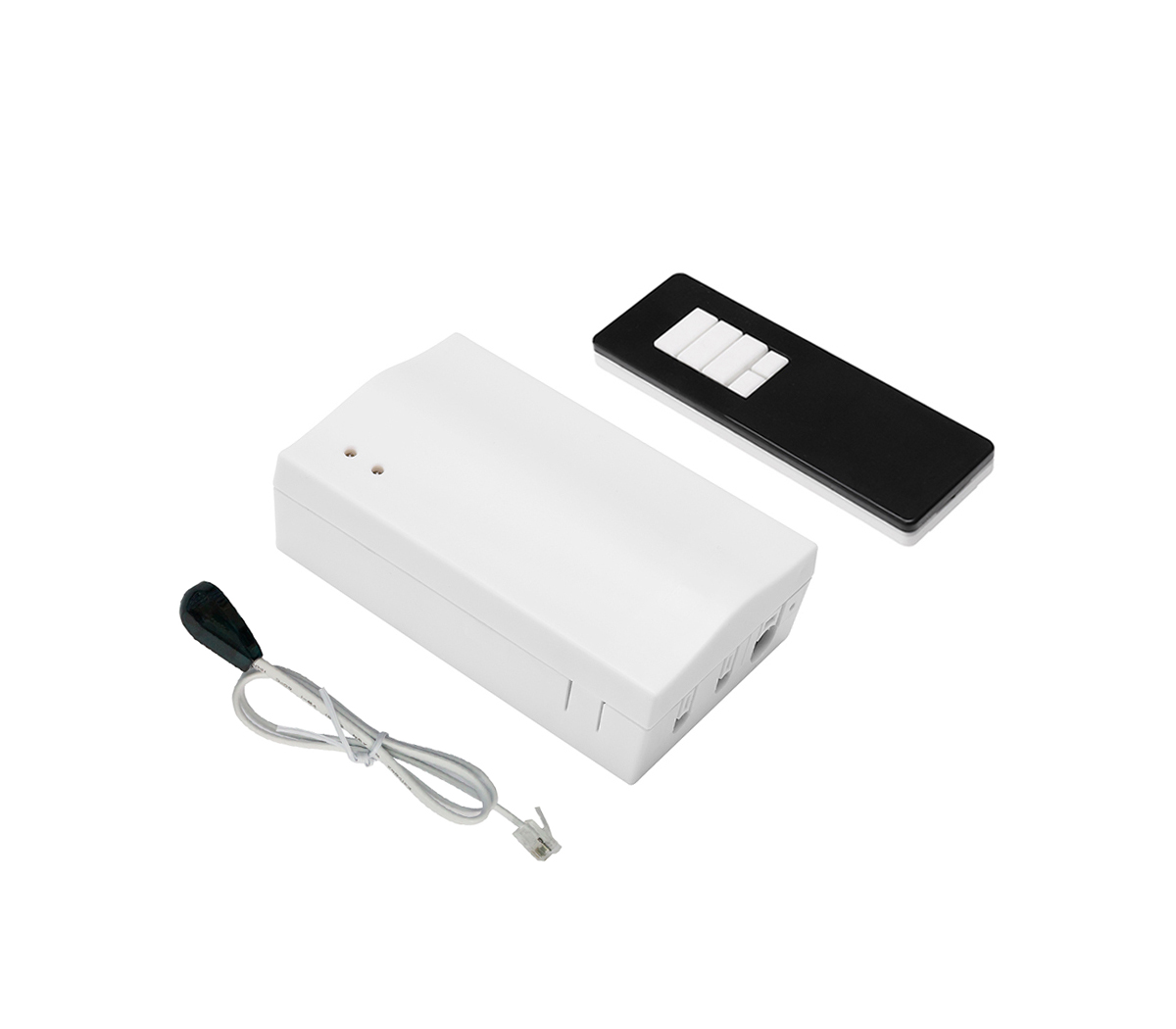

    • External RF Control System

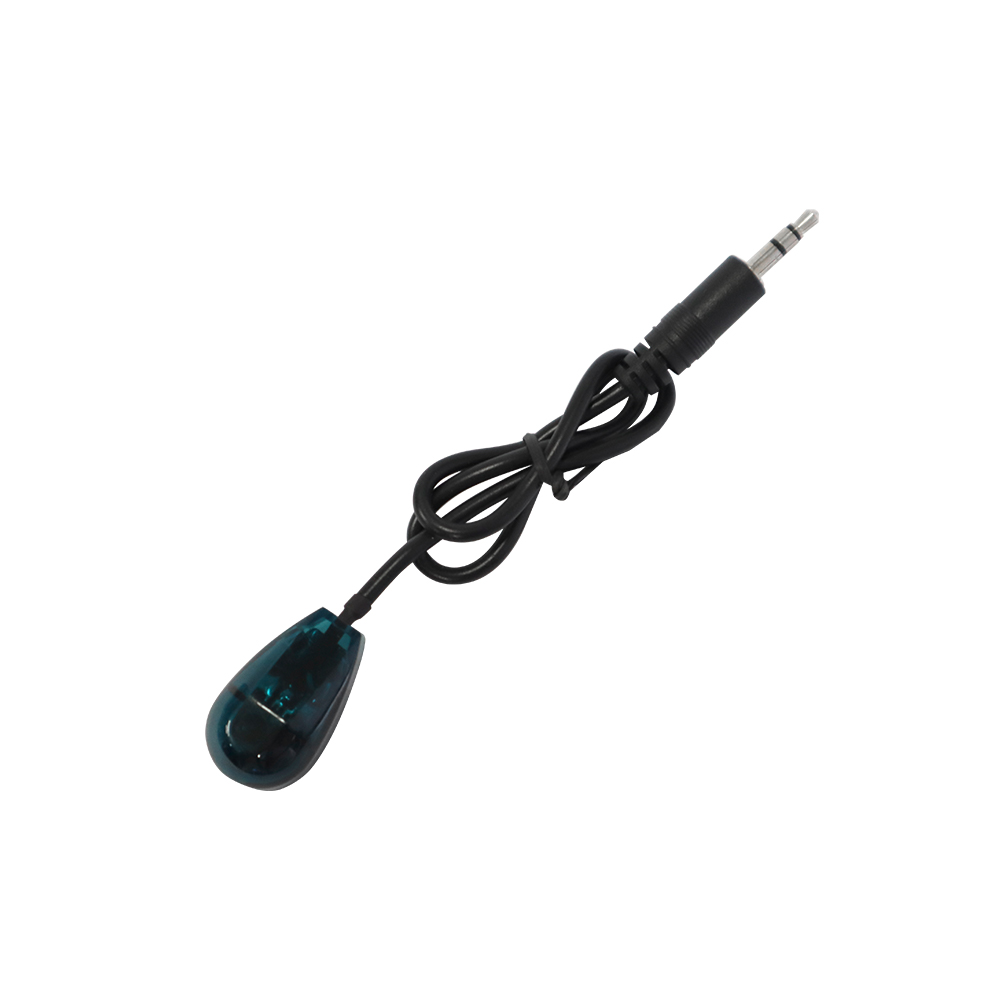

    • External IR Control System

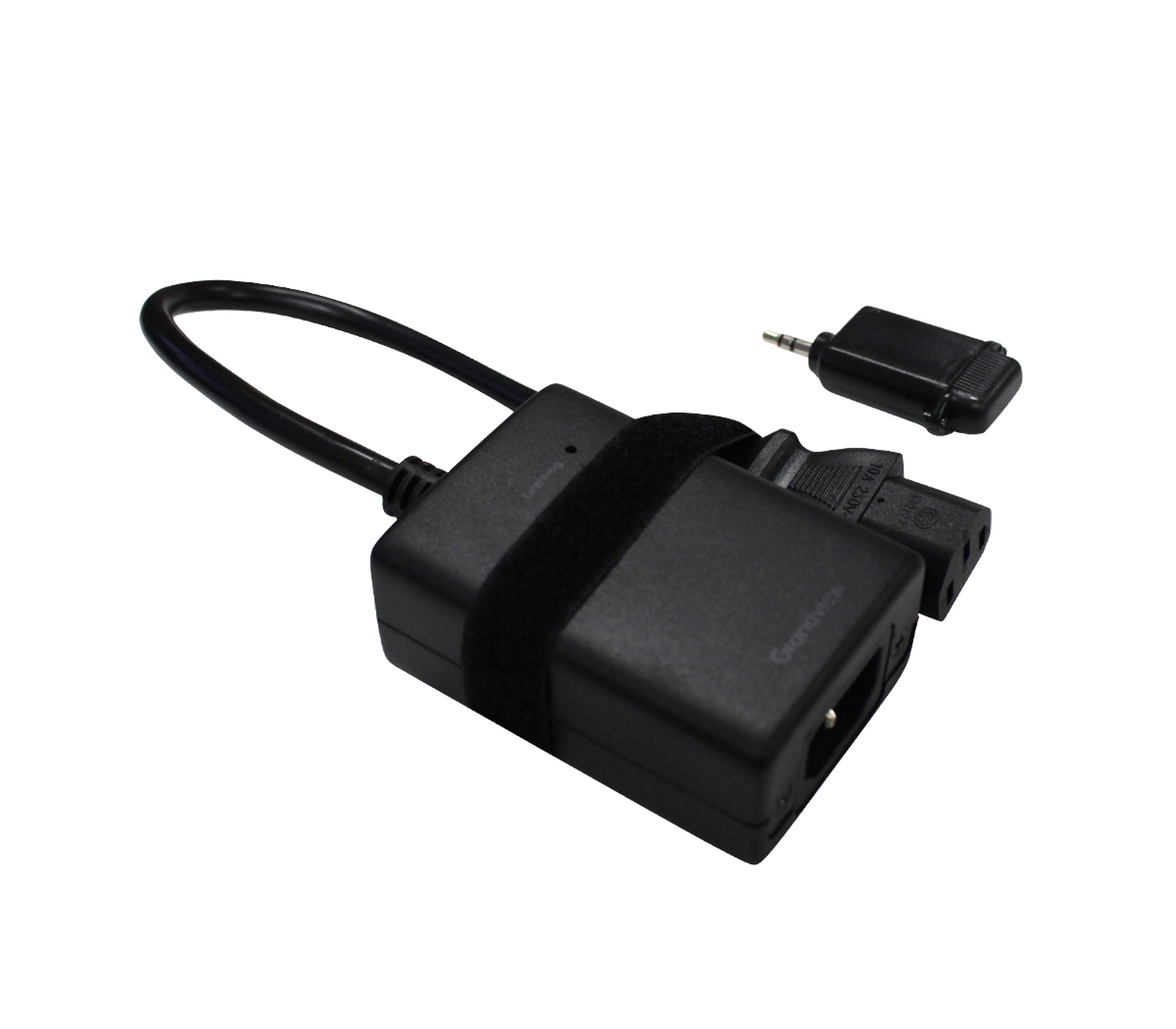

    • Power Synchro Relay

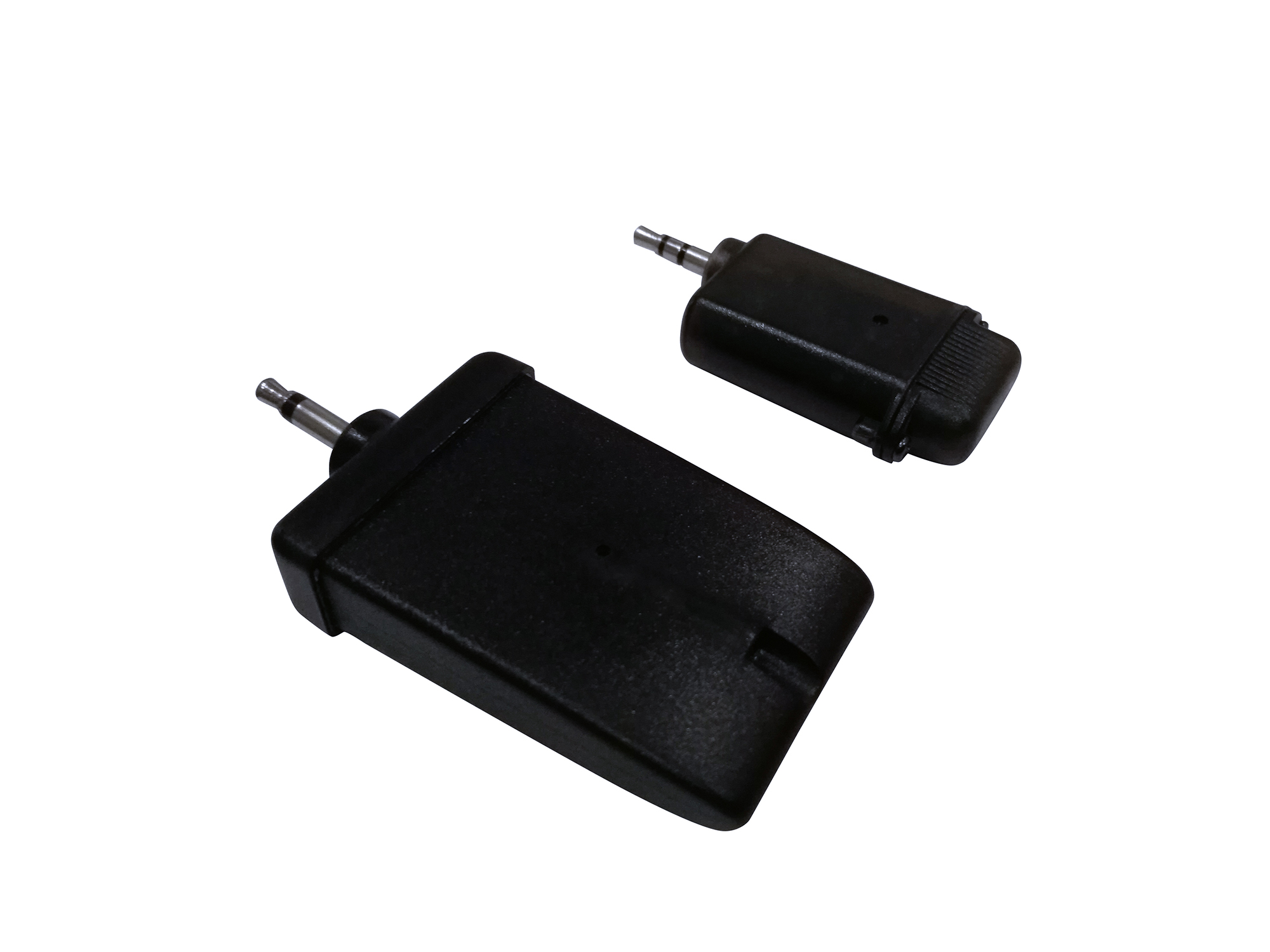

    • RF Wireless Trigger
  • Fabrics
    • UHD130
      • Viewing
        Angle
        130°
      • Gain
        1.3
    • WW3
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WB5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GG3
      • Viewing
        Angle
        160°
      • Gain
        0.8
    • DY2
      • Viewing
        Angle
        45°
      • Gain
        2.0
  • Specs
    • I
    • II
    • Model
      • 4:3
      • 16:9
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1707 × 1280
        2209
        665
        65
        80
        2326
        170
        130
        100"
        2032 × 1524
        2208
        420
        65
        80
        2651
        170
        130
        120"
        2438 × 1829
        2493
        400
        65
        80
        3057
        170
        130
        138"
        2804 × 2103
        2767
        400
        65
        80
        3423
        170
        130
        150"
        3048 × 2286
        2950
        400
        65
        80
        3667
        170
        130
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1705 × 959
        2208
        985
        65
        80
        2324
        170
        130
        80"
        1771 × 996
        2210
        950
        65
        80
        2390
        170
        130
        92"
        2037 × 1146
        2210
        800
        65
        80
        2656
        170
        130
        100"
        2214 × 1245
        2209
        700
        65
        80
        2833
        170
        130
        106"
        2347 × 1320
        2209
        625
        65
        80
        2966
        170
        130
        120"
        2657 × 1494
        2208
        450
        65
        80
        3276
        170
        130
        150"
        3321 × 1868
        2532
        400
        65
        80
        3940
        170
        130
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        100"
        2337 × 995
        2214
        955
        65
        80
        2956
        170
        130
        110"
        2571 × 1094
        2213
        855
        65
        80
        3190
        170
        130
        120"
        2805 × 1193
        2212
        755
        65
        80
        3424
        170
        130
        130"
        3038 × 1293
        2212
        655
        65
        80
        3657
        170
        130
        140"
        3272 × 1392
        2211
        555
        65
        80
        3891
        170
        130
    • Model
      • 4:3
      • 16:9
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        72"
        1463 × 1097
        2230
        850
        65
        80
        2082
        170
        130
        84"
        1707 × 1280
        2228
        665
        65
        80
        2326
        170
        130
        100"
        2032 × 1524
        2227
        420
        65
        80
        2651
        170
        130
        120"
        2438 × 1829
        2512
        400
        65
        80
        3057
        170
        130
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1705 × 959
        2227
        985
        65
        80
        2324
        170
        130
        80"
        1771 × 996
        2229
        950
        65
        80
        2390
        170
        130
        92"
        2037 × 1146
        2229
        800
        65
        80
        2656
        170
        130
        100"
        2214 × 1245
        2228
        700
        65
        80
        2833
        170
        130
        106"
        2347 × 1320
        2228
        625
        65
        80
        2966
        170
        130
        110"
        2438 × 1371
        2229
        575
        65
        80
        3057
        170
        130
        120"
        2657 × 1494
        2227
        450
        65
        80
        3276
        170
        130
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        100"
        2337 × 995
        2233
        955
        65
        80
        2956
        170
        130
        110"
        2571 × 1094
        2232
        855
        65
        80
        3190
        170
        130
        120"
        2805 × 1193
        2231
        755
        65
        80
        3424
        170
        130
        130"
        3038 × 1293
        2231
        655
        65
        80
        3657
        170
        130
        140"
        3272 × 1392
        2230
        555
        65
        80
        3891
        170
        130
